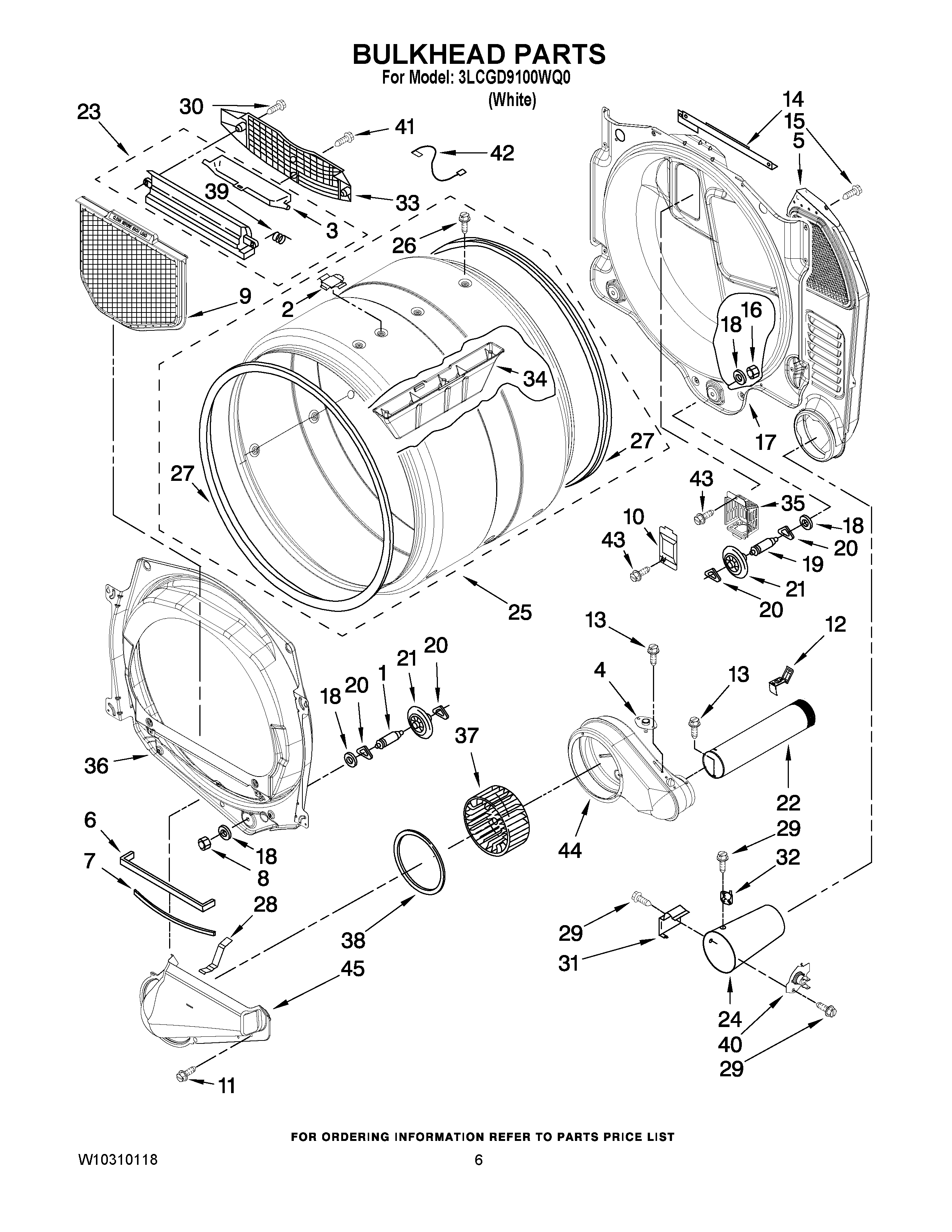

3LCGD9100WQ0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	W10665050 Whirlpool Plug
3	W10181925 Whirlpool Door
4	WP8577274 Whirlpool Dryer Thermistor
5	W11168650 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	W10120998 Whirlpool Dryer Lint Screen Filter
10	W11226088 Whirlpool Lens Assembly
11	Screw, 8-18 x 5/8
12	W11684573 Whirlpool Clip Assembly
13	WPL W10080820
14	W10118337 Whirlpool Bracket Assembly
15	WP693995 Whirlpool Screw
16	WPW10080190 Whirlpool Nut
17	WPW10080170 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	EXHAUST PIPE
23	W11197085 Whirlpool Outer Housing
24	WP8573824 Whirlpool Funnel
25	COMPLETE DRUM
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	WP8066208 Whirlpool Clip
29	Screw, 8-18 x 3/8
30	Screw, 10-16 x 1
31	WP338906 Whirlpool Dryer Gas Sensor
32	W10853395 Whirlpool Thermostat
33	W11086603 Whirlpool Dryer Link Screen Air Grille
34	W10852390 Whirlpool Drum Baffle
35	8578825 Whirlpool Bracket
36	8565061 Whirlpool Bulkhead Assembly
37	WHEEL
38	FOAM-SEAL
39	WP3394986 Whirlpool Spring
40	WPW10181549 Whirlpool Thermal Cutoff
41	WP488729 Whirlpool Refrigerator Door Screw
42	WP3401707 Whirlpool Wire Assembly
43	Screw, 8-15 x 1/2
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
