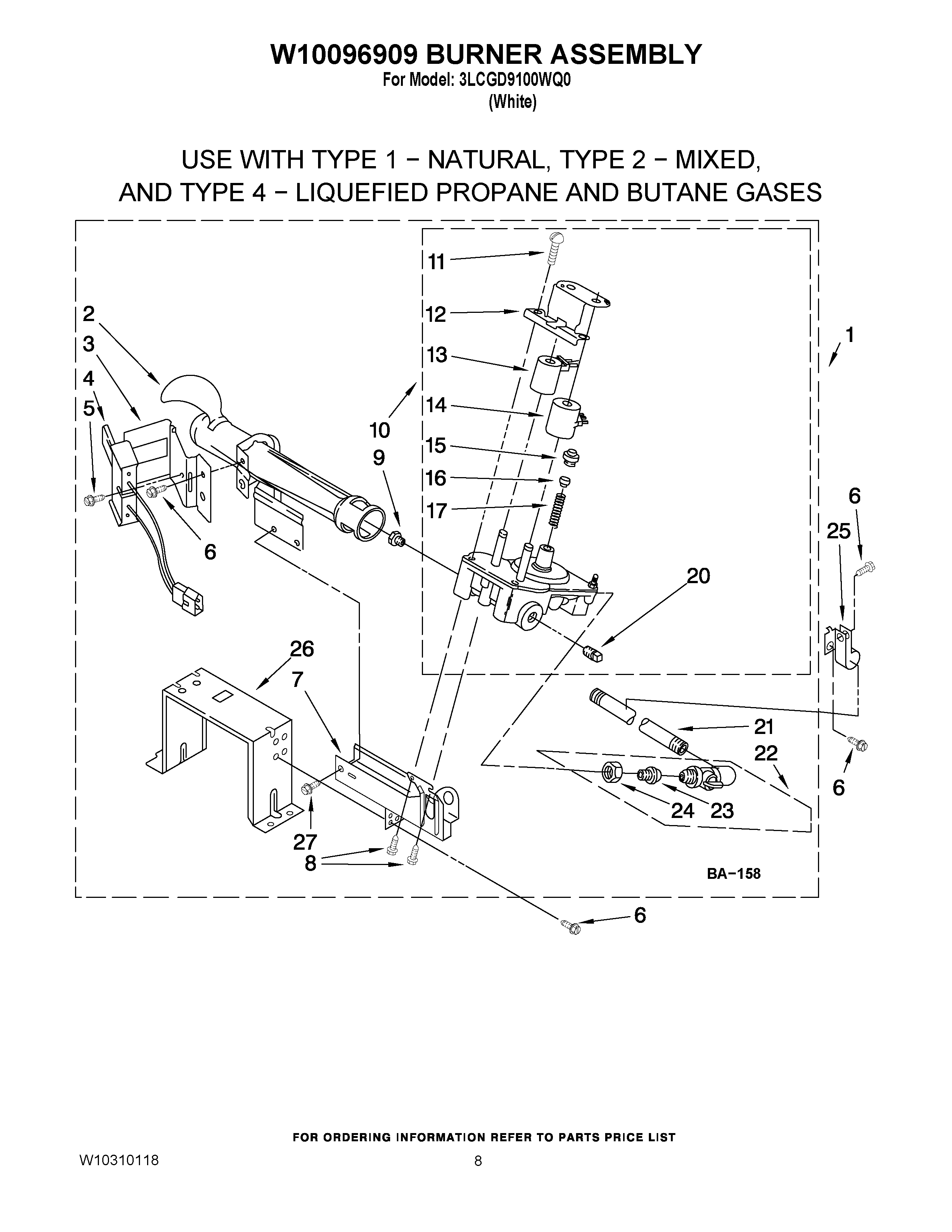

3LCGD9100WQ0 04 – W10096909 BURNER ASSEMBLY

3LCGD9100WQ0 04 – W10096909 BURNER ASSEMBLY

Written by

in

3LCGD9100WQ0 04 – W10096909 BURNER ASSEMBLY

Products

PositionProduct
NIW10402145 Whirlpool LP Gas Connection
1W10096909 Whirlpool Gas Burner
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6Screw, 10-16 x 1/2
7Base, Burner
8WP693995 Whirlpool Screw
9ORIFICE, BURNER TYPE 1
10WP8281918 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
13WP307930 Whirlpool Coil Valve
14WPY307931 Whirlpool Valve Coil
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
20W10295523 Whirlpool Plug
21W10097610 Whirlpool Pipe
22697441 Whirlpool Valve
233393767 Whirlpool Pipe
24Nut, Compression
253387561 Whirlpool Clamp
26Bracket, Support
27Screw, 10-16 x 1/2
