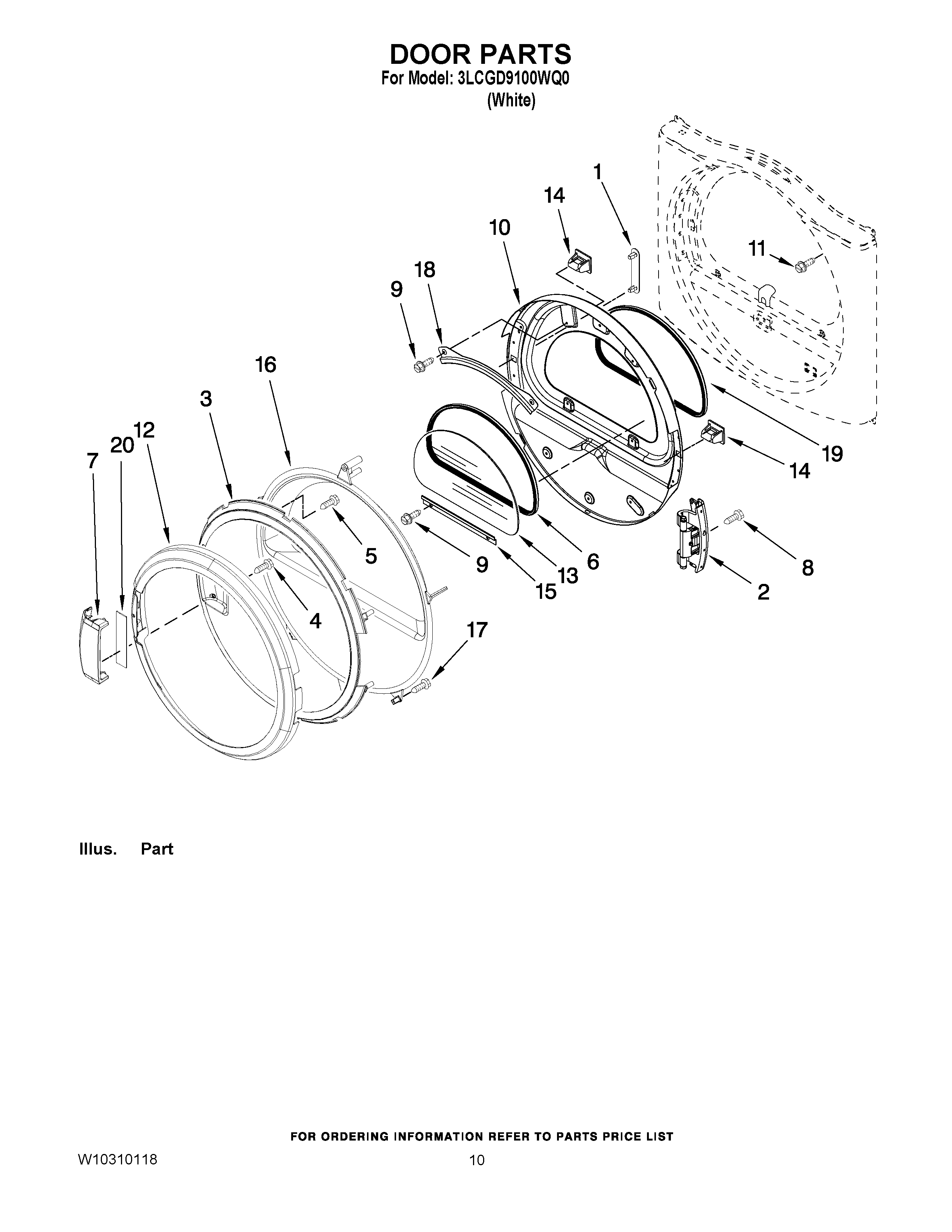

3LCGD9100WQ0 05 – DOOR PARTS

3LCGD9100WQ0 05 – DOOR PARTS

Written by

in

3LCGD9100WQ0 05 – DOOR PARTS

Products

PositionProduct
18565119 Whirlpool Plug
2ASSEMBLY, DOOR HINGE
3ASSEMBLY, DOOR INTERMEDIATE
4Screw, 8-18 x 5/8
53400618 Whirlpool Screw
6W11706993 Whirlpool Seal
7HANDLE, DOOR (INCLUDES ILLUS. 20.)
8WPW10159996 Whirlpool Screw
9SCREW, 10-16
10WPW10164062 Whirlpool Door Assembly
11WP355515 Whirlpool Screw
128576577 Whirlpool Door
13WPW10286878 Whirlpool Window
14279570 Whirlpool Dryer Door Latch Kit
15W10822054 Whirlpool Retainer
16WP8580059 Whirlpool Window
17WP8534022 Whirlpool Screw
188519356 Whirlpool Retainer
19WPW10163915 Whirlpool Door Seal
20WPW10112927 Whirlpool Control Pad
