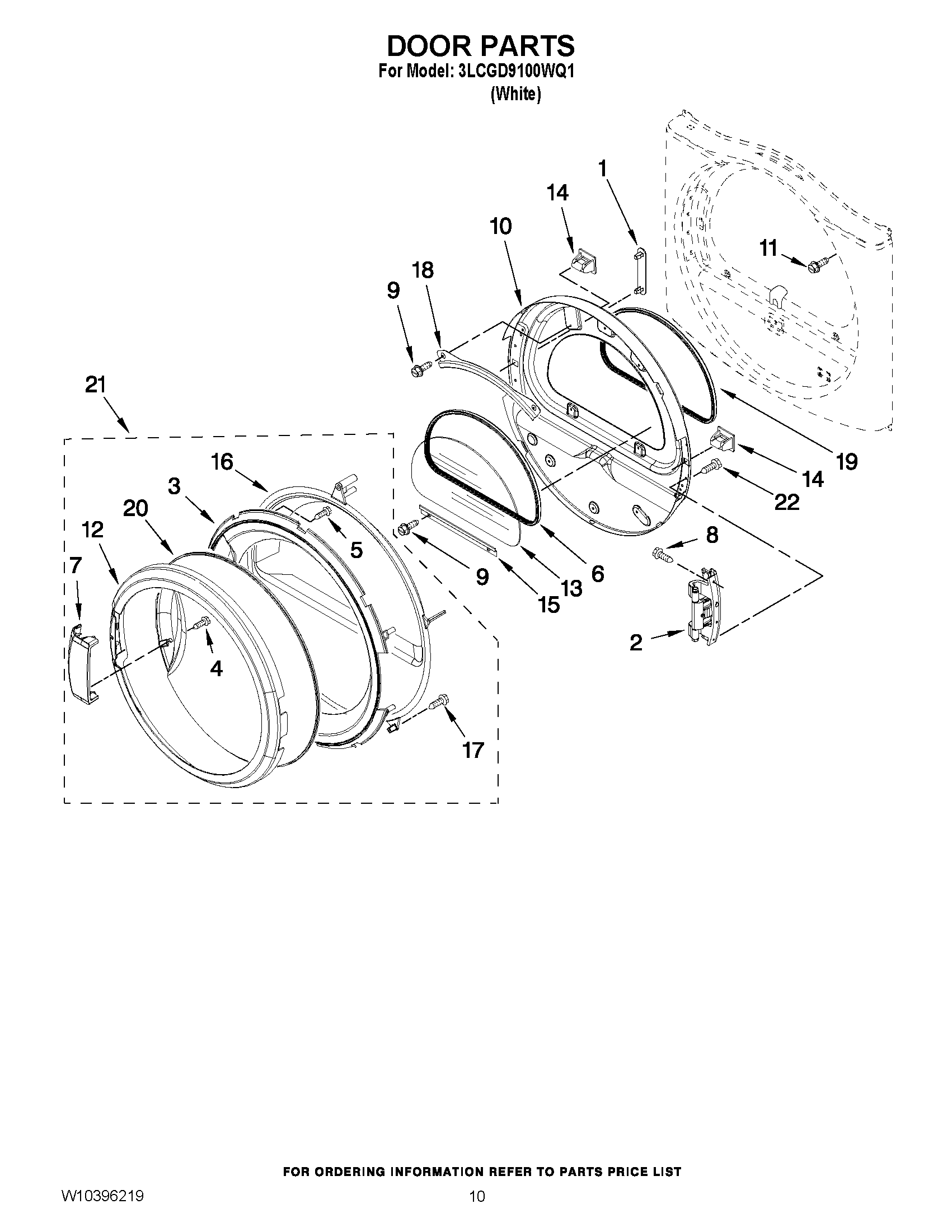

3LCGD9100WQ1 05 – DOOR PARTSadmin2025-04-26T10:53:27+00:003LCGD9100WQ1 05 – DOOR PARTS ProductsPositionProduct18565119 Whirlpool Plug2ASSEMBLY, DOOR HINGE53400618 Whirlpool Screw6W11706993 Whirlpool Seal7HANDLE, DOOR (INCLUDES ILLUS. 20.)8WPW10159996 Whirlpool Screw9WP3373329 Whirlpool Dishwasher Screw10W11690171 Whirlpool Door Assembly11WP355515 Whirlpool Screw128576577 Whirlpool Door13WPW10286878 Whirlpool Window14279570 Whirlpool Dryer Door Latch Kit15W10822054 Whirlpool Retainer16ASSEMBLY, DOOR INTERMEDIATE17WP8534022 Whirlpool Screw188519356 Whirlpool Retainer19WPW10163915 Whirlpool Door Seal20DOOR SCREEN21DOOR, OUTER ASSEMBLY22SCREW
