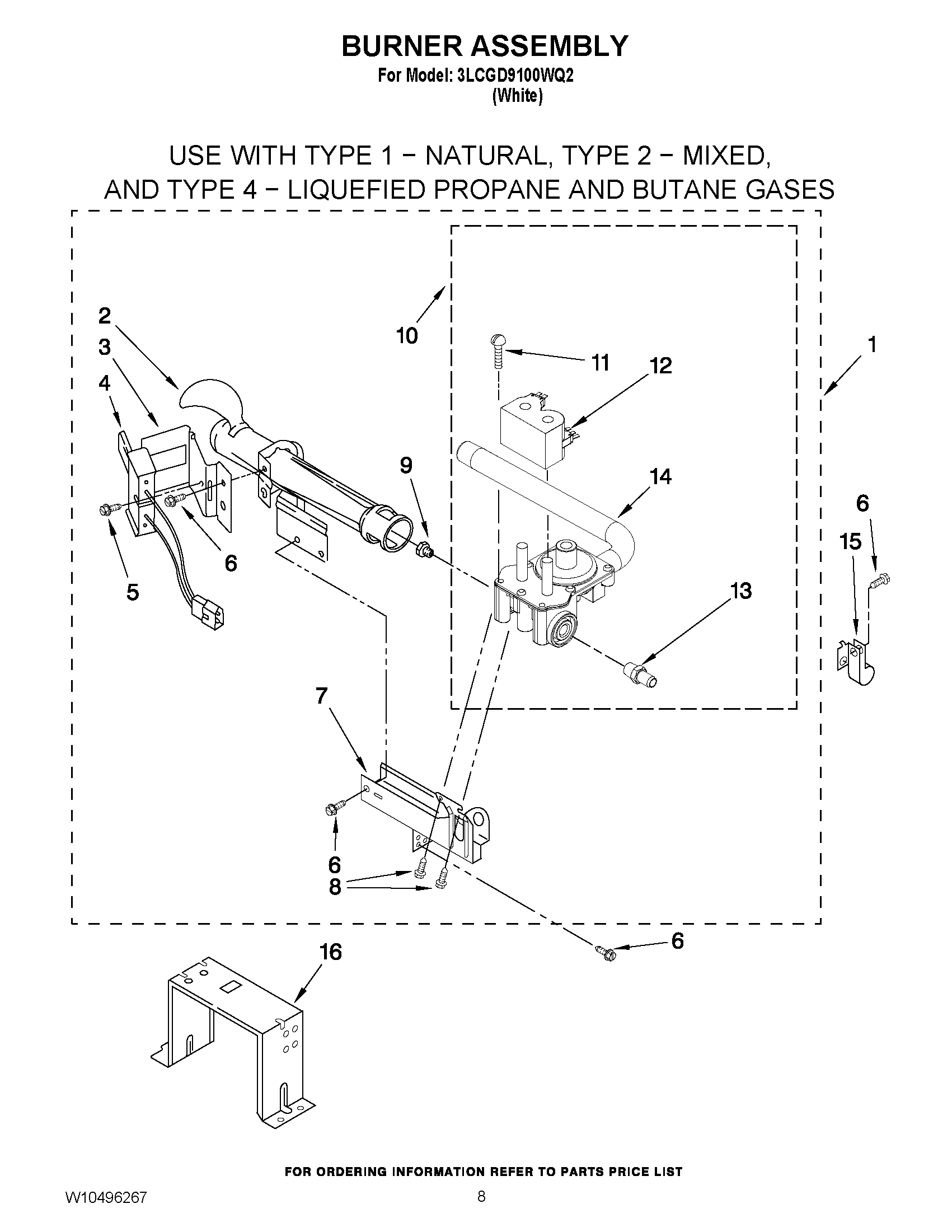

3LCGD9100WQ2 04 – BURNER ASSEMBLY

3LCGD9100WQ2 04 – BURNER ASSEMBLY

Written by

in

3LCGD9100WQ2 04 – BURNER ASSEMBLY

Products

PositionProduct
NIW10571757 Whirlpool Dryer LP Gas Conversion Kit
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9ORIFICE, BURNER TYPE 1
9WP234868 Whirlpool Gas Orifice
10W10096909 Whirlpool Gas Burner
11326049536 Whirlpool Screw
12COIL, 50 HZ.
13TAP, PRESSURE
14W10097610 Whirlpool Pipe
153387561 Whirlpool Clamp
16Bracket, Support
