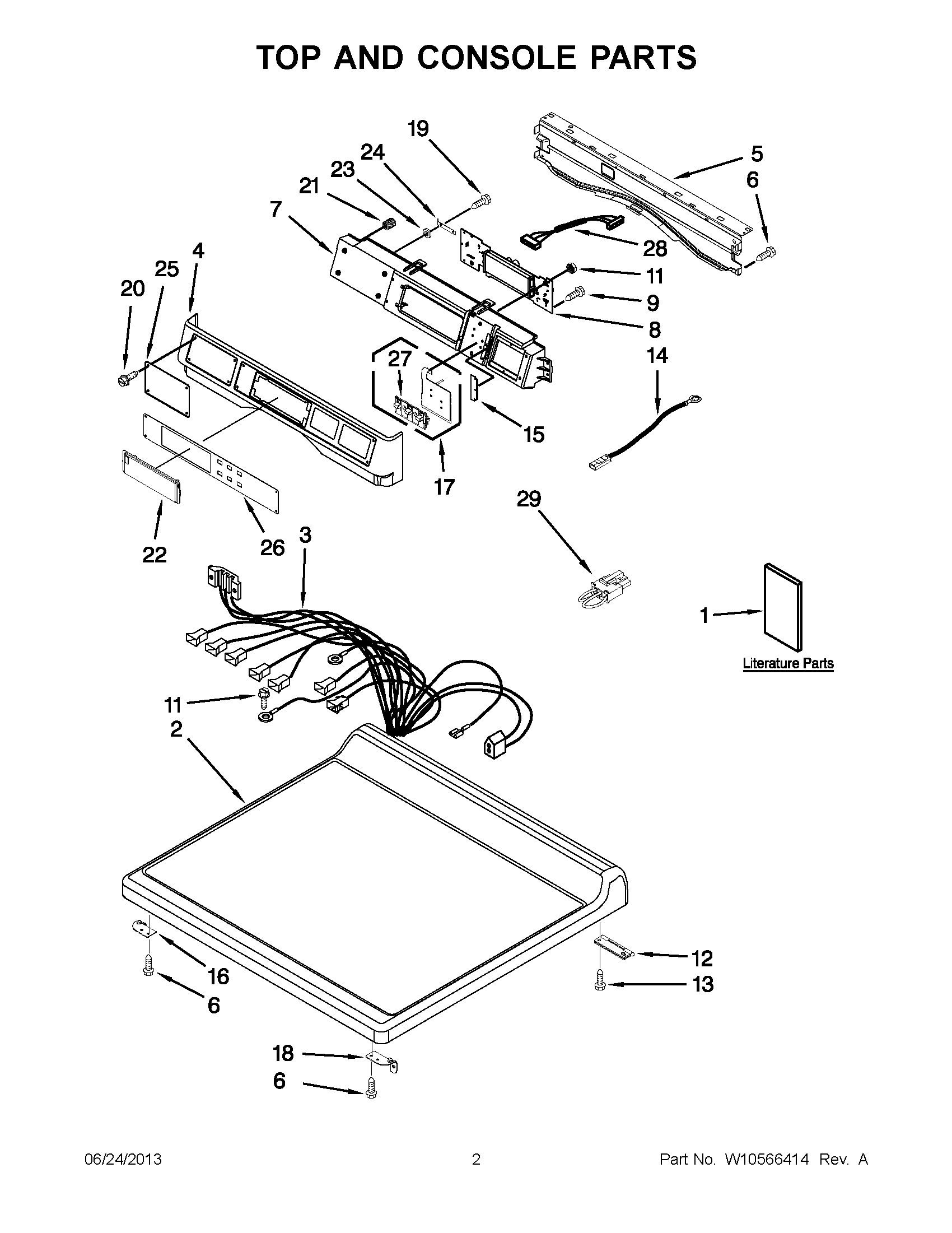

3LCGD9100WQ3 01 – TOP AND CONSOLE PARTS

3LCGD9100WQ3 01 – TOP AND CONSOLE PARTS

Written by

in

3LCGD9100WQ3 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTION
1TECH SHEET
1USER INSTRUCTION
2W11622909 Whirlpool Top
3HARNESS, MAIN
4W10779120 Whirlpool Console
5WP8565237 Whirlpool Bracket Assembly
6WP488627 Whirlpool Refrigerator Screw
7W10137427 Whirlpool Console
8WPW10166346 Whirlpool Electronic Control Board
9489136 Whirlpool Refrigerator Screw
11WPW10139046 Whirlpool Nut
12WP8565018 Whirlpool Hinge
13WP488729 Whirlpool Refrigerator Door Screw
14JUMPER, STATIC
15W10187276 Whirlpool Gasket
16W10137445 Whirlpool Bracket Assembly
17WPW10135255 Whirlpool Switch
18W10137444 Whirlpool Bracket
19WP488234 Whirlpool Air Conditioner Screw
20WPW10137457 Whirlpool Screw
21WPW10189313 Whirlpool Insert
22WPW10267645 Whirlpool Cover Assembly
23W10189075 Whirlpool Washer
24GROUND-JUMPER, TAB
25FASCIA-DISPENSER
26FASCIA-CONSOLE
27PUSH BUTTON
28W10166307 Whirlpool Wire Harness
29W11129439 Whirlpool Wire Harness
