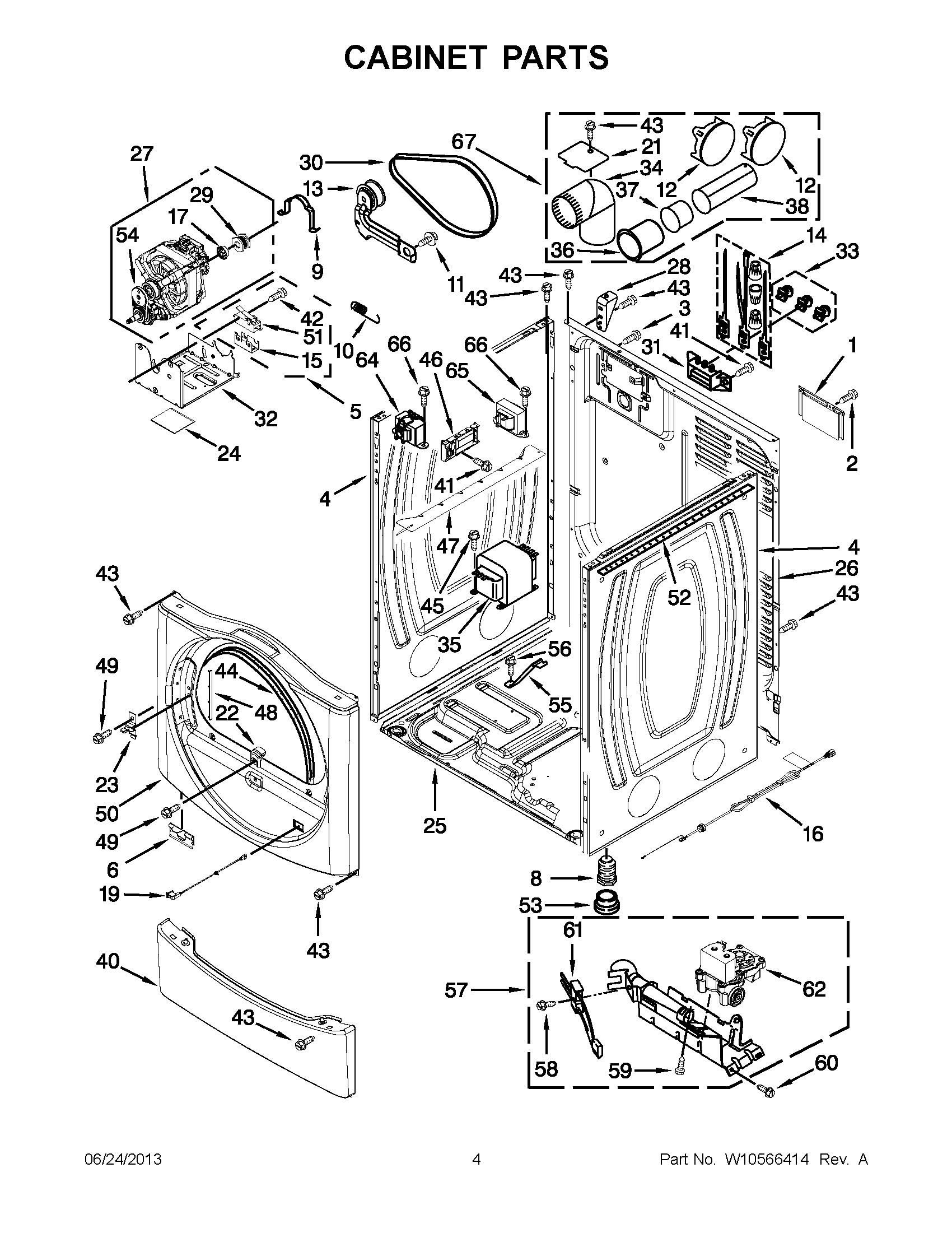

3LCGD9100WQ3 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
NI	WPL W10476818
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10476820 Whirlpool Adapter
NI	10A CORD LOCK
NI	WPW10476822 Whirlpool Adapter
1	Cover, Terminal Block
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	W10542714 Whirlpool Panel
5	W11236387 Whirlpool Switch
6	W11295573 Whirlpool Clip
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	WPW10344192 Whirlpool Idler Pulley
14	279318 Whirlpool Terminal
15	8564011 Whirlpool Bracket
16	WPW10476824 Whirlpool Power Cord
17	WP3393657 Whirlpool Belt Retainer
19	W11192658 Whirlpool Door Switch
21	WPW10354249 Whirlpool Cover
22	8580015 Whirlpool Ramp
23	WP8565122 Whirlpool Strike Assembly
24	W11113654 Whirlpool Pad
25	W11215531 Whirlpool Base
26	W10225180 Whirlpool Rear Panel
27	W10416574 Whirlpool Motor Drive
28	W10137398 Whirlpool Block
29	W10167237 Whirlpool Motor Pulley
30	WPW10131172 Whirlpool Belt
31	WP3397659 Whirlpool Terminal Block
32	W11676491 Whirlpool Base
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	W10851673 Whirlpool Transformer
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
40	WP8540621 Whirlpool Toe Panel
41	WP489464 Whirlpool Refrigerator Screw
42	3400934 Whirlpool Screw
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP3387242 Whirlpool Seal
45	W11676450 Whirlpool Screw
46	WPW10166301 Whirlpool Electronic Control Board
47	WP8563727 Whirlpool Bracket
48	8565043 Whirlpool Plug
49	WP308685 Whirlpool Microwave Screw
50	FRONT PANEL (WHITE)
51	W10410873 Whirlpool Plug Switch
52	Seal, Foam
53	WP3391943 Whirlpool Foot Boot
54	WP3405160 Whirlpool Belt Assembly
55	W10181903 Whirlpool Bracket
58	WPW10366705 Whirlpool Screw
59	SCREW
60	WP693995 Whirlpool Screw
61	279311 Whirlpool Dryer Flat Igniter with Bracket
62	W10096909 Whirlpool Gas Burner
64	W10751202 Whirlpool Transformer
65	W10237958 Whirlpool Transformer
67	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
