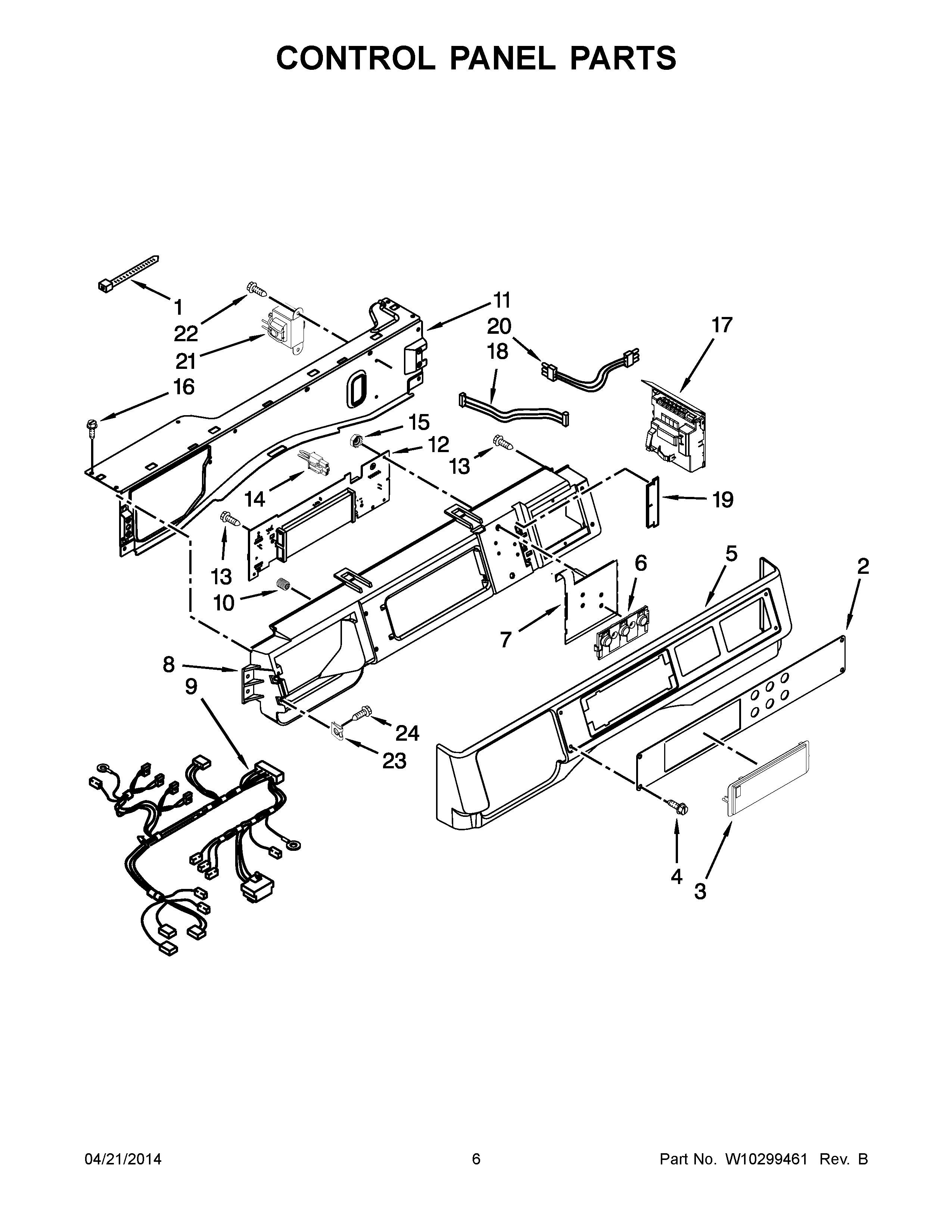

3LCHW9100WQ0 04 – CONTROL PANEL PARTS

Products

PositionProduct
1WP2205813 Whirlpool Refrigerator Wire Tie
2FACIA / OVERLAY
3WPW10131114 Whirlpool Cover Assembly
4WPW10137457 Whirlpool Screw
5W10779084 Whirlpool Console
6PUSH BUTTON
7WPW10135255 Whirlpool Switch
8W11028369 Whirlpool Console
9W10200792 Whirlpool Wire Harness
10WPW10189313 Whirlpool Insert
11Bracket, Console
12WPW10166345 Whirlpool Electronic Control Board
13489136 Whirlpool Refrigerator Screw
14W11129439 Whirlpool Wire Harness
15WPW10139046 Whirlpool Nut
16WP489442 Whirlpool Refrigerator Screw
18W10155150 Whirlpool Wire Harness
19W10187276 Whirlpool Gasket
20HARNESS, WIRING (CONSOLE UIC)
21W10751202 Whirlpool Transformer
228540329 Whirlpool Screw
23WP9781235 Whirlpool Clip
24WPW10131119 Whirlpool Screw
