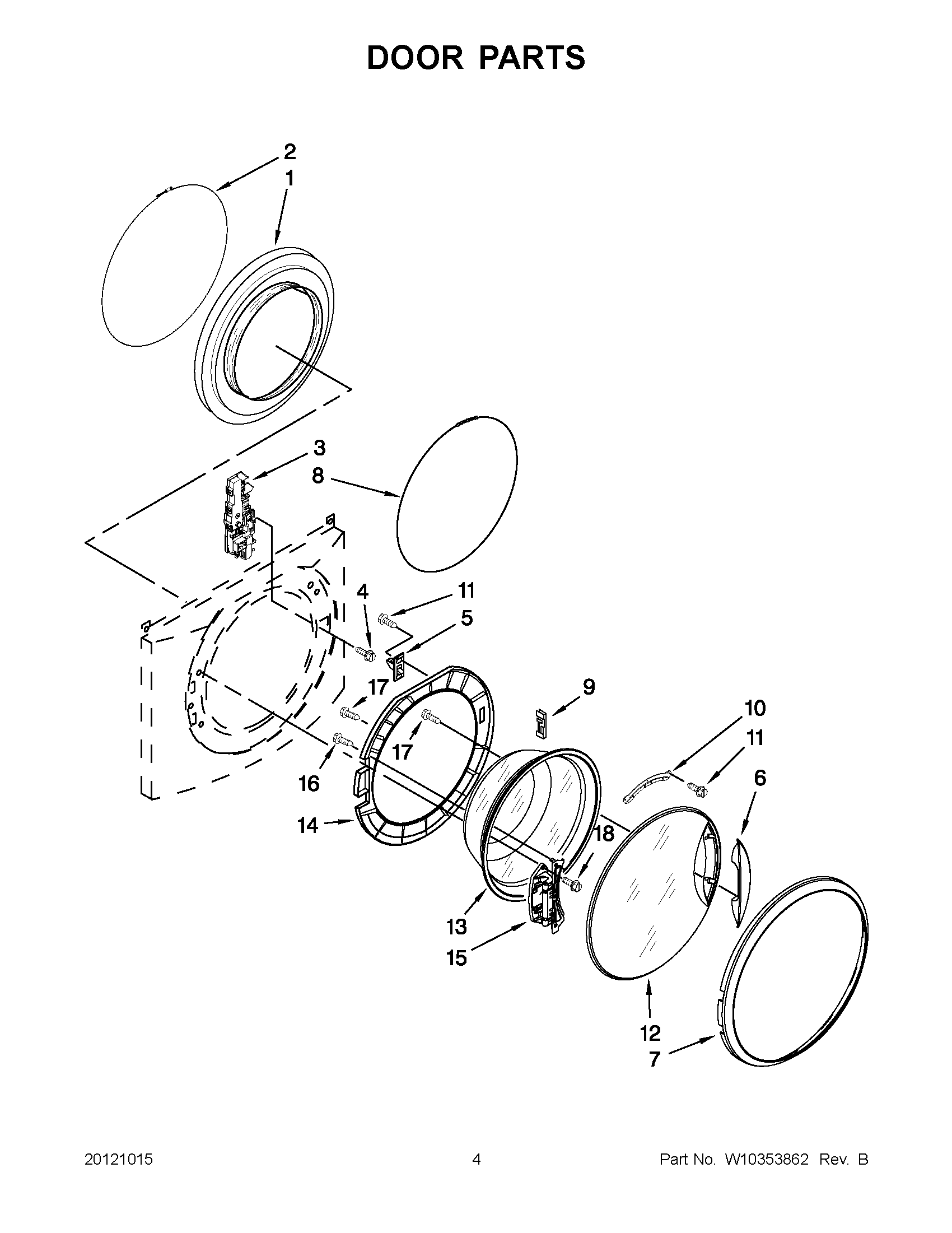

3LCHW9100YQ0 02 – DOOR PARTS

Products

Position	Product
1	W11222077 Whirlpool Bellow Assembly
2	WP8540108 Whirlpool Boot Spring Clamp
3	WPW10196671 Whirlpool Latch
4	WP8540725 Whirlpool Screw Assembly
5	WP8540221 Whirlpool Door Strike Assembly
6	W10082060 Whirlpool Door Handle
7	WPW10079810 Whirlpool Frame
8	W11032829 Whirlpool Clamp Assembly
9	WP8540115 Whirlpool Clamp
10	W11665946 Whirlpool Clamp
11	W11230114 Whirlpool Screw Assembly
12	INNER DOOR ASSEMBLY
13	WPW10388315 Whirlpool Glass Door
14	WPW10376617 Whirlpool Frame
15	Hinge, Door
16	WP8181660 Whirlpool Screw
17	WP8540282 Whirlpool Screw
18	WP489442 Whirlpool Refrigerator Screw
