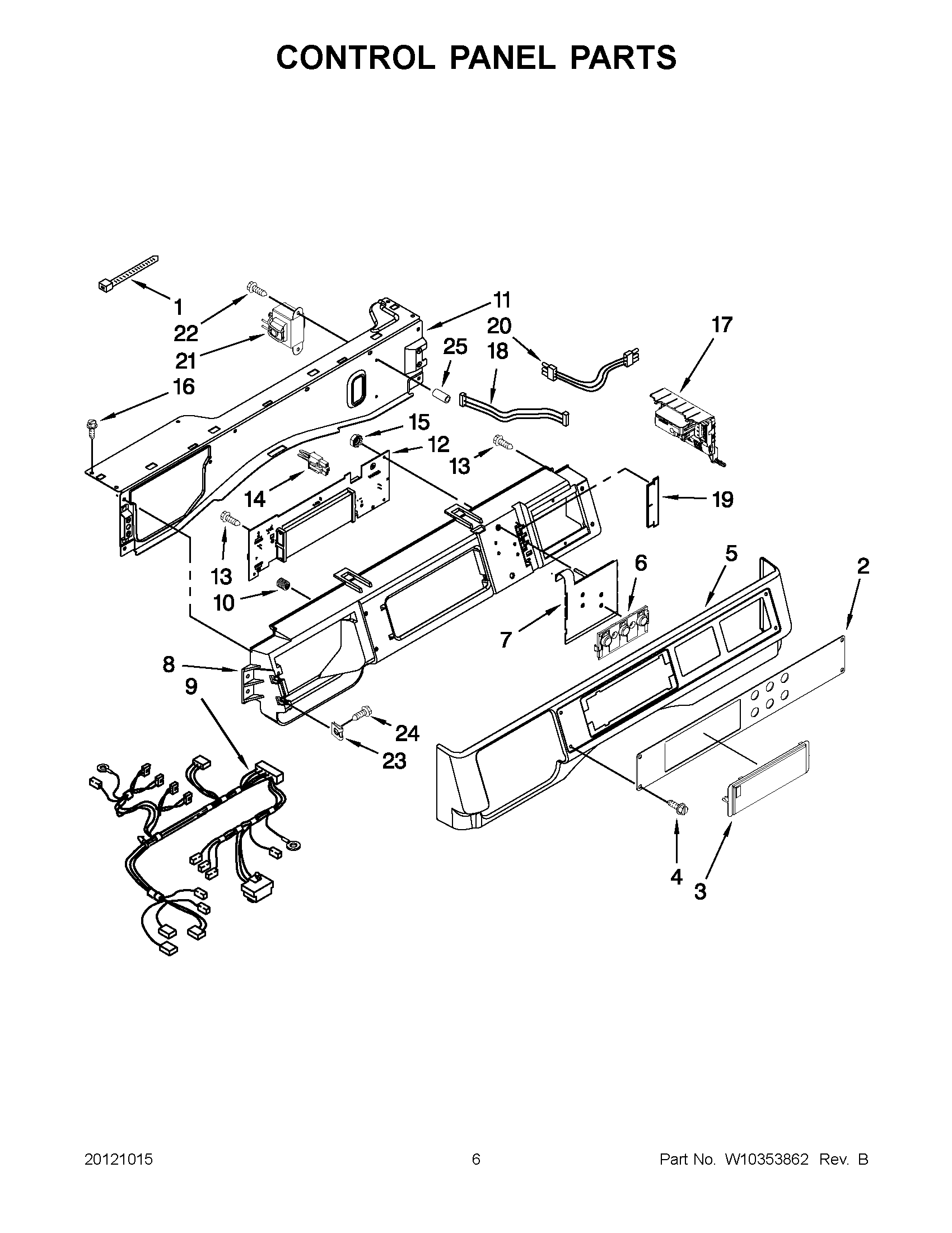

3LCHW9100YQ0 03 – CONTROL PANEL PARTS

Products

Position	Product
NI	CCU TO HOT FILL VALVE (2 POLE)
NI	CCU TO COLD FILL VALVE (4 POLE)
NI	CABINET (NOT A SERVICEABLE PART)
1	WP2205813 Whirlpool Refrigerator Wire Tie
2	FACIA / OVERLAY
3	WPW10267645 Whirlpool Cover Assembly
4	WPW10137457 Whirlpool Screw
5	W10779084 Whirlpool Console
6	PUSH BUTTON
7	WPW10135255 Whirlpool Switch
8	W11028369 Whirlpool Console
9	HARNESS, WIRING (UPPER MAIN) INCLUDES
10	WPW10189313 Whirlpool Insert
11	BRACKET, CONSOLE
12	WPW10311755 Whirlpool Dishwasher Electronic Control Board
13	489136 Whirlpool Refrigerator Screw
14	W11129439 Whirlpool Wire Harness
15	WPW10139046 Whirlpool Nut
16	WP489442 Whirlpool Refrigerator Screw
17	MICROCOMPUTER, MACHINE CONTROL
18	W10155150 Whirlpool Wire Harness
19	W10187276 Whirlpool Gasket
20	W11700546 Whirlpool Wire Harness
21	W10751202 Whirlpool Transformer
22	8540329 Whirlpool Screw
23	WP9781235 Whirlpool Clip
24	WPW10131119 Whirlpool Screw
25	W10018050 Whirlpool Cap Assembly
