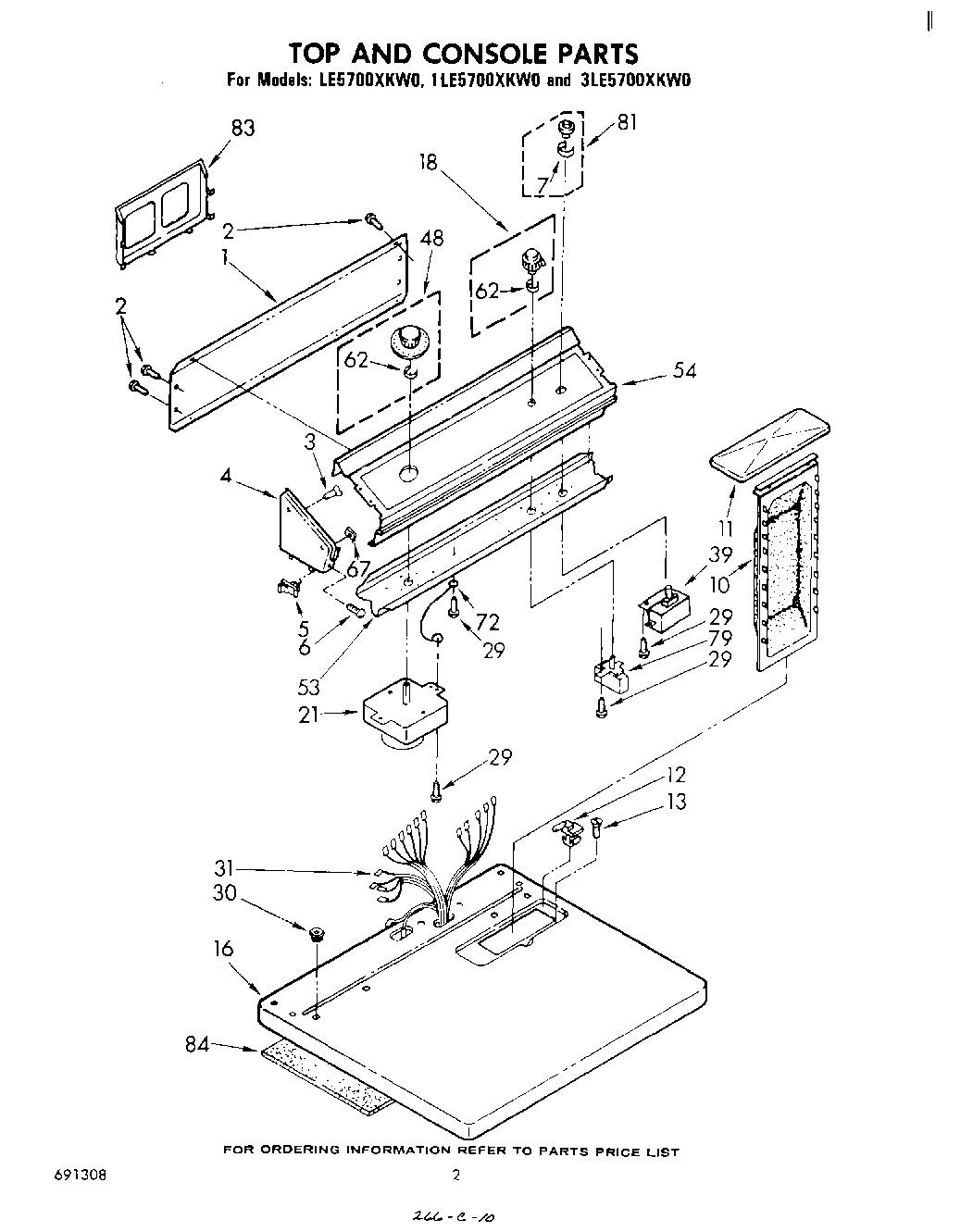

3LE5700XKW0 02 – SECTION

3LE5700XKW0 02 – SECTION

Written by

in

3LE5700XKW0 02 – SECTION

Products

PositionProduct
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End L.H. (White)
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Almond)
5Stop, Push-In Top
6Screw, 8-18 x 1 (2)
7Clip
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16top (white)
16Top (Almond)
16Top (Golden Harvest)
18Control Knob Assembly
21Timer, 50 Hz. (Use W/Model 3LE5700XKW0)
21Timer, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring (50 Hz.) (Use W/Model 3LE5700XKW0)
31Harness, Wiring (60 Hz.)
39(Alt.)
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
79Switch, Rotary
81Button Assembly
83Rack, Literature
84W10851673 Whirlpool Transformer
84WPL 690725
8472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
84WPL 691260
84Almond (Uncut)
84Leveler (Thinner)
84WPL 693849
84WP72107 Whirlpool Touchup
84799344 Whirlpool Refrigerator Paint
8472017 Whirlpool Appliance Touch-Up Paint White
84350956 Whirlpool Spray Assembly
84350938 Whirlpool Spray Gun
84350930 Whirlpool White Spray Paint
84WPL 690002
84WPL 688643
84Instructions, Wiring
84Wire, Adapter (4“ Long)
84279320 Whirlpool Dryer Rear Terminal Block Kit
84Wire, Adapter (4-1/2 “ Long)
84Supplement, Installation Instructions
84WPL 349849
84WPL 685870
84WPL 799351
84WPL 687011
84Golden Harvest (Uncut)
84Golden Harvest
84WPL 691308
