3LE5710XKW0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL 799351
	Golden Harvest (Uncut)
	Golden Harvest
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WPL LIT692787
	WPL LIT688898
	WPL LIT691266
	WPL LIT691522
	Almond (Uncut)
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	Leveler (Thinner)
	WP72107 Whirlpool Touchup

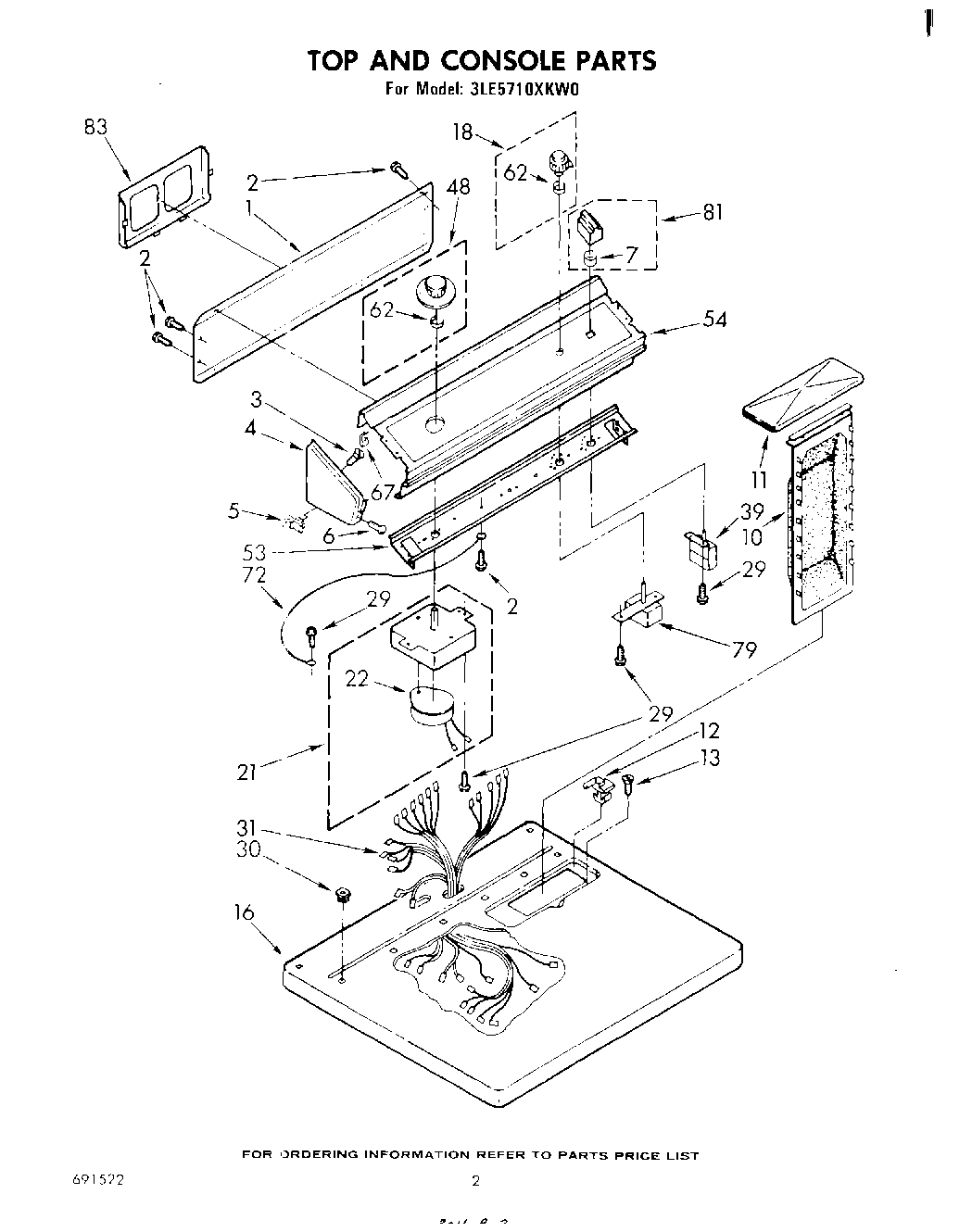

1	Panel, Rear Console
2	SCREW
3	WPL 355326
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End L.H. (Golden Harvest)
5	Stop, Push-In Top
6	Screw, 8-18 x 1 (2)
7	Clip
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	top (white)
16	Top (Golden Harvest)
16	Top (Almond)
18	Control Knob Assembly
21	Timer, 50 Hz. (Use W/Model 3LE5700XKW0)
22	Motor, 50 Hz/60 Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
31	Harness, Wiring (50 Hz.) (Use W/Model 3LE5700XKW0)
39	Switch, Push-To-Start (Alternate)
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Rotary
81	Button Assembly
83	Rack, Literature
