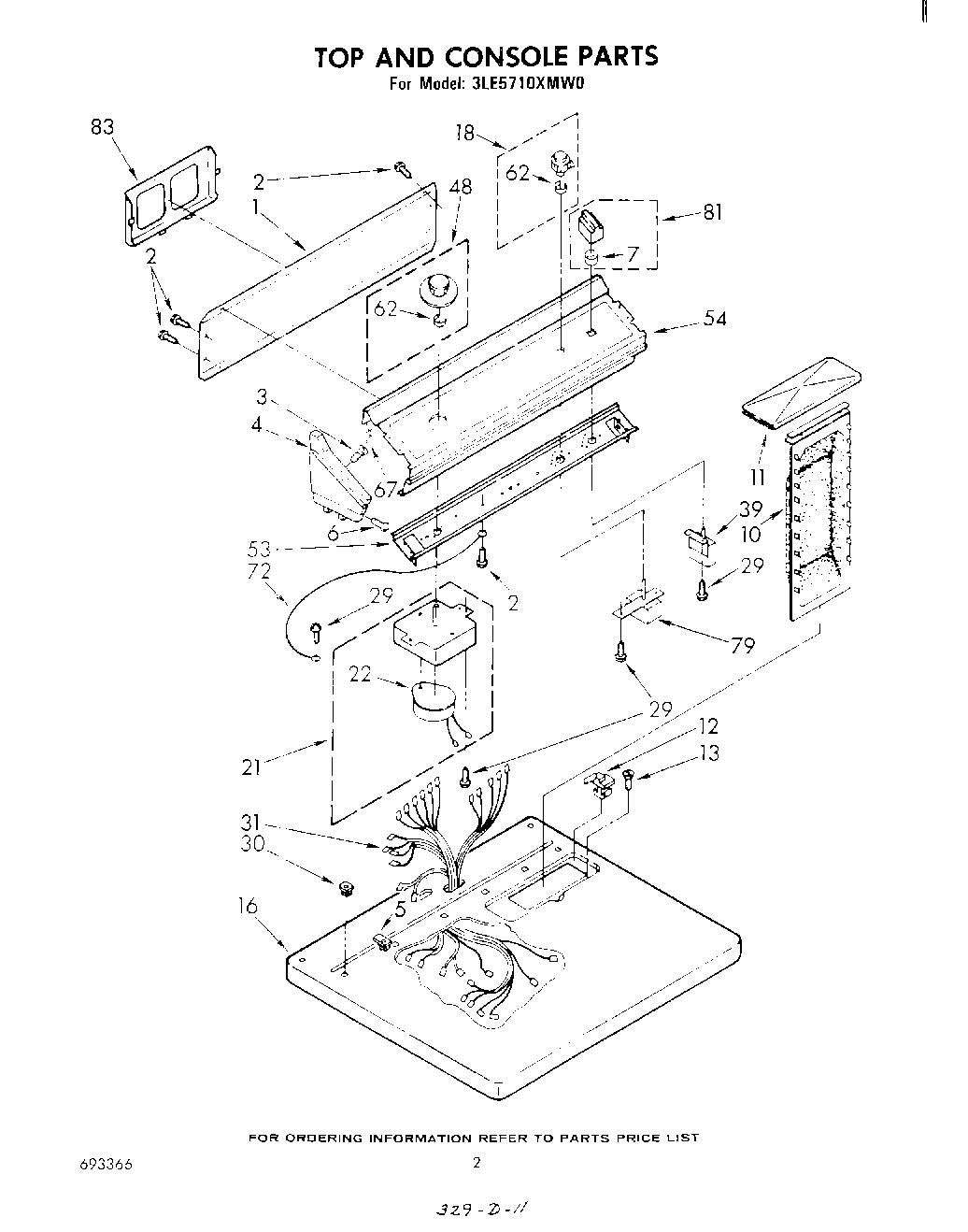

3LE5710XMW0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest
	Golden Harvest (Uncut)
	WPL LIT693672
	WPL LIT688643
	Guide, Dryer
	Almond (Uncut)
	Leveler (Thinner)
	WPL 799351
	WP72107 Whirlpool Touchup
	WPL LIT693366
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1	Panel, Rear Console
2	SCREW
3	WPL 355326
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End L.H. (Golden Harvest)
5	Stop, Push-In Top
6	Screw, 8-18 x 1 (2)
7	Clip
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Almond)
16	Top (Golden Harvest)
16	top (white)
18	Control Knob Assembly
21	Timer, 50 Hz. (Use W/Model 3LE5700XKW0)
22	Motor, 50 Hz/60 Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
31	Harness, Wiring (50 Hz.) (Use W/Model 3LE5700XKW0)
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Rotary
81	Button Assembly
83	Rack, Literature
