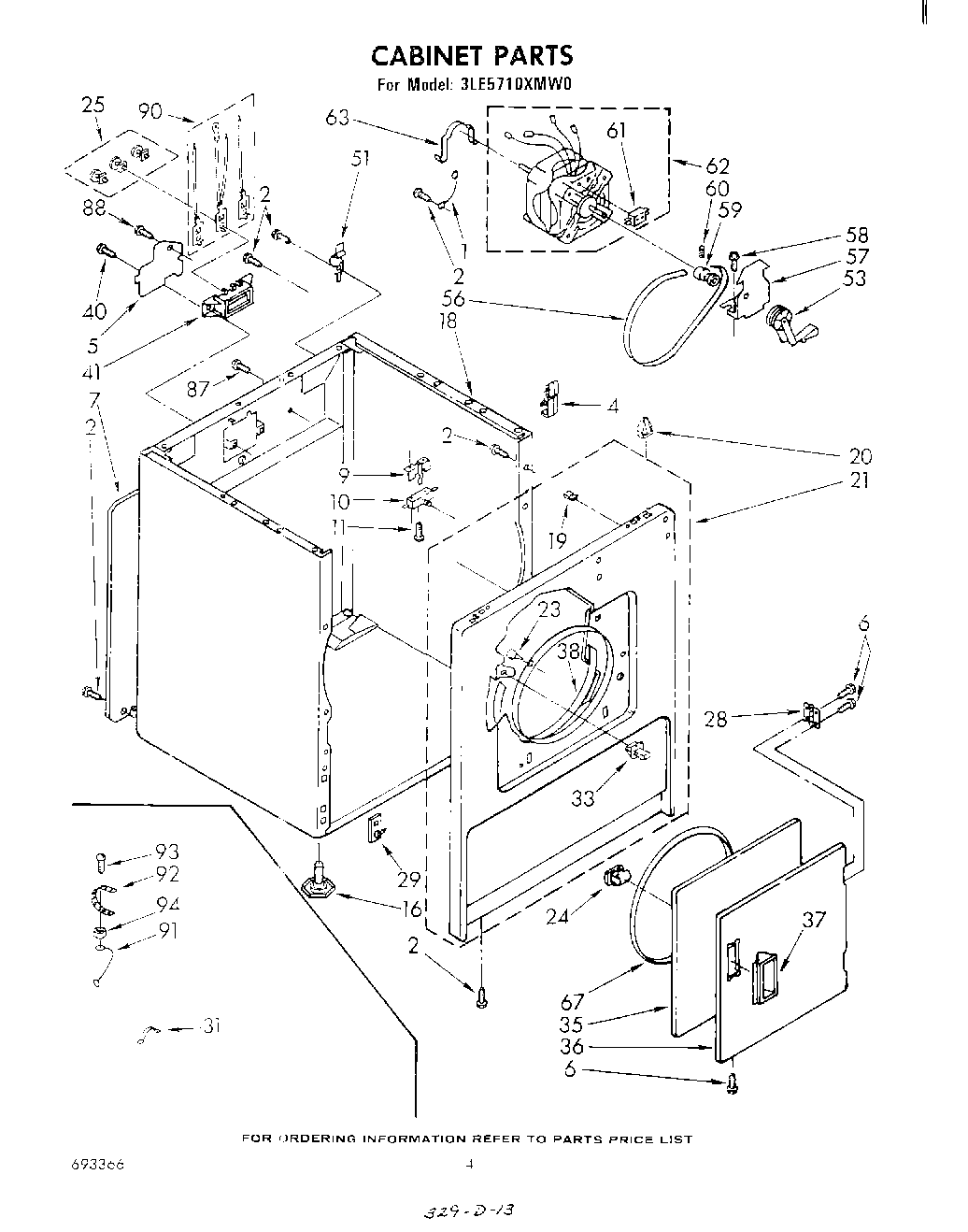

3LE5710XMW0 03 – SECTION

Products

Position	Product
1	Wire, Ground (Motor)
2	SCREW
4	Clip, Retainer
5	WP90767 Whirlpool Screw
6	WP694091 Whirlpool Screw
7	Panel, Rear
9	WP691581 Whirlpool Actuator
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
16	49621 Whirlpool Leveling Feet
18	Cabinet (Golden Harvest)
18	Cabinet (White)
18	Cabinet (Almond)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel (White)
21	Front Panel (Almond)
21	Front Panel Assembly (Also Includes Illus. 19) (Golden Harvest)
23	279220 Whirlpool Clip
25	279393 Whirlpool Terminal Block Screw and Nut Kit
28	WP348023 Whirlpool Hinge
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
31	8528351 Whirlpool Clip
33	279570 Whirlpool Dryer Door Latch Kit
35	280077 Whirlpool Door
36	Door, Front (Almond)
36	WPL 689319
36	WP348205 Whirlpool Door
37	Handle, Door (Almond)
37	Handle, Door (Golden Harvest)
37	WP686711 Whirlpool Door Handle
38	279264 Whirlpool Bearing and Seal Kit
40	WP308685 Whirlpool Microwave Screw
41	279320 Whirlpool Dryer Rear Terminal Block Kit
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	W11618508 Whirlpool Drive Motor
60	SCREW, SET
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	W11613302 Whirlpool Door Seal
90	279318 Whirlpool Terminal
91	WPL 685449
92	Strap, Ground
93	Screw, Ground (10-24 x 1)
94	W10080180 Whirlpool Nut
