3LE5710XMW1 02 – SECTION
Written by
in

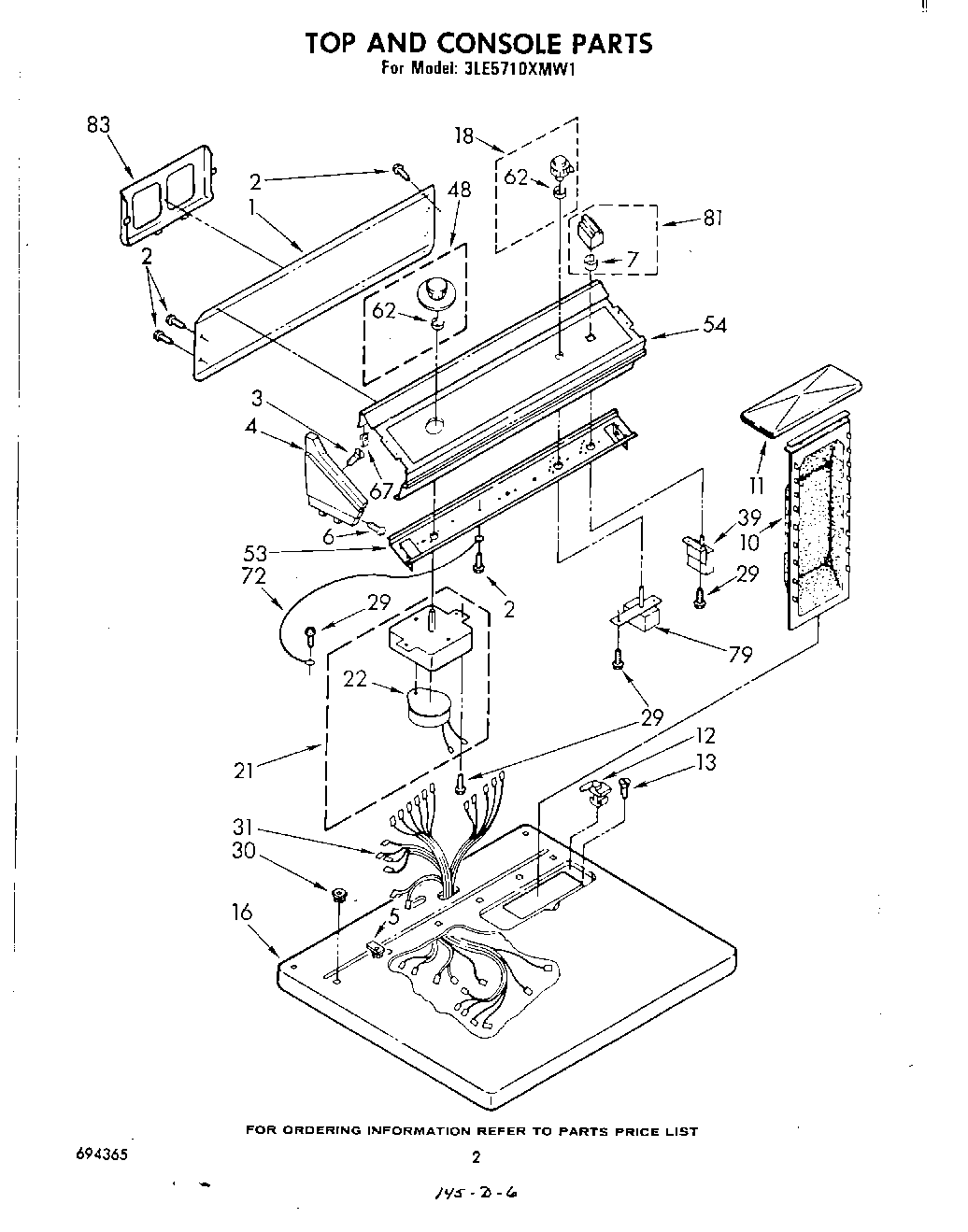

3LE5710XMW1 02 – SECTION
Products
Position
Product
350930 Whirlpool White Spray Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Golden Harvest
Golden Harvest (Uncut)
WPL 799351
WPL LIT694365
WPL LIT693672
Almond (Uncut)
Leveler (Thinner)
Guide, Dryer
WP72107 Whirlpool Touchup
WPL LIT692787
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1
Panel, Rear Console
2
SCREW
3
WPL 355326
4
Cap, End (L.H.) (White)
4
Cap, End L.H. (White)
4
Cap, End L.H. (Almond Cap, End R.H.)
4
Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4
Cap, End (L.H.) (Almond)
4
Cap, End L.H. (Golden Harvest)
5
Stop, Push-In Top
6
Screw, 8-18 x 1 (2)
7
Clip
10
339392V Whirlpool Dryer Lint Filter Screen
11
Cover, Lint Screen (Golden Harvest)
11
Cover, Lint Screen (White)
11
Cover, Lint Screen (Almond)
12
WPW10044480 Whirlpool Hinge Assembly
12
WPW10044470 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
16
top (white)
16
Top (Golden Harvest)
16
Top (Almond)
18
Control Knob Assembly
21
Timer, 50 Hz. (Use W/Model 3LE5700XKW0)
22
Motor, 50 Hz/60 Hz.
29
WP3390631 Whirlpool Screw
30
Nut, Push-In (2)
31
Harness, Electric
39
Switch, Push-To-Start
39
Switch, Push-To-Start (Alternate)
39
(Alt.)
48
Timer Knob Assembly
53
Bracket, Control
54
Panel, Control
62
WP688805 Whirlpool Spring Clip
67
Clip (4)
72
Wire, Ground
79
Switch, Rotary
81
Button Assembly
83
Rack, Literature
←
