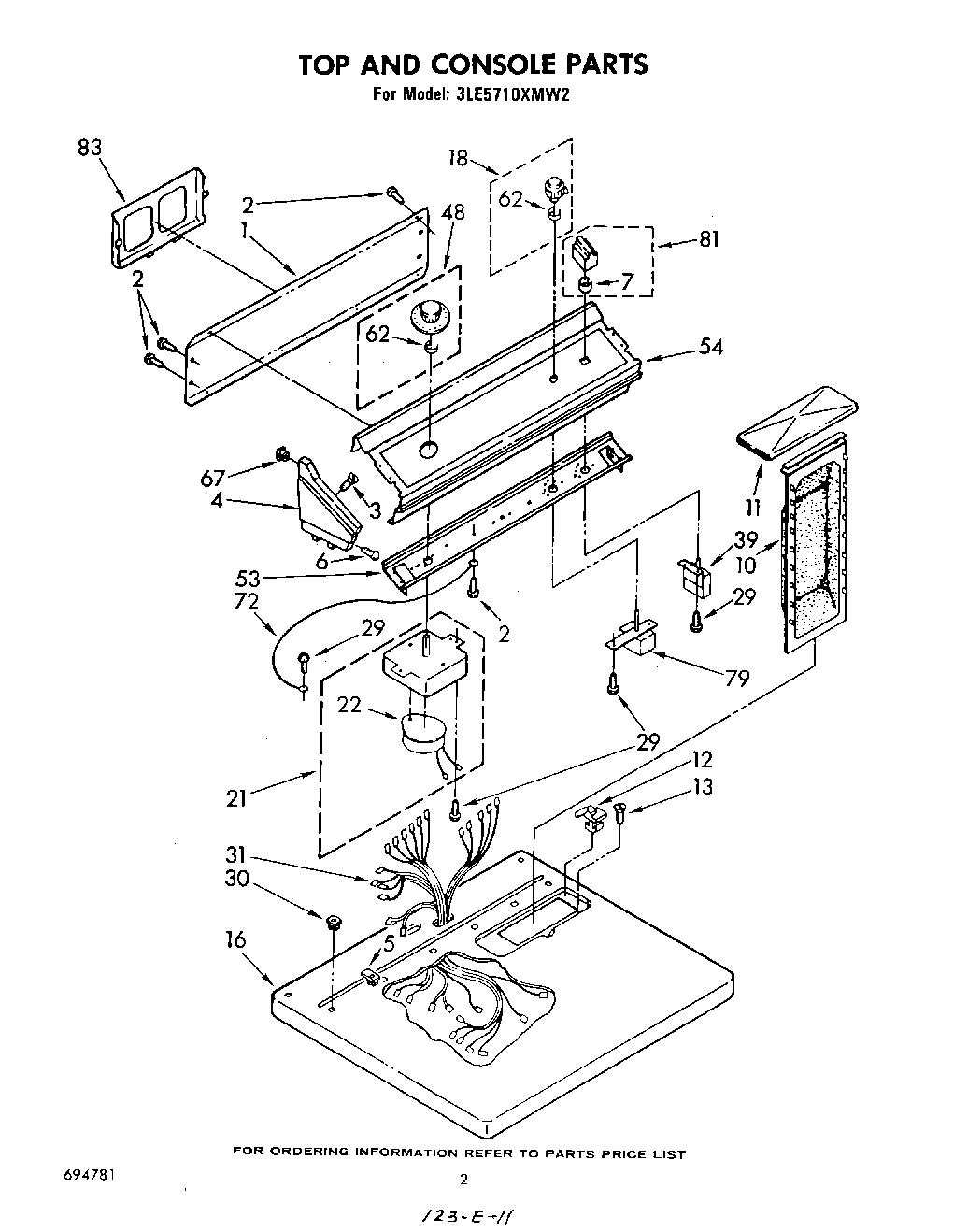

3LE5710XMW2 02 – SECTION

3LE5710XMW2 02 – SECTION

Written by

in

3LE5710XMW2 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	WPL 799351
	WPL LIT694781
	WPL LIT692787
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	Guide, Dryer
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	WPL LIT693672
1	Panel, Rear Console
2	SCREW
3	WPL 355326
4	Cap, End L.H. (Golden Harvest)
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (White)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Platinum Cap, End (R.H.))
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (Toast)
4	Cap, End L.H. (Platinum)
4	Cap, End L.H. (Toast)
5	Stop, Push-In Top
6	Screw, 8-18 x 1 (2)
7	Clip
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Golden Harvest)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Toast)
16	top (white)
16	Top (Platinum)
16	Top (Golden Harvest)
16	Top (Almond)
18	Control Knob Assembly
21	Timer, 50 Hz. (Use W/Model 3LE5700XKW0)
22	Motor, 50 Hz/60 Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
31	Harness, Wiring
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	Nut, Push-In (4)
72	Wire, Ground
79	Switch, Rotary
81	Button Assembly
83	Rack, Literature
