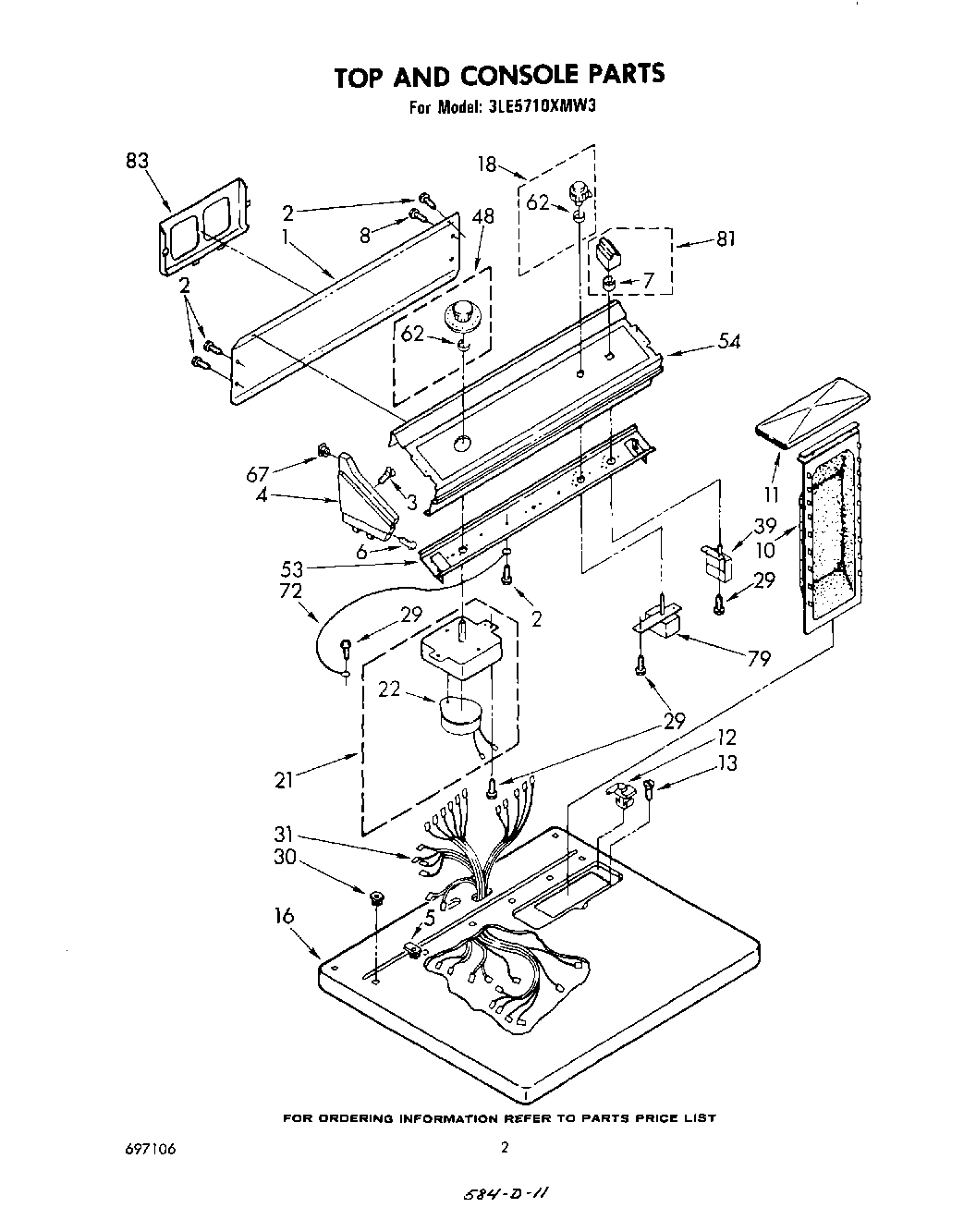

3LE5710XMW3 02 – SECTION

3LE5710XMW3 02 – SECTION

Written by

in

3LE5710XMW3 02 – SECTION

Products

PositionProduct
WPL LIT696755
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT677971
Guide, Dryer
WPL LIT677967
WPL LIT697106
Washer (Belt Drive)
WPL LIT692787
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
799344 Whirlpool Refrigerator Paint
Leveler (Thinner)
Dryer
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
350938 Whirlpool Spray Gun
WP72107 Whirlpool Touchup
72017 Whirlpool Appliance Touch-Up Paint White
Almond (Uncut)
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Toast)
4Cap, End L.H. (Golden Harvest)
4Cap, End L.H. (Toast)
4Cap, End L.H. (Platinum)
4Cap, End L.H. (White)
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
5Stop, Push-In Top
6Screw, 8-18 x 1 (2)
7Clip
8WP693995 Whirlpool Screw
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Almond)
16top (white)
16Top (Platinum)
16Top (Toast)
16Top (Golden Harvest)
18Control Knob Assembly
21Timer, 50 Hz. (Use W/Model 3LE5700XKW0)
22Motor, 50 Hz/60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39(Alt.)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
79Switch, Rotary
81Button Assembly
83Rack, Literature
