3LER5434BN1 03 – SECTION

3LER5434BN1 03 – SECTION

Written by

in

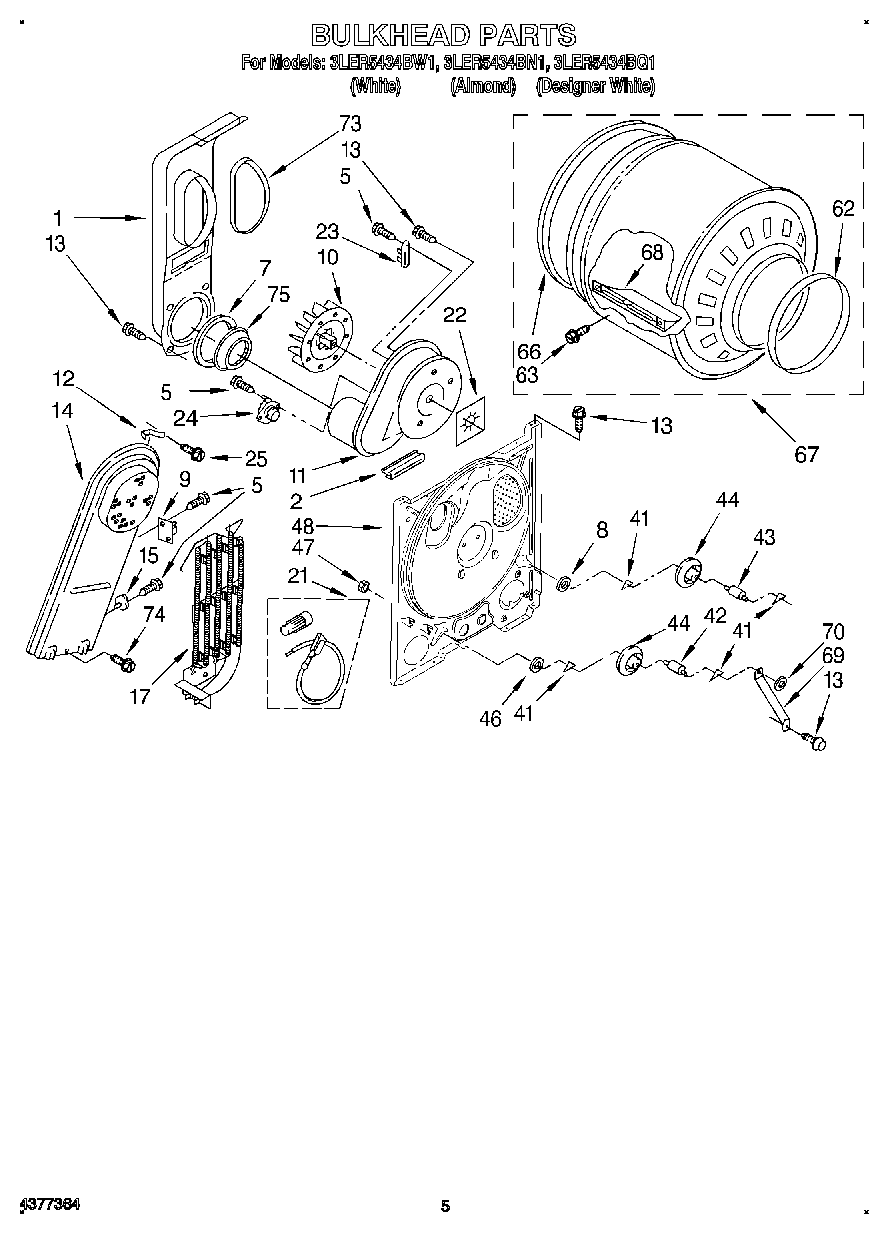

3LER5434BN1 03 – SECTION

Products

PositionProduct
1279505 Whirlpool Chute
2686889 Whirlpool Pad
5WP90767 Whirlpool Screw
7W11415783 Whirlpool Seal
8WP3388703 Whirlpool Washer
9279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15279054 Whirlpool Dryer High Limit Thermostat L290 3W
17Element, Heater
21279457 Whirlpool Dryer Heating Element Wide Spade Connection
22Seal, Blower
23WP3392519 Whirlpool Dryer Thermal Fuse
24WP3387137 Whirlpool Thermostat
25WP489463 Whirlpool Refrigerator Screw
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
62WP3394509 Whirlpool Bearing Ring
63WPW10109200 Whirlpool Screw
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67697760 Whirlpool Drum Assembly Primary OS2
68WP342847 Whirlpool Drum Baffle
69W11684613 Whirlpool Bracket
70WP90296 Whirlpool Clip
73SEAL
75W11233063 Whirlpool Shield Assembly
