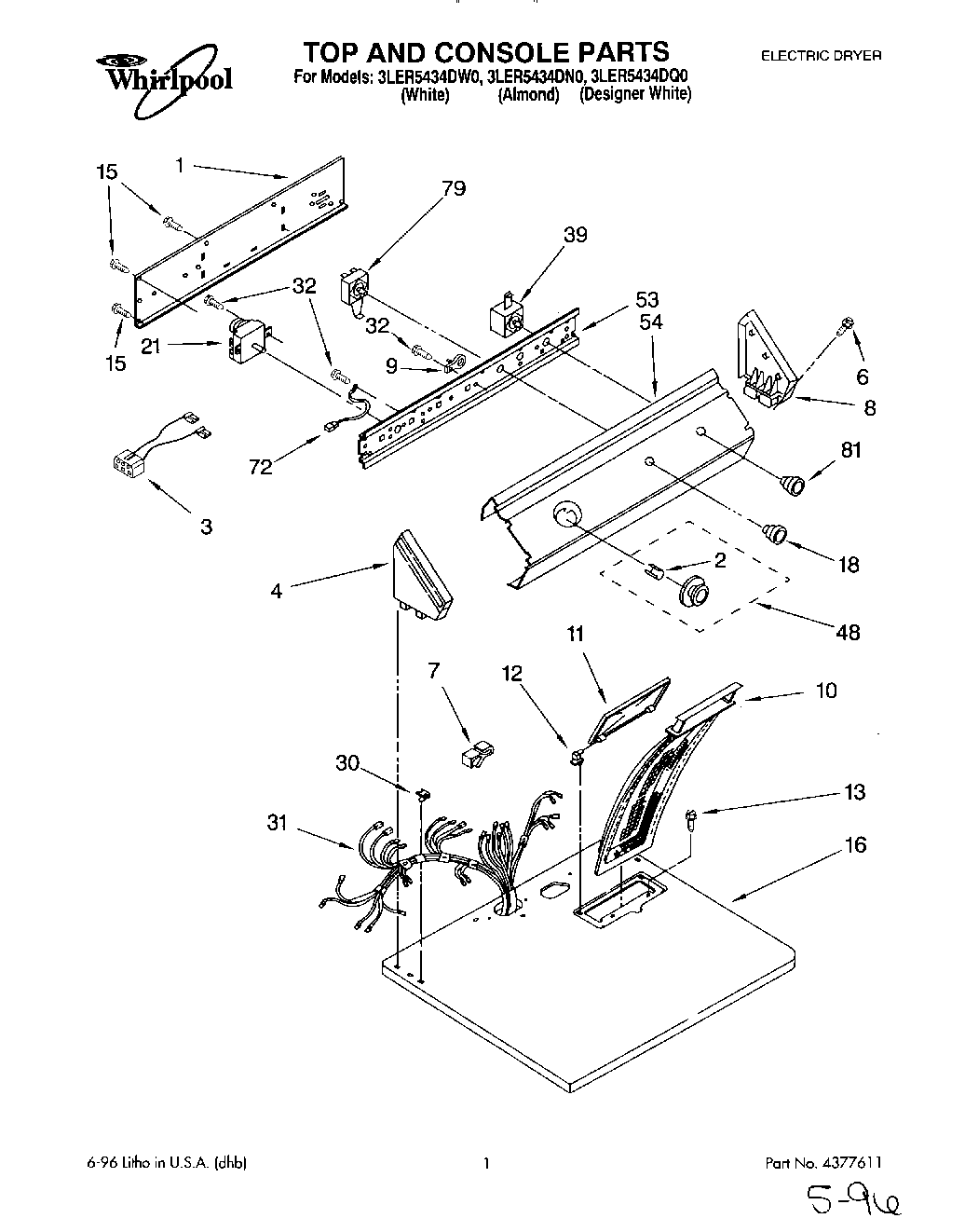

3LER5434DN0 01 – SECTION

Products

Position	Product
	Guide, Use & Care
	Instructions, Installation
	Label, Operating Instructions
	WPL LIT3401070
	Dryer
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint
1	Panel, Rear Console
2	WP688805 Whirlpool Spring Clip
3	8283286 Whirlpool Wire Harness
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.)
6	WP388326 Whirlpool Screw
7	Clip, Retainer
8	Cap, End (R.H.)
8	Cap, End (R.H.) (Almond)
9	279872 Whirlpool Resistor
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	WP693995 Whirlpool Screw
16	Top (White)
16	Top (Almond)
18	KNOB
18	WP3957796 Whirlpool Knob
21	WP3396215 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring (Includes 3397659 Terminal Block)
31	WP3397659 Whirlpool Terminal Block
32	WPW10139210 Whirlpool Screw
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (Designer White)
54	Panel, Control (Almond)
54	Panel, Control (White)
72	Wire, Ground
79	3399638 Whirlpool Switch
81	WP3957800 Whirlpool Knob
81	Knob, Push To Start
