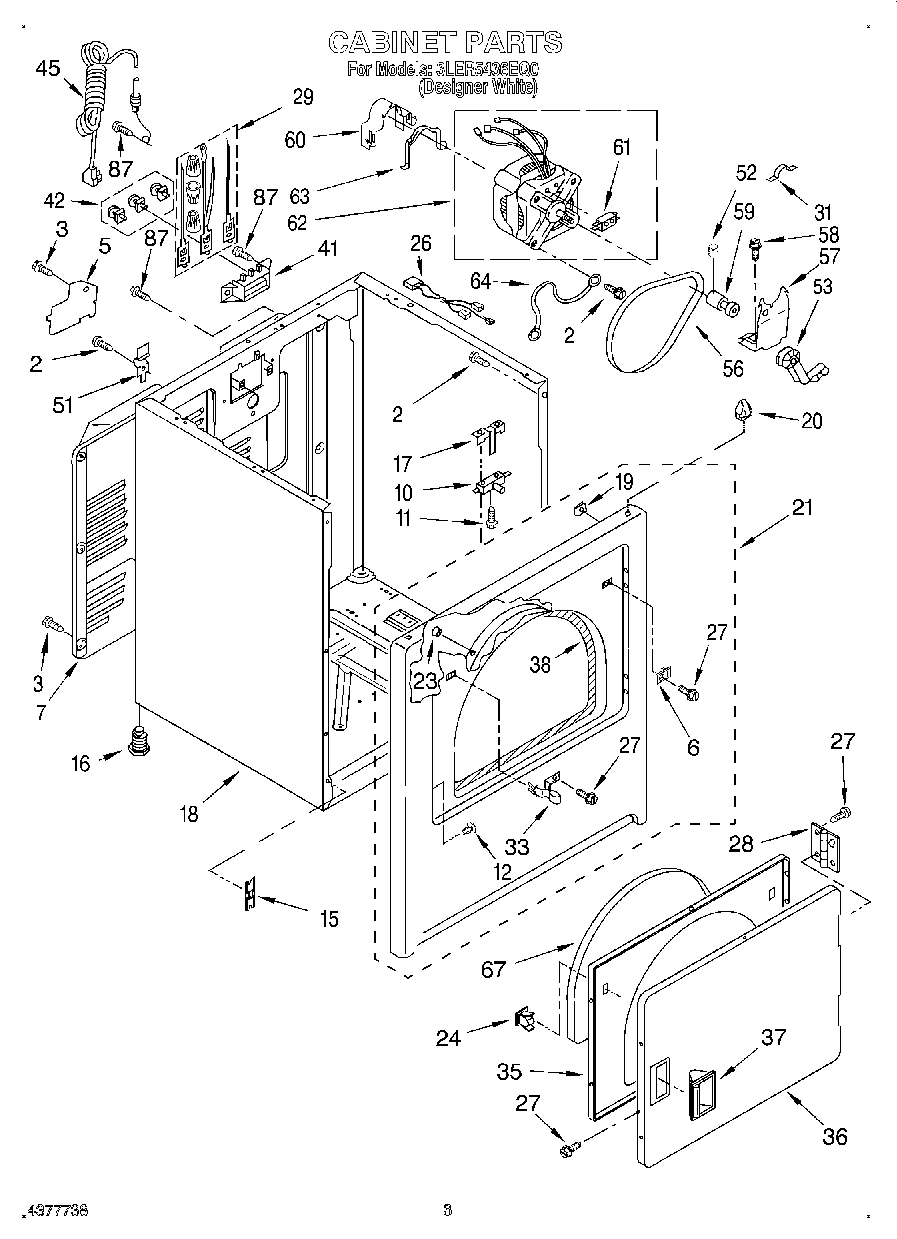

3LER5436EQ0 02 – SECTION

3LER5436EQ0 02 – SECTION

Written by

in

3LER5436EQ0 02 – SECTION

Products

PositionProduct
2SCREW
3WP693995 Whirlpool Screw
5W11539855 Whirlpool Refrigerator Pump
6WP3403630 Whirlpool Plug
7280043 Whirlpool Rear Panel
10W10820036 Whirlpool Door Switch Kit
11Screw, 6-20 x 1-3/8 (2)
12WP3404413 Whirlpool Plug
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17WP691581 Whirlpool Actuator
18Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
26WP3406105 Whirlpool Door Switch
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29279318 Whirlpool Terminal
318528351 Whirlpool Clip
33W11429589 Whirlpool Strike
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
37WP3405184 Whirlpool White Door Handle
38W11035878 Whirlpool Bearing and Seal
41WP3397659 Whirlpool Terminal Block
42279393 Whirlpool Terminal Block Screw and Nut Kit
45Cord, Power
51WP8066217 Whirlpool Hinge
52SCREW, SET
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59W11618508 Whirlpool Drive Motor
60WP3404162 Whirlpool Clamp
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64Wire, Ground (Motor)
67SEAL-DOOR DRYER
87W10850756 Whirlpool Screw
