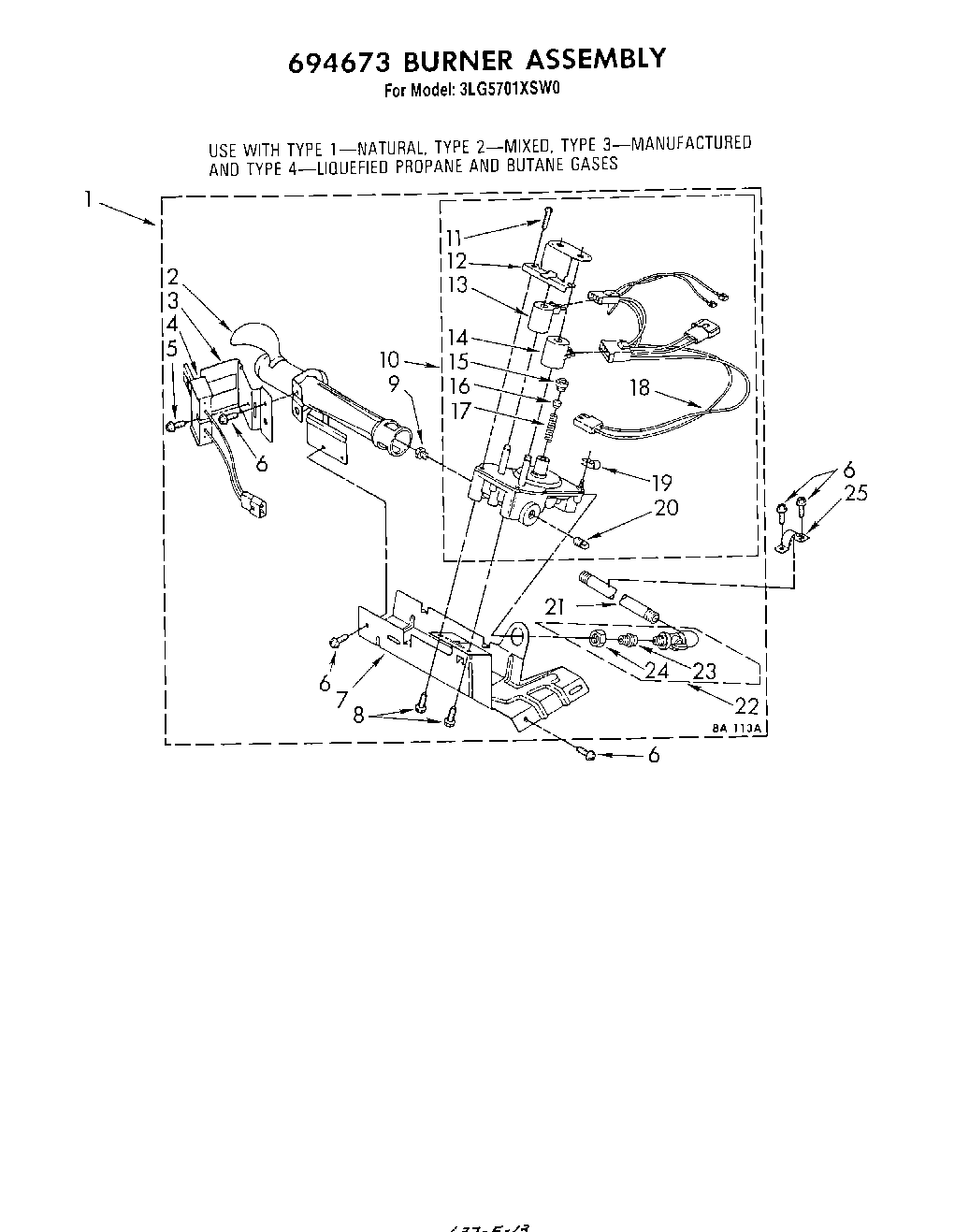

3LG5701XSW0 04 – 694673 BURNER

3LG5701XSW0 04 – 694673 BURNER

Written by

in

3LG5701XSW0 04 – 694673 BURNER

Products

PositionProduct
1Burner Assembly 50 Hz. (Type 1, 2 & 3) (White Rodgers)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP90767 Whirlpool Screw
9Orifice, Burner (Type 1)
9WP15418 Whirlpool Gas Orifice
9Orifice, Burner (Type 3)
9Orifice, Burner (Type 4 (Butane))
9WP229742 Whirlpool Gas Orifice
10Valve, 50 Hz. (Complete)
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
13WP307930 Whirlpool Coil Valve
14WPY307931 Whirlpool Valve Coil
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
18WP3401850 Whirlpool Wire Harness
19WPL 694510
20W10295523 Whirlpool Plug
21Pipe, Gas Supply
22Valve & Union, Shut-Off
233393767 Whirlpool Pipe
24Nut, Compression
25Kit, Conversion Type 1 To Type 3 (MFD)
25341029 Whirlpool Clamp
25695237 Whirlpool Gas LP Conversion
