3LG5706XPW0 02 – TOP AND CONSOLE , MISCELLANEOUS

3LG5706XPW0 02 – TOP AND CONSOLE , MISCELLANEOUS

Written by

in

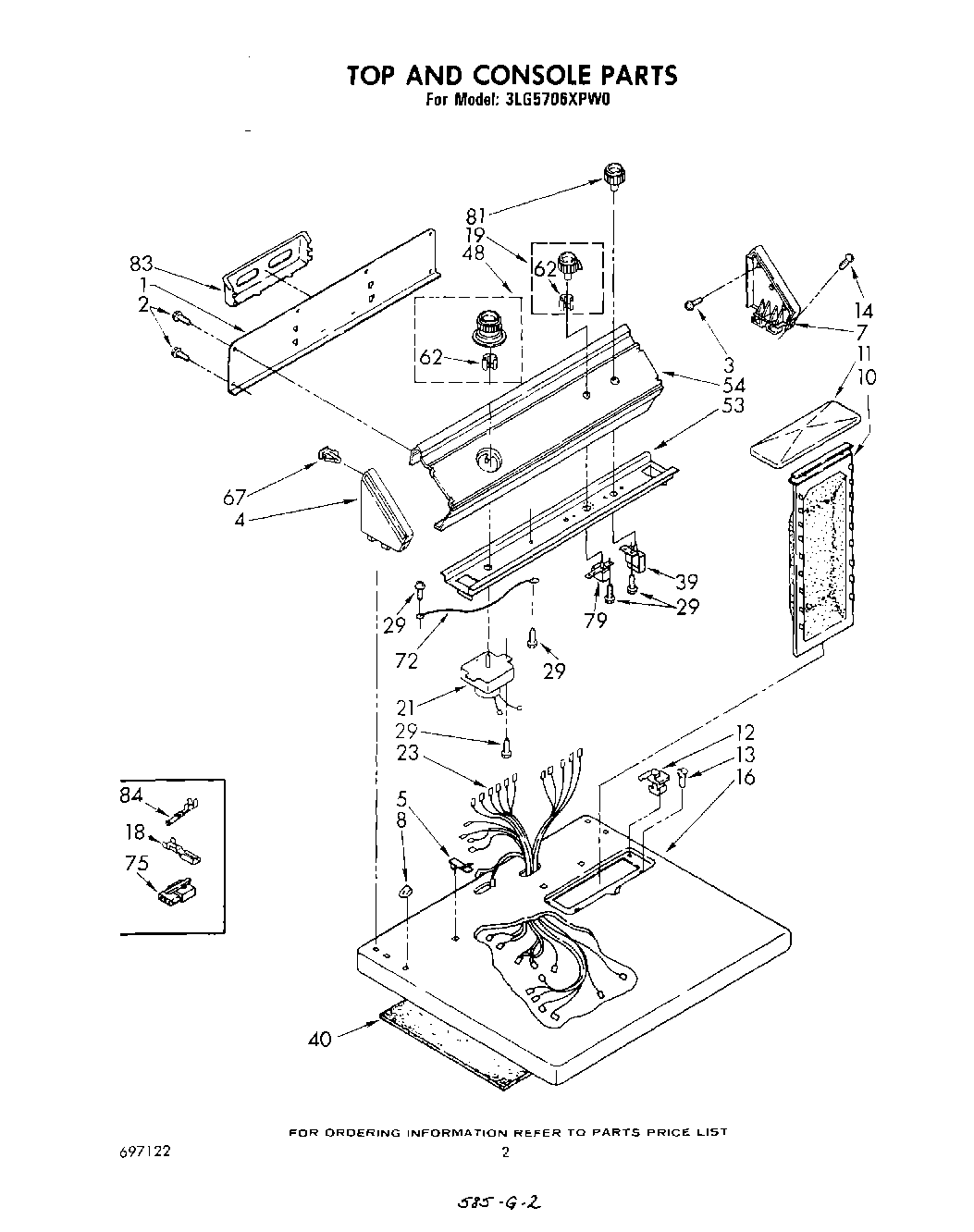

3LG5706XPW0 02 – TOP AND CONSOLE , MISCELLANEOUS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Platinum (Uncut)
	WPL LIT697122
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	WPL LIT677967
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WPL LIT677971
	72113 Whirlpool Touch-Up Paint
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	Golden Harvest
	Golden Harvest (Uncut)
	Washer (Belt Drive)
	Dryer
	Guide, Dryer
	WPL LIT696764
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL LIT697362
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WPL 72112
	Toast
1	Panel, Rear
2	WP489069 Whirlpool Compactor Screw
3	WPL 355326
4	Cap, End (L.H.)
5	Stop, Push-In Top
7	WPL 63795
8	Nut, Push-In (2)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (White)
16	Top (Almond)
16	Top (Golden Harvest)
16	Top (Platinum)
16	Top (Toast)
18	WP94614 Whirlpool Terminal
19	Knob, Water Level
21	Timer Assembly 50 Hz.
23	Harness, Wiring
29	WP3390631 Whirlpool Screw
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
40	WPL 685870
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
79	Switch, Rotary
81	Knob, Push To Start
83	Rack, Literature
84	WP596797 Whirlpool Terminal
