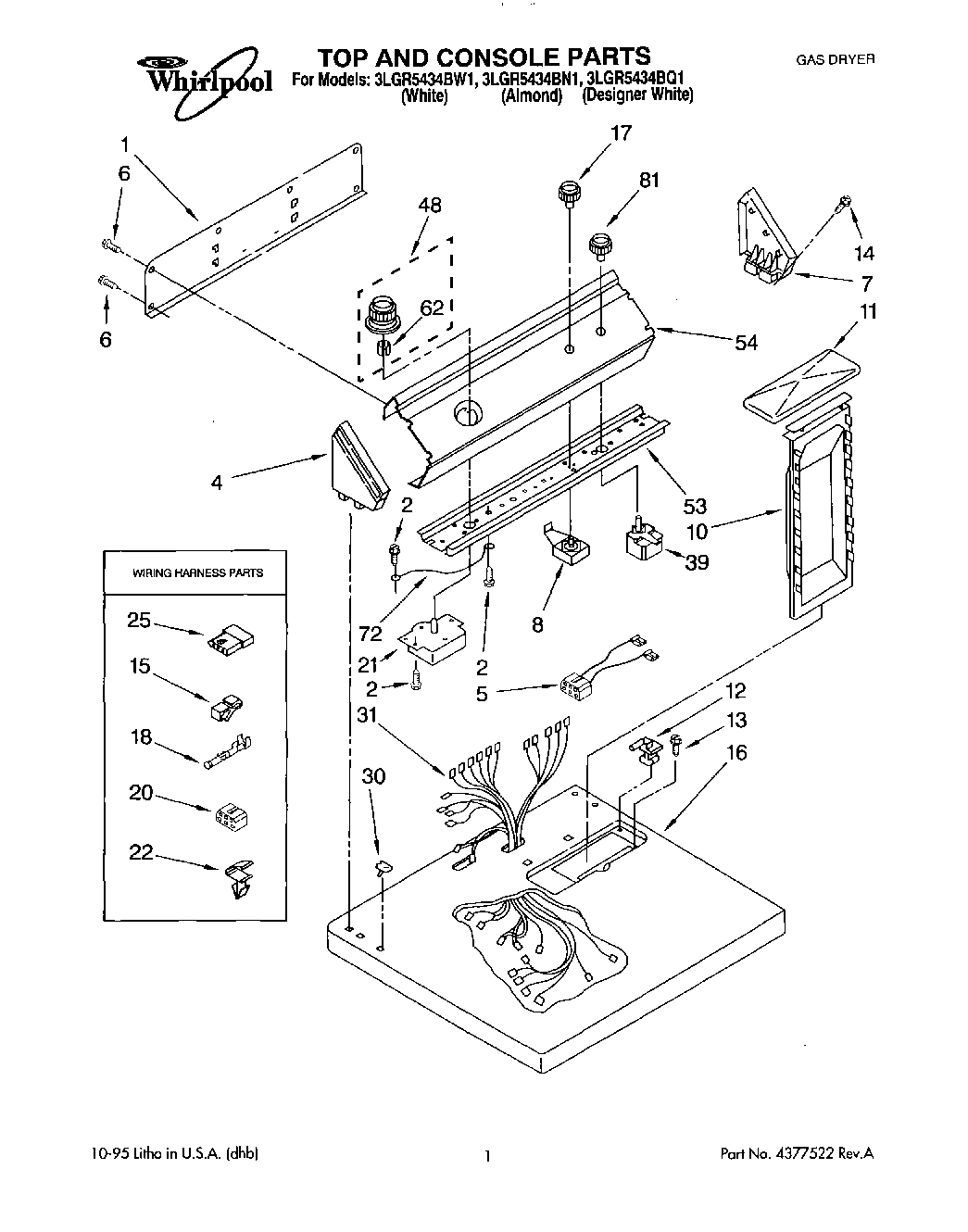

3LGR5434BN1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT3401070
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
WPL LIT3395333
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
Guide, Use & Care
1Panel, Rear Console
2WPW10139210 Whirlpool Screw
4Cap, End (L.H.)
4Cap, End (L.H.) (Almond)
58283286 Whirlpool Wire Harness
6WP693995 Whirlpool Screw
7Cap, End (R.H.)
7Cap, End (R.H.) (Almond)
83399638 Whirlpool Switch
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Clip, Retainer
16Top (White)
16Top (Almond)
17WP3957796 Whirlpool Knob
17KNOB
18WP94614 Whirlpool Terminal
20Block, Disconnect
21WP3396215 Whirlpool Timer
22WP3394427 Whirlpool Clip
25Receptacle, 3-Way Terminal (Use W/94614)
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (Almond)
54Panel, Control (Designer White)
54Panel, Control (White)
62WP688805 Whirlpool Spring Clip
72Wire, Ground
81Wire, 25` Roll (Red 12 Ga.)
81Knob, Push To Start
81Wire, 25` Roll (Blue 16 Ga.)
81WP3957800 Whirlpool Knob
81W10851673 Whirlpool Transformer
81Screw, No. 10
81WP308685 Whirlpool Microwave Screw
81279320 Whirlpool Dryer Rear Terminal Block Kit
