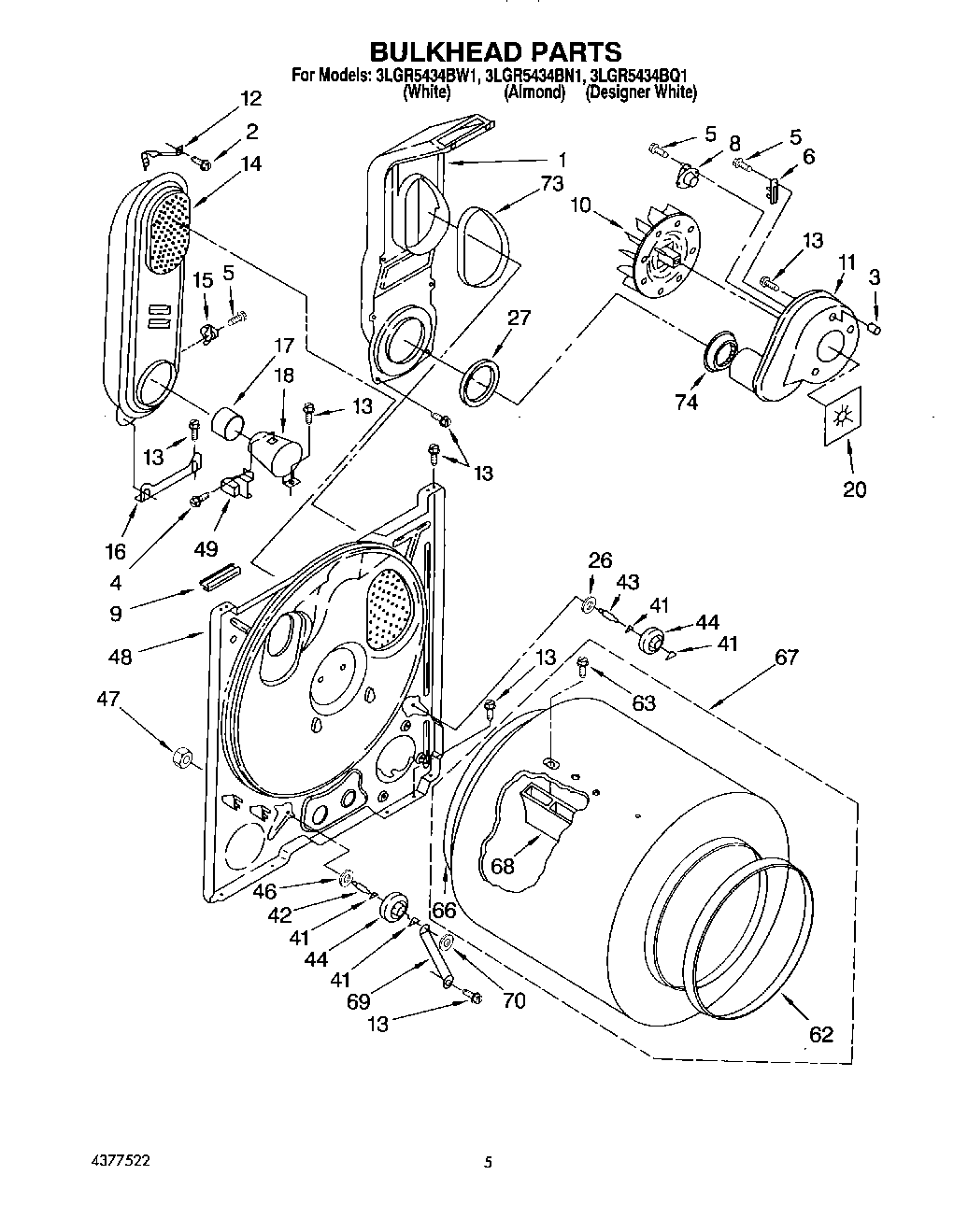

3LGR5434BN1 03 – BULKHEAD

Products

Position	Product
1	279505 Whirlpool Chute
2	WP489463 Whirlpool Refrigerator Screw
3	W10491983 Whirlpool Tine Tip
4	WP3390631 Whirlpool Screw
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387137 Whirlpool Thermostat
9	686889 Whirlpool Pad
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
13	SCREW
15	W11568973 Whirlpool Thermostat Fix
16	Support, Heater Box
18	279900 Whirlpool Box O/S1
20	Seal, Blower
26	WP3388703 Whirlpool Washer
27	W11415783 Whirlpool Seal
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	Bulkhead
49	WP338906 Whirlpool Dryer Gas Sensor
62	WP3394509 Whirlpool Bearing Ring
63	WPW10109200 Whirlpool Screw
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	697760 Whirlpool Drum Assembly Primary OS2
68	WP342847 Whirlpool Drum Baffle
69	W11684613 Whirlpool Bracket
70	WP90296 Whirlpool Clip
73	SEAL
74	W11233063 Whirlpool Shield Assembly
