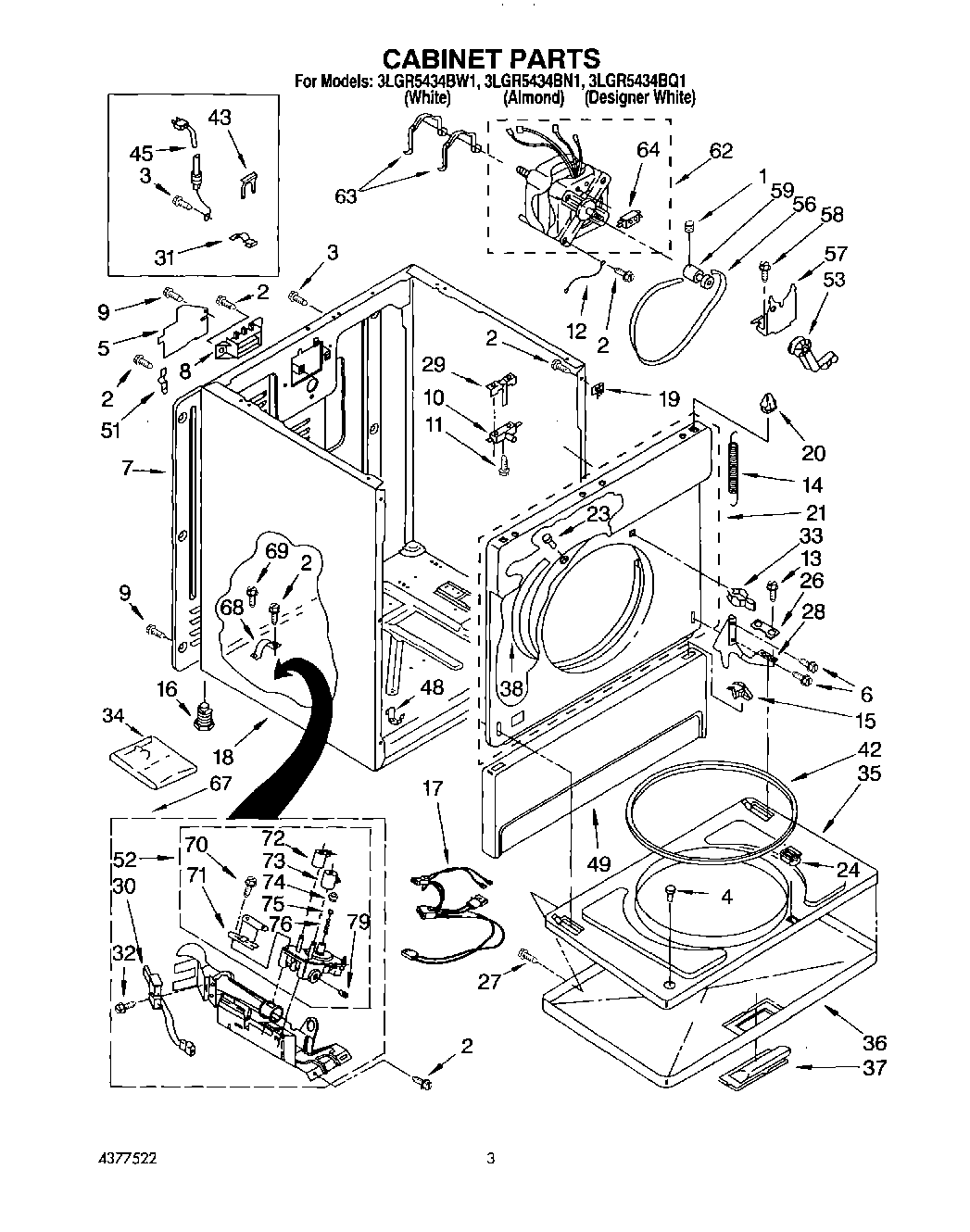

3LGR5434BQ1 02 – CABINET

3LGR5434BQ1 02 – CABINET

Written by

in

3LGR5434BQ1 02 – CABINET

Products

Position	Product
1	SCREW, SET
3	W10850756 Whirlpool Screw
4	238614 Whirlpool Bumper Hinge
5	W11539855 Whirlpool Refrigerator Pump
6	Screw, 10-32 x 1/2
7	280040 Whirlpool Rear Panel
8	279320 Whirlpool Dryer Rear Terminal Block Kit
9	WP693995 Whirlpool Screw
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	Wire, Ground (Motor)
13	WP308685 Whirlpool Microwave Screw
14	Spring, Door (2)
15	WP3388229 Whirlpool Dryer Spring Clip
16	49621 Whirlpool Leveling Feet
17	WP3401850 Whirlpool Wire Harness
18	Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
18	Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (Almond)
21	Front Panel Assembly (White)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	Hinge, L.H.
28	Hinge, R.H.
29	WP691581 Whirlpool Actuator
30	279311 Whirlpool Dryer Flat Igniter with Bracket
31	8528351 Whirlpool Clip
32	WPW10366705 Whirlpool Screw
34	49572A Whirlpool Dryer Propane Gas Conversion Kit
35	Door, Rear
36	Door, Front (Almond)
36	Door, Front (White)
37	WP348721 Whirlpool Handle
37	Handle, Door (Almond)
38	279264 Whirlpool Bearing and Seal Kit
42	WP3390733 Whirlpool Door Seal Assembly
43	W11712577 Whirlpool Clip
45	Cord, Power
48	WP297092 Whirlpool Clip
49	Panel, Toe (Almond)
49	Panel, Toe (White)
51	WP8066217 Whirlpool Hinge
52	Valve, 50 Hz. (Complete)
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	W11618508 Whirlpool Drive Motor
63	WP660658 Whirlpool Clamp
64	279827 Whirlpool Dryer Drive Motor
67	WPL 3401772
68	341029 Whirlpool Clamp
69	SCREW
70	694421 Whirlpool Screw Assembly
71	694538 Whirlpool Bracket
72	WP307930 Whirlpool Coil Valve
73	WPY307931 Whirlpool Valve Coil
74	WP694424 Whirlpool Limiter
75	WP694423 Whirlpool Regulator
76	WP694422 Whirlpool Spring
79	W10295523 Whirlpool Plug
