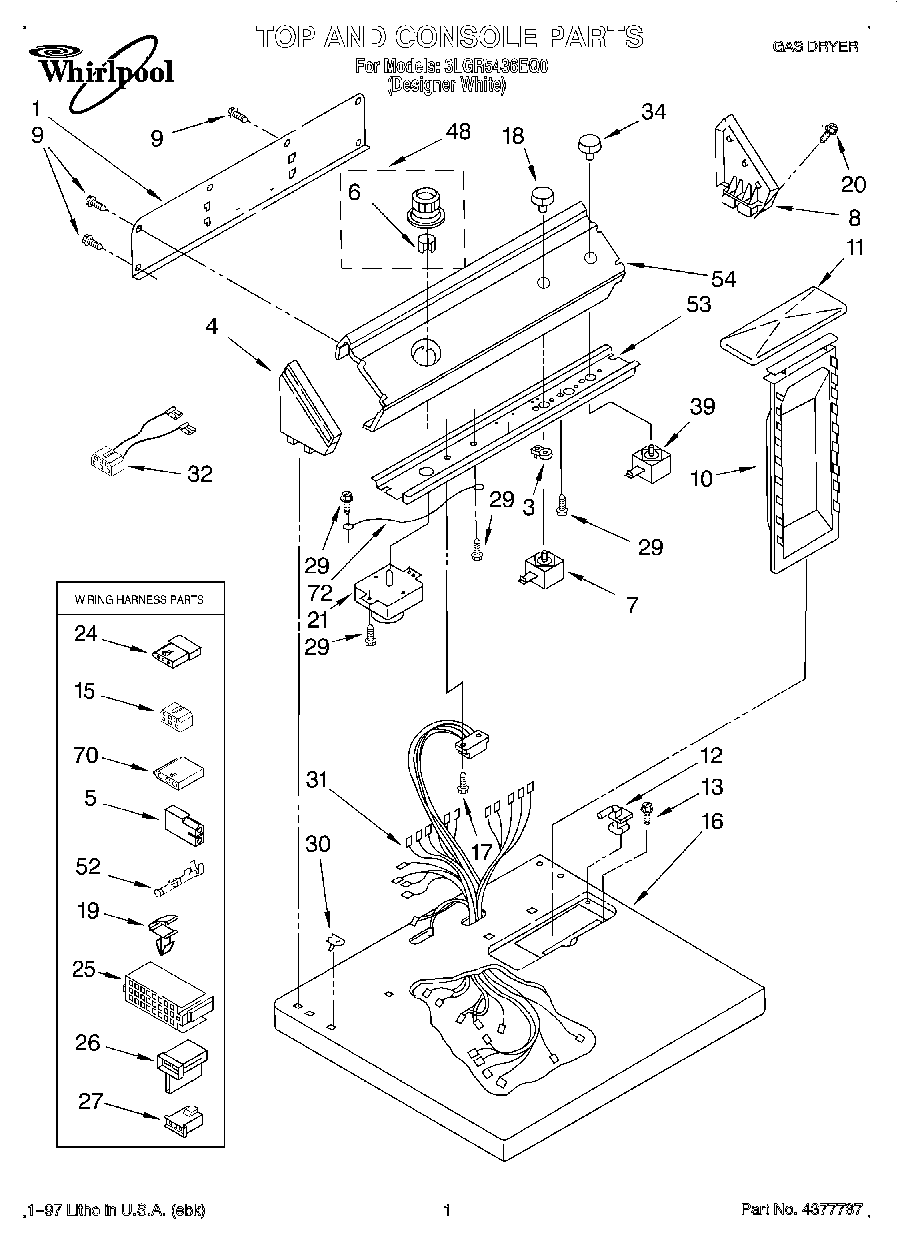

3LGR5436EQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

3LGR5436EQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

3LGR5436EQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
W10851673 Whirlpool Transformer
Almond (Uncut)
Guide, Use & Care
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
WP3397659 Whirlpool Terminal Block
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
Label, Wiring Diagram
Instructions, Installation
1Panel, Rear Console
3279872 Whirlpool Resistor
4Cap, End (L.H.)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6WP688805 Whirlpool Spring Clip
73399638 Whirlpool Switch
8Cap, End (R.H.)
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
15Block, Disconnect
16Top (White)
17SCREW
18WP3957796 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3396215 Whirlpool Timer
24353424 Whirlpool Connector
25W10113937 Whirlpool Clamp
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
328283286 Whirlpool Wire Harness
34WP3957800 Whirlpool Knob
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
70Connector (Door Switch)
72Wire, Ground
