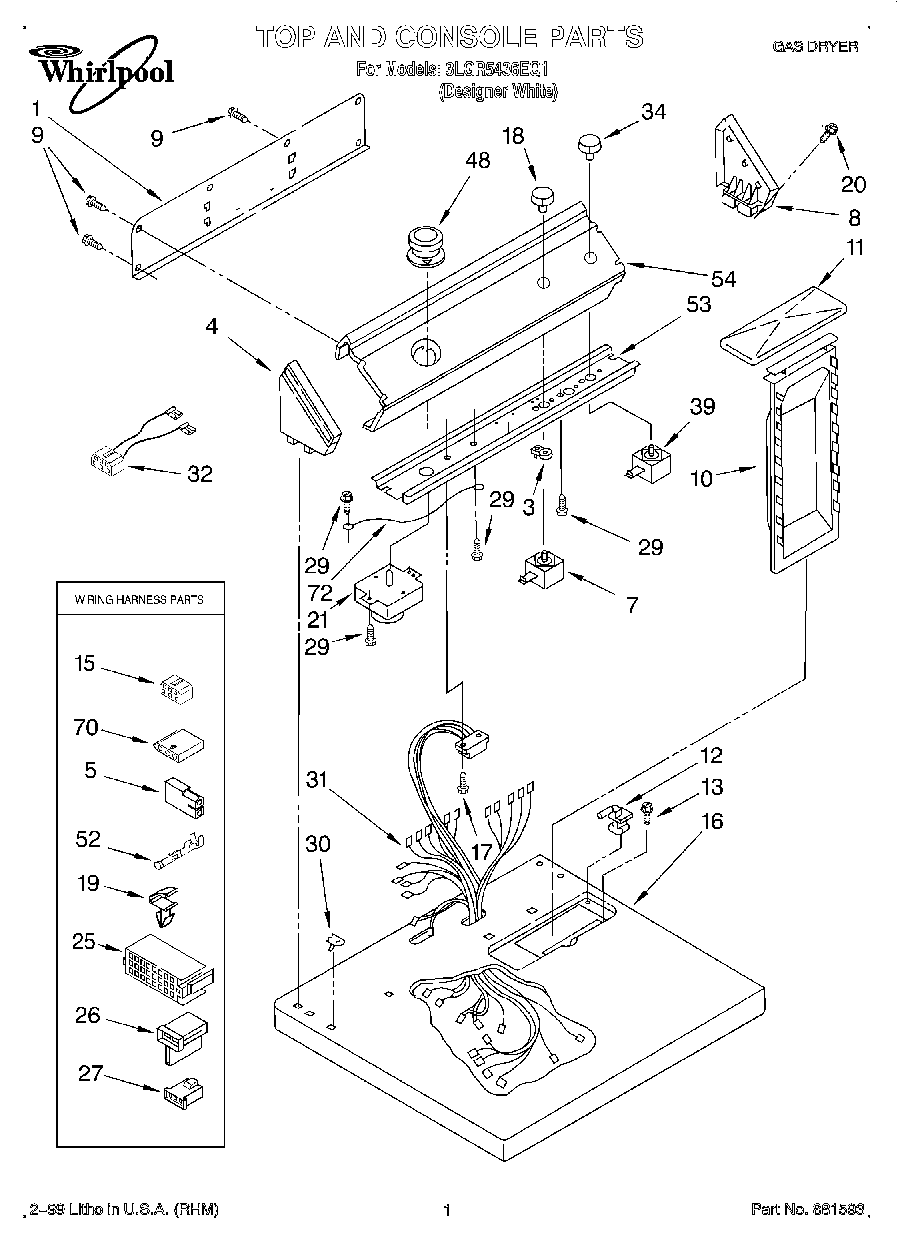

3LGR5436EQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	WP3397659 Whirlpool Terminal Block
	Almond (Uncut)
	Guide, Use & Care
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Label, Wiring Diagram
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Instructions, Installation
	W10851673 Whirlpool Transformer
1	Panel, Rear Console
3	279872 Whirlpool Resistor
4	Cap, End (L.H.)
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
7	3399638 Whirlpool Switch
8	Cap, End (R.H.)
9	WP693995 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	Block, Disconnect
16	Top (White)
17	SCREW
18	WP3957796 Whirlpool Knob
19	WP3394427 Whirlpool Clip
20	WP388326 Whirlpool Screw
21	WP3396215 Whirlpool Timer
25	W10113937 Whirlpool Clamp
26	WP3403499 Whirlpool Connector
27	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8283286 Whirlpool Wire Harness
34	WP3957800 Whirlpool Knob
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control
70	3936144 Whirlpool Connector
72	Wire, Ground
