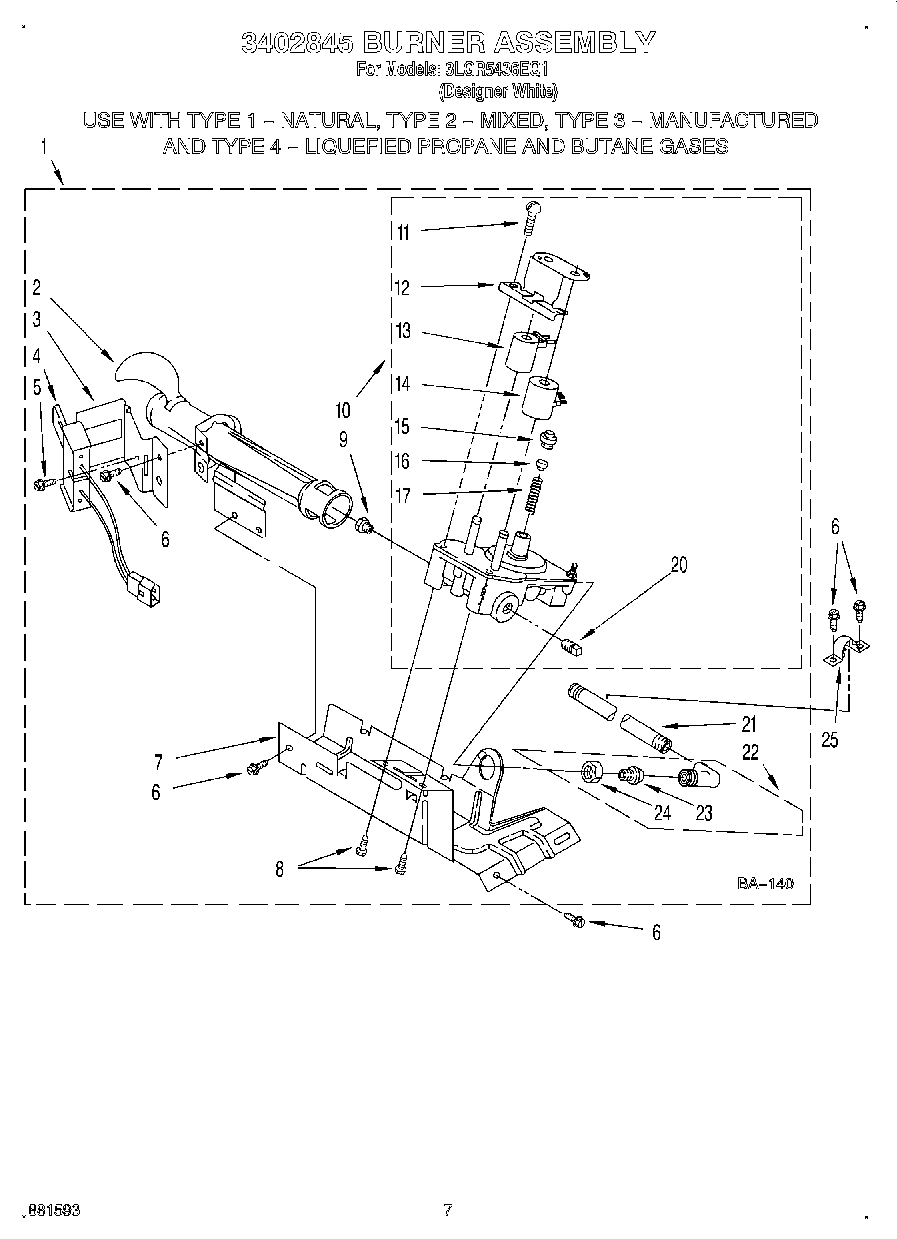

3LGR5436EQ1 04 – 3402845 BURNER ASSEMBLY

Products

Position	Product
1	Burner Assembly, 50 Hz. (See Parts Page For Further Burner Breakdown)
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	Orifice, Burner (Type 2)
9	Orifice, Burner (Type 3)
9	WP234868 Whirlpool Gas Orifice
9	WP229742 Whirlpool Gas Orifice
9	ORIFICE, BURNER TYPE 1
10	WP8281918 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
13	WP307930 Whirlpool Coil Valve
14	WPY307931 Whirlpool Valve Coil
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
20	W10295523 Whirlpool Plug
21	Pipe, Gas Supply
22	Elbow Union Assembly
23	3393767 Whirlpool Pipe
24	Nut, Compression
25	695237 Whirlpool Gas LP Conversion
25	341029 Whirlpool Clamp
