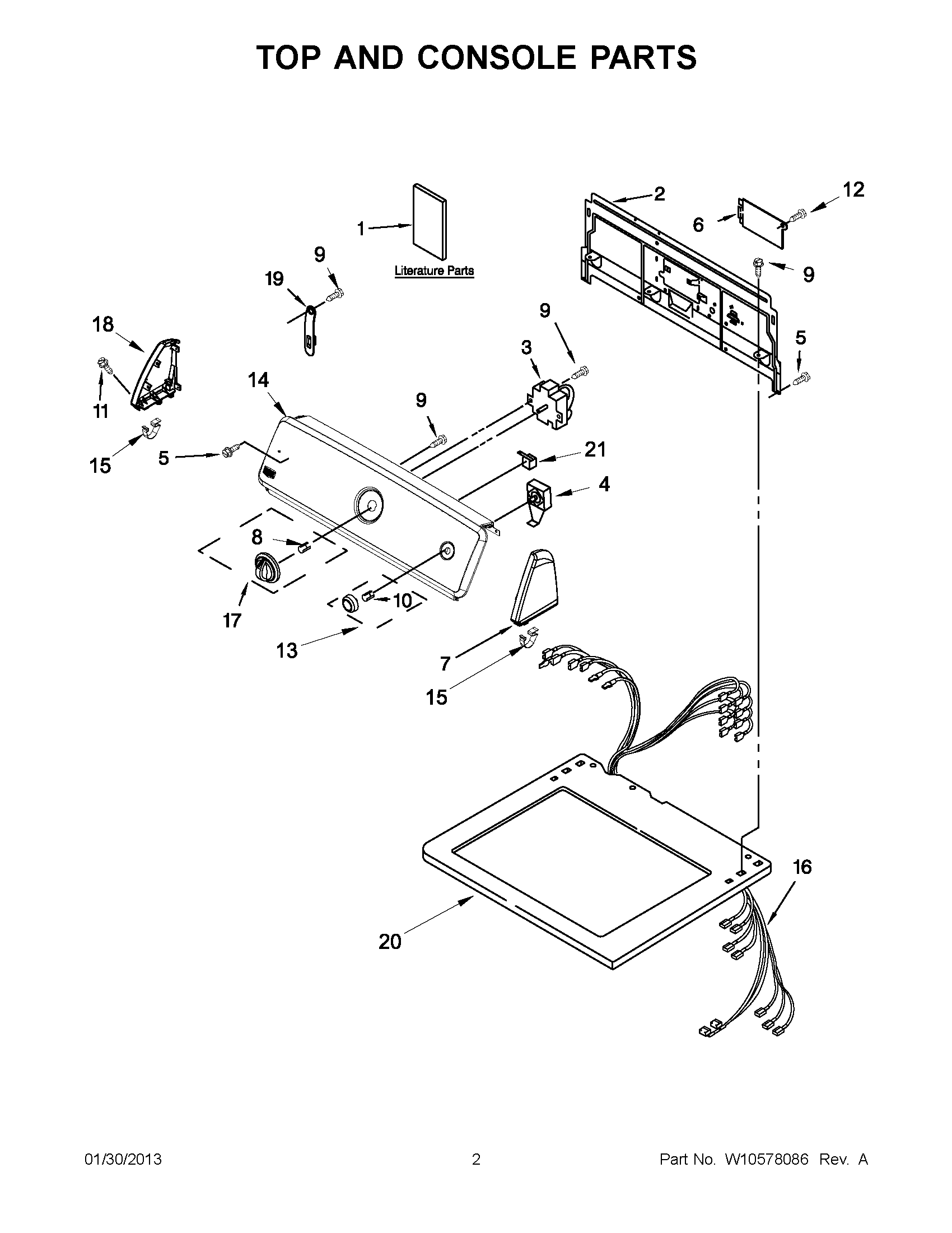

3LMEDC100YW1 01 – TOP AND CONSOLE PARTS
Written by
in
3LMEDC100YW1 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
MAY W10454272
1
MAY W10462987
1
MAY W10474769
2
MAY 8317305
3
MAY W10463283
4
MAY 8543274
5
SCREW,8-18 X 3/8
6
MAY W10096918
7
END CAP (RIGHT) (WHITE)
8
Spring, Clip Knob
9
SCREW
10
CLIP, SPRING
11
MAY 3348629
12
Screw, 8-32 x 1/32
13
ASSEMBLY, CONTROL KNOB (GREY)
14
MAY W10474738
15
MAY 8312709
16
MAY W10450295
17
ASSEMBLY, KNOB & DIAL (GREY)
18
END CAP (LEFT) (WHITE)
19
Strap, Console
20
TOP
21
Mini-Buzzer
←
