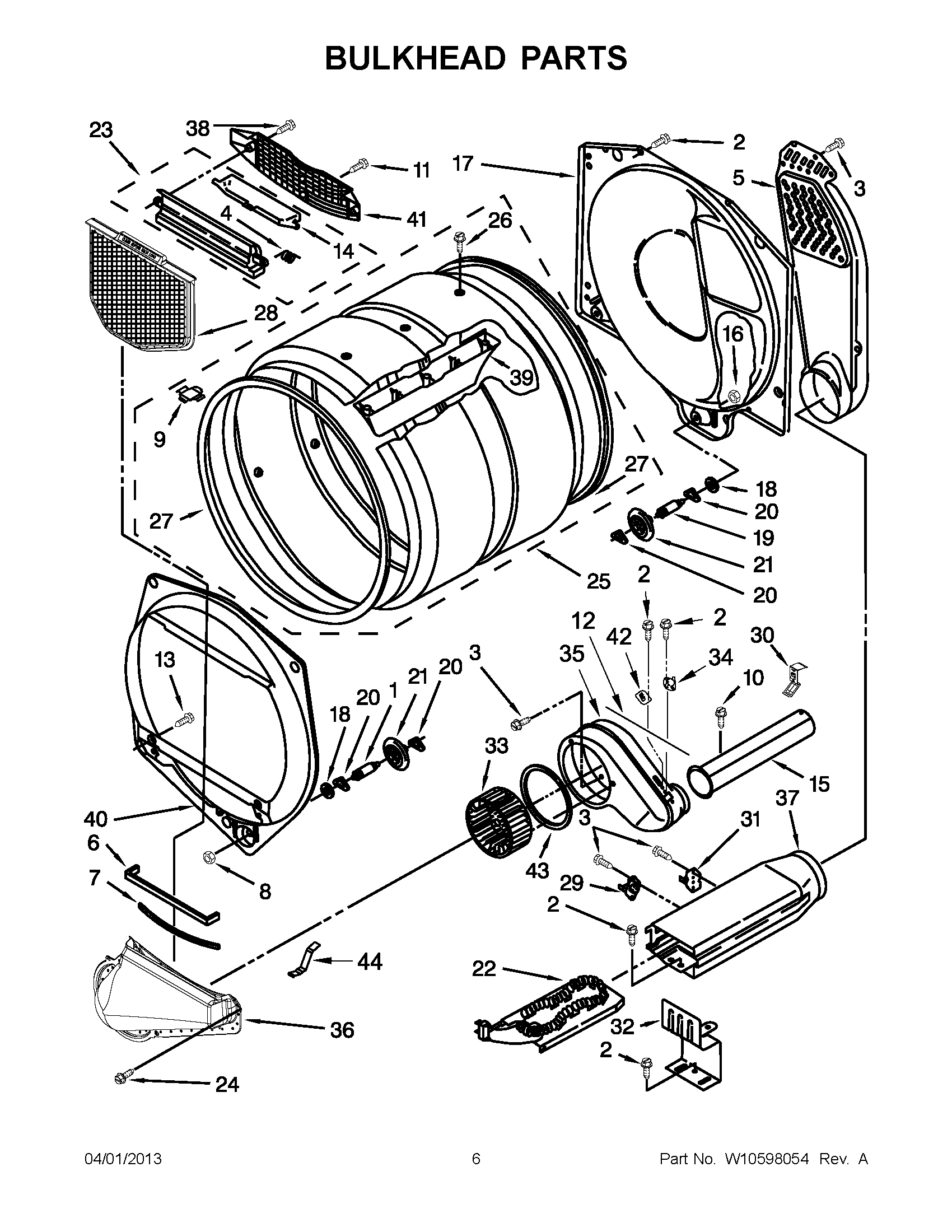

3LMEDC100YW2 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	SCREW,8-18 X 3/8
4	Spring, Lint Screen Door
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	CAP, PLUG
10	MAY 8533971
11	Screw, 8-18 x 1/2
12	SEAL, PLATE COVER
13	SCREW
14	MAY W10181925
15	Exhaust Pipe
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 3387809
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	Element, Heater
23	OUTLET HOUSING ASSEMBLY
24	Screw
25	MAY W10545922
26	MAY W10219342
27	MAY W10521118
28	MAY W10049370
29	THERMOSTAT 250Â° F / 170F NC
30	CLIP, EXHAUST
31	Thermal Cut-Off
32	MAY W10119253
33	MAY W10349492
34	MAY W10168174
35	MAY 8544363
36	Lint Duct Assembly
37	HEATER BOX,
38	SCREW
39	BAFFLE, DRUM
40	BULKHEAD, FRONT
41	MAY W10181926
42	THERMAL-LIMITER (89 C)
43	SEAL, PLATE COVER
44	CLIP, SPRING
