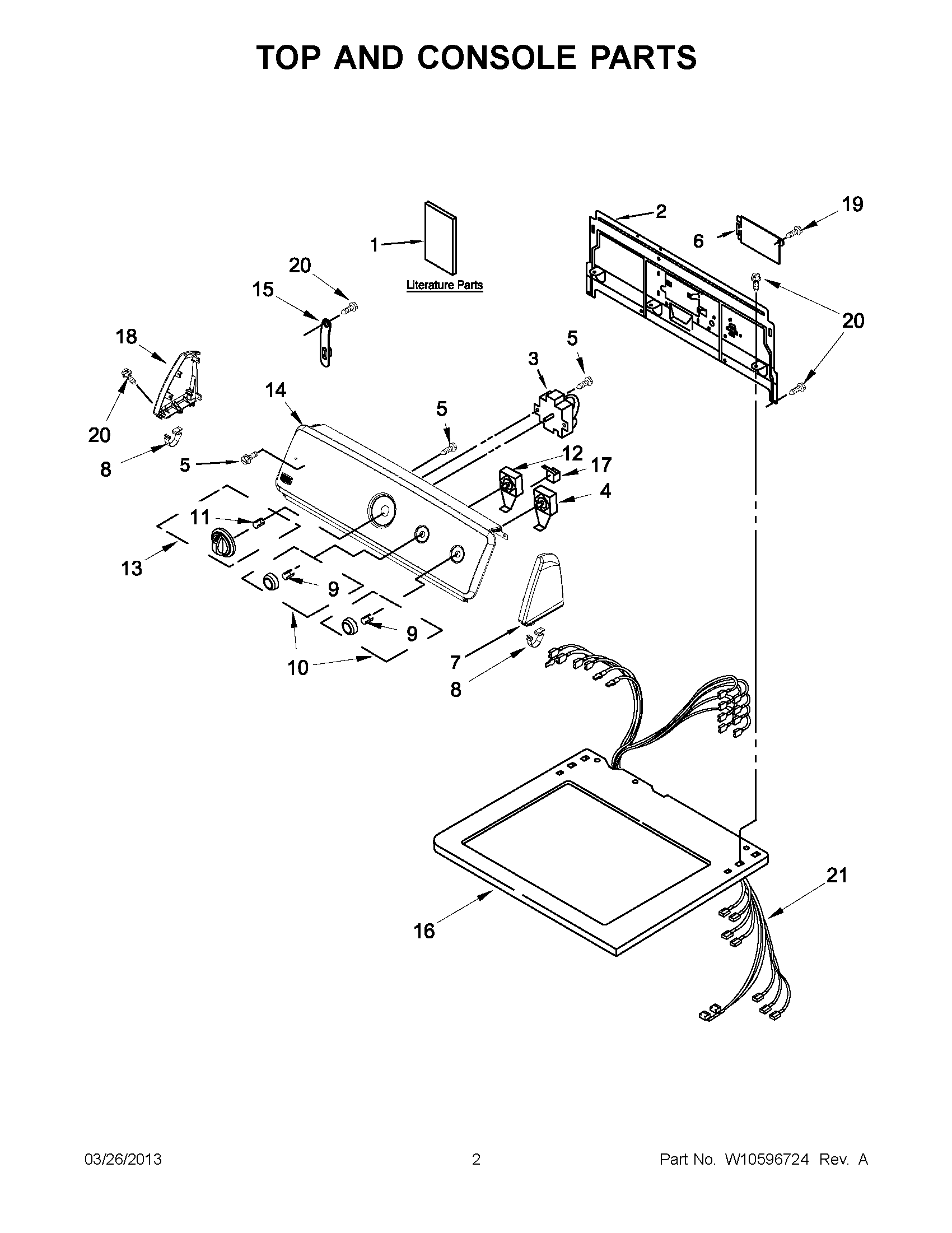

3LMEDC300YW2 01 – TOP AND CONSOLE PARTS

3LMEDC300YW2 01 – TOP AND CONSOLE PARTS

Written by

in

3LMEDC300YW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10536446
1MAY W10454272
1MAY W10462987
2MAY W10121161
3ASSEMBLY, TIMER (60HZ.)
4MAY W10238464
5SCREW,8-18 X 3/8
6MAY W10096918
7END CAP (RIGHT) (WHITE)
8MAY 8312709
9CLIP, SPRING
10ASSEMBLY, CONTROL KNOB (GREY)
11Spring, Clip Knob
12Switch, (End Of Cycle)
13ASSEMBLY, KNOB & DIAL (GREY)
14MAY W10474739
15Strap, Console
16TOP
17Mini-Buzzer
18END CAP (LEFT) (WHITE)
19Screw, 8-32 x 1/32
20MAY 3348629
21HARNESS, MAIN
