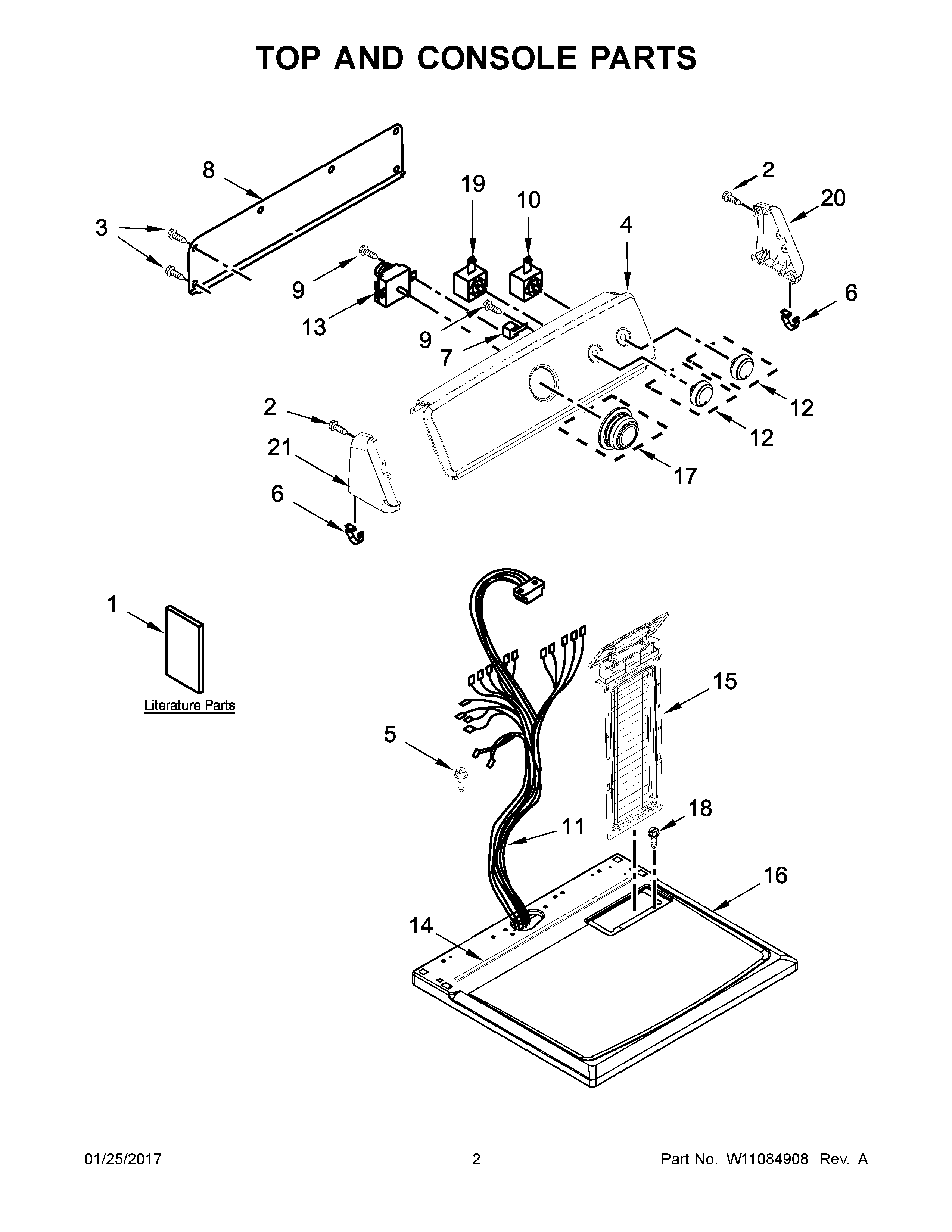

3LMEDC315FW0 02 – TOP AND CONSOLE PARTS

3LMEDC315FW0 02 – TOP AND CONSOLE PARTS

Written by

in

3LMEDC315FW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1AWIRING DIAGRAM
1BINSTALLATION INSTRUCTIONS
2MAY 8533971
3Screw
4ASSEMBLY, PANEL & BRACKET (WHITE)
5SCREW
6MAY 8312709
7MAY 3952439
8MAY W10103406
9MAY 3348629
10SWITCH, PUSH TO START
11MAIN, WIRING HARNESS
12MAY W10562155
13TIMER, 60 HZ.
14MAY W10316616
15MAY W10717210
16MAY 8559800
17MAY W10558463
18SCREW
19Switch, (End Of Cycle)
20END CAP (RIGHT) (WHITE)
21END CAP (LEFT) (WHITE)
