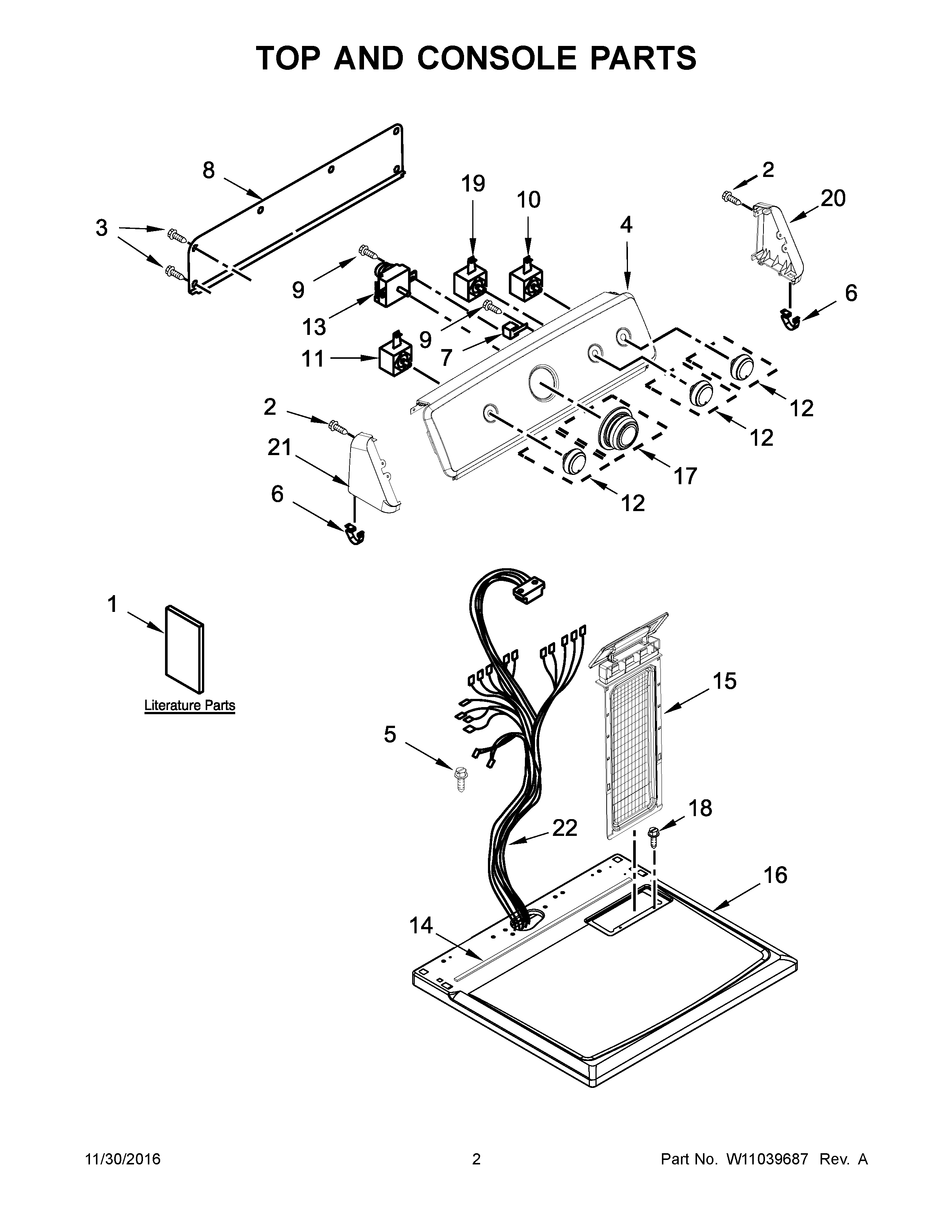

3LMEDC415FW0 02 – TOP AND CONSOLE PARTS
Written by
in
3LMEDC415FW0 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1B
INSTALLATION INSTRUCTIONS
1A
WIRING DIAGRAM
1
USE AND CARE GUIDE
2
MAY 8533971
3
Screw
4
MAY W10804424
5
SCREW
6
MAY 8312709
7
MAY 3952439
8
MAY W10103406
9
MAY 3348629
10
SWITCH, PUSH TO START
11
Switch-Rotary
12
MAY W10562155
13
TIMER, 60 HZ.
14
MAY W10316616
15
MAY W10717210
16
MAY 8559800
17
MAY W10558463
18
SCREW
19
Switch, (End Of Cycle)
20
END CAP (RIGHT) (WHITE)
21
END CAP (LEFT) (WHITE)
22
MAY W10804460
←
