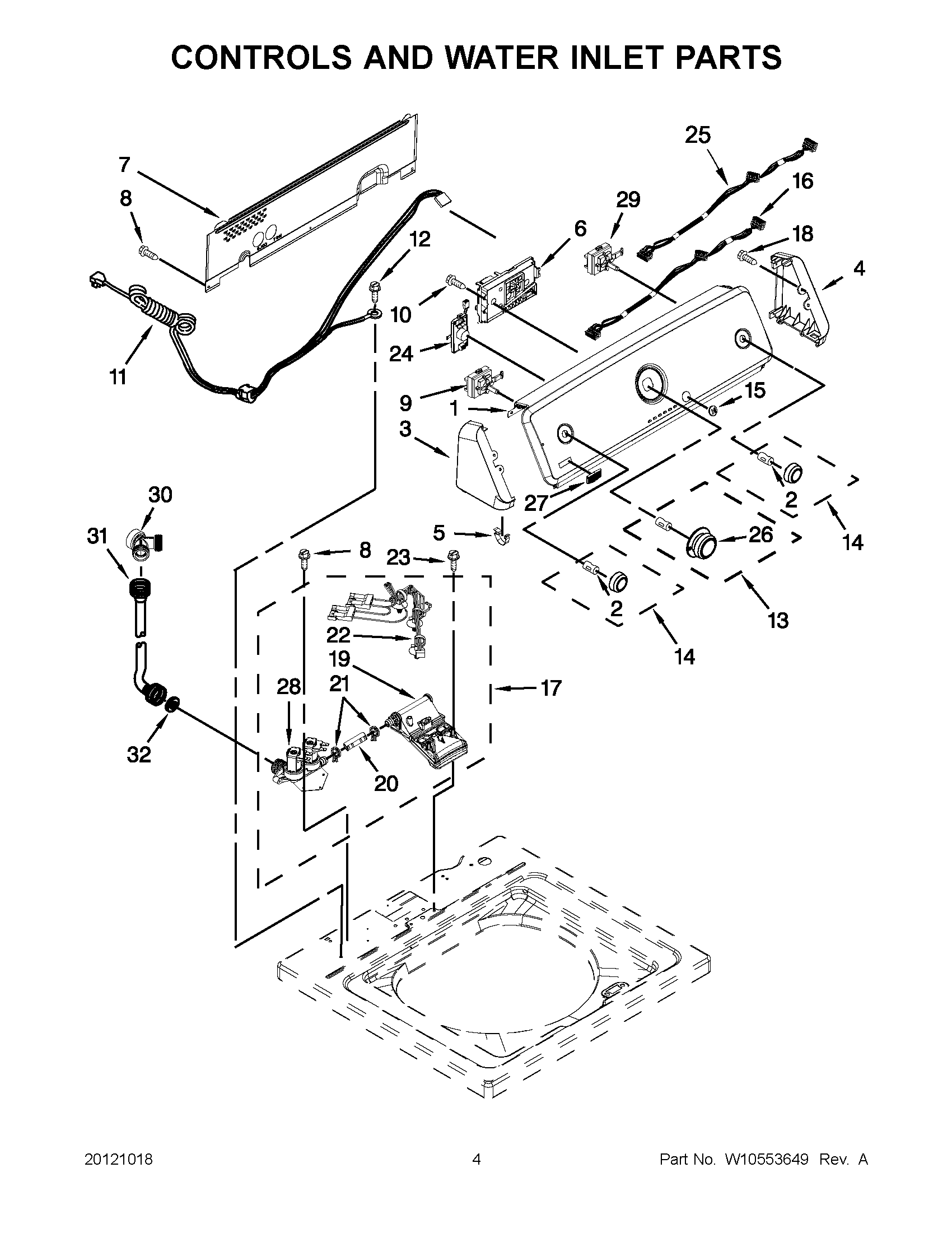

3LMVWC100YW1 02 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
NI	10A CORD LOCK
NI	10A CORD ADAPTER (BRITISH)
NI	LINER (NOT A SERVICEABLE PART)
NI	10A CORD ADAPTER (EUROPEAN)
1	MAY W10464666
2	CLIP, SPRING
3	END CAP (LEFT) (WHITE)
4	END CAP (RIGHT) (WHITE)
5	MAY 8312709
6	MAY W10480084
7	MAY W10420985
8	MAY 1157158
9	SWITCH, ROTARY ENCODER
10	SCREW,8-18 X 3/8
11	MAY W10446856
12	Screw, 10-32 x 5/8
13	ASSEMBLY, KNOB & DIAL (GREY)
14	ASSEMBLY, CONTROL KNOB (GREY)
15	MAY W10251309
16	MAY W10481152
17	MAY W10360889
18	MAY 359625
19	MAY W10441423
20	MAY W10238347
21	MAY W10117298
22	MAY W10474662
23	Screw
24	MAY W10522615
25	MAY W10480948
26	Spring, Clip Knob
27	MAY W10323734
28	MAY W10356260
29	SWITCH, ROTARY ENCODER
30	MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
31	Hose, Water Inlet (Red)
31	Hose, Water Inlet (Blue)
32	MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
