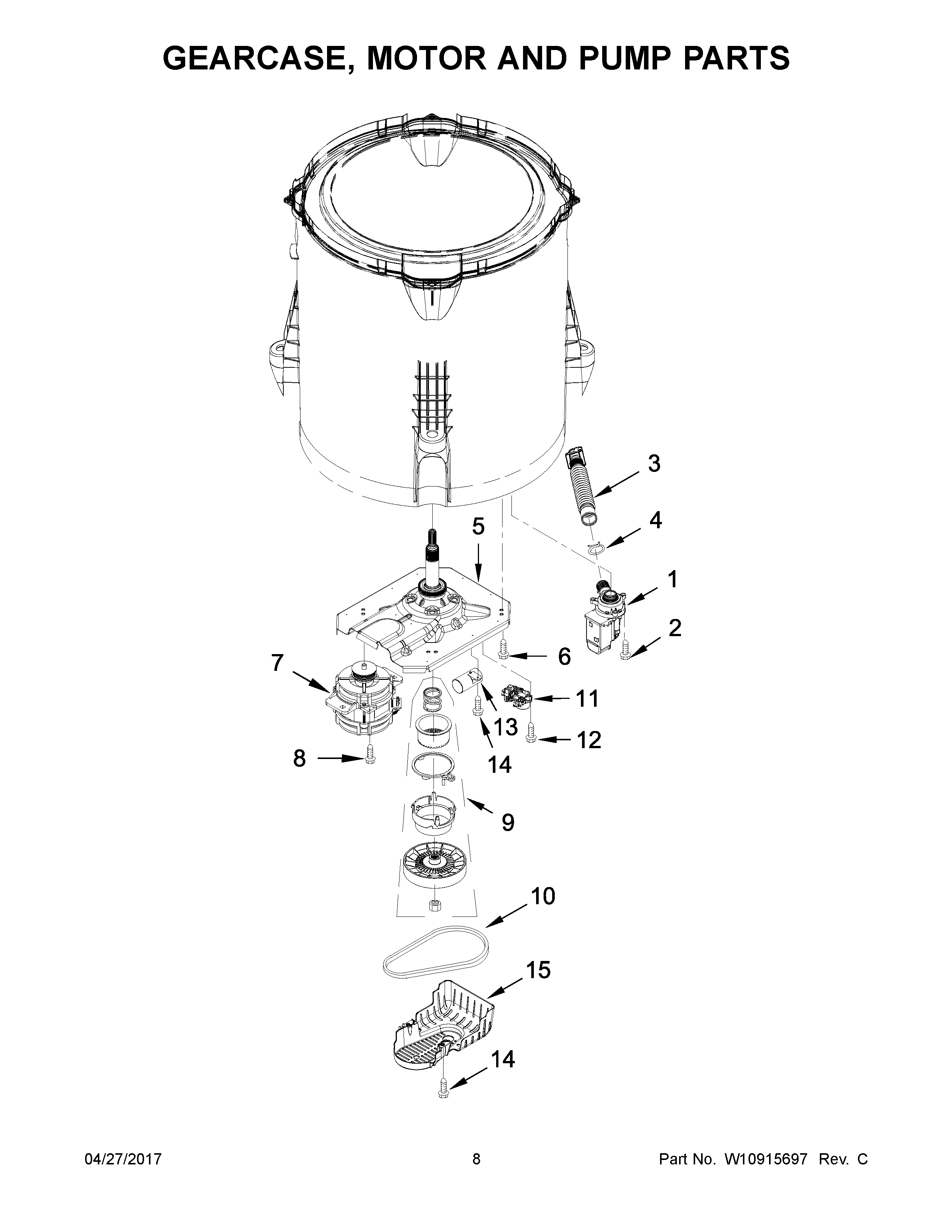

3LMVWC315FW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

Products

Position	Product
1	PUMP ASSEMBLY, DRAIN
2	SCREW
3	MAY W10763078
4	MAY 8317496
5	MAY W10473144
6	SCREW
7	MAY W11028438
8	BOLT, COUNTERWEIGHT
9	SPRING, SPLUTCH
10	SLIDER, SPLUTCH (INCLUDES ITEMS 9, 11, 12 AND 13)
11	CAM RING, SPLUTCH
12	CAM, SPLUTCH
13	PULLEY
14	NUT
15	BELT, DRIVE
16	ACTUATOR, SHIFT
17	SCREW
18	CAPACITOR, MOTOR RUN
19	SCREW
20	MAY W10427633
