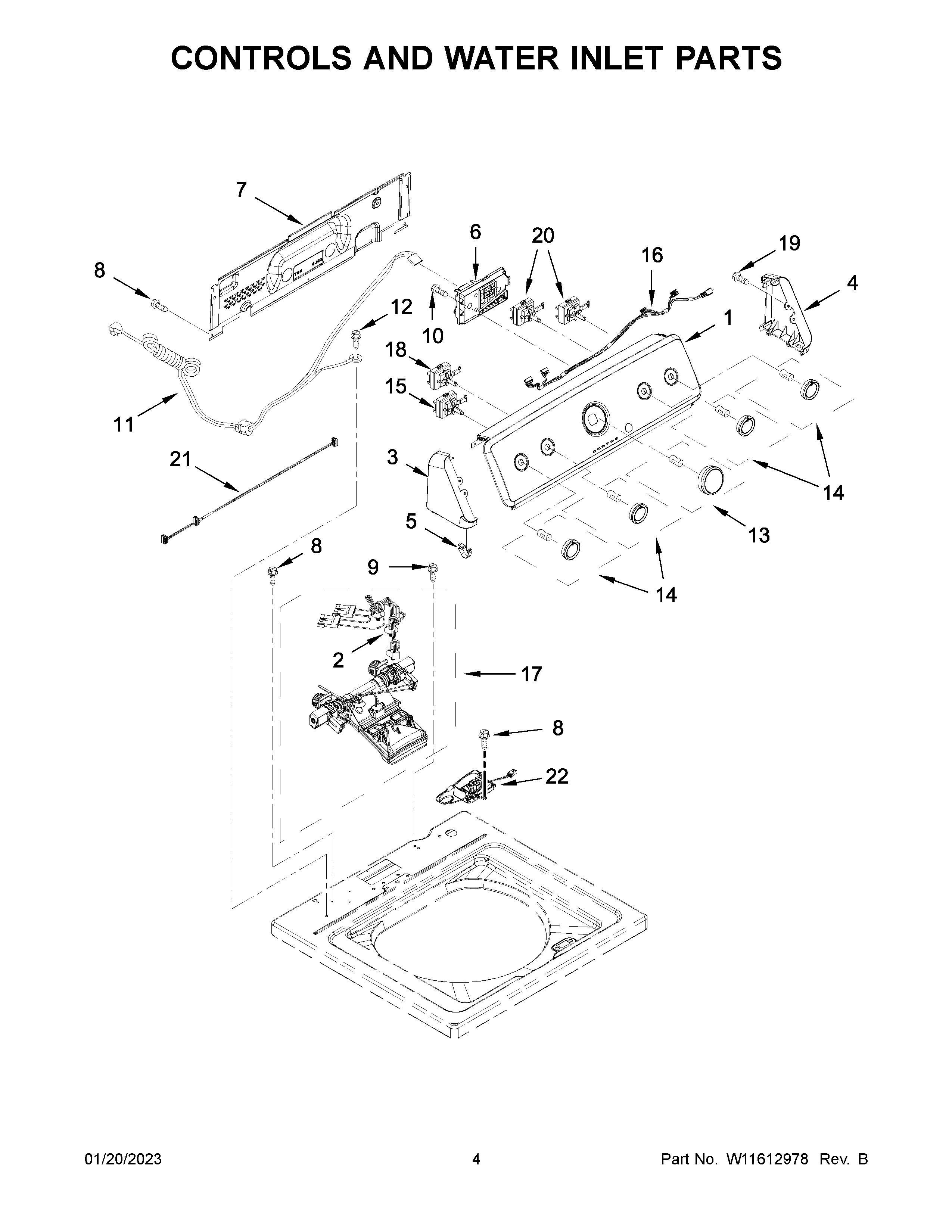

3LMVWC315FW1 03 – CONTROLS AND WATER INLET PARTS

3LMVWC315FW1 03 – CONTROLS AND WATER INLET PARTS

Written by

in

3LMVWC315FW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NIWPW10476820 Whirlpool Adapter
NICABINET (NOT A SERVICEABLE PART)
NICORD ADAPTER, EUROPEAN
NI10A CORD LOCK
NIWPW10476822 Whirlpool Adapter
NIWPW10475423 Whirlpool Adapter
1PANEL, CONSOLE
2HARNESS, VALVE
3END CAP (LEFT) (WHITE)
4END CAP (RIGHT) (WHITE)
5WP8312709 Whirlpool Endcap Clip
6W11608064-includeCORE Whirlpool W11608064 Refrigerator Electronic Control Board + Core
7WPW10461159 Whirlpool Rear Panel
8W11568617 Whirlpool Screw
9WPW10213953 Whirlpool Screw
10WP90767 Whirlpool Screw
11W10834290 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13WPW10558463 Whirlpool Knob Assembly
14WPW10562155 Whirlpool Knob
15WPW10285517 Whirlpool Cycle Switch
16W10694685 Whirlpool Wire Harness
17W11038628 Whirlpool Valve Assembly
18WPW10285512 Whirlpool Cycle Switch
19W11693756 Whirlpool Screw Assembly
20WPW10285511 Whirlpool Cycle Switch
21W10694682 Whirlpool Wire Harness
22W11660637 Whirlpool Filter
