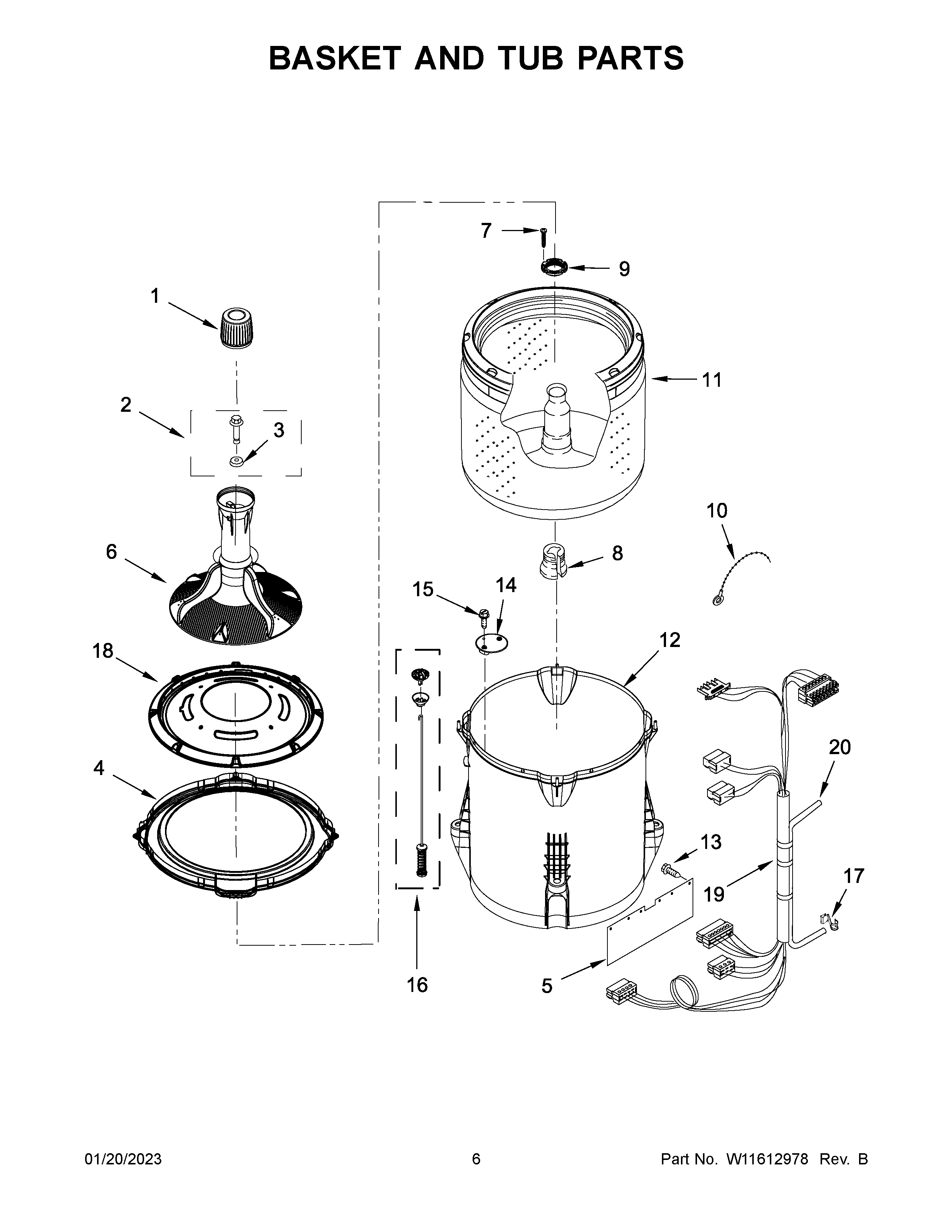

3LMVWC315FW1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	W10863011 Whirlpool Dispenser Assembly
2	W10772621 Whirlpool Washplate Screw
3	WP3949550 Whirlpool Gasket Assembly
4	WPW10531289 Whirlpool Tub Ring
5	W10339098 Whirlpool Shield
6	W11447102 Whirlpool Agitator Assembly
7	WP8533953 Whirlpool Screw
8	WP389140 Whirlpool Drive Block or Bell
9	WP21366 Whirlpool Spanner Nut
10	W10339680 Whirlpool Wire Tie
11	W10554251 Whirlpool Basket
12	W10371566 Whirlpool Outer Tub
13	W10429200 Whirlpool Retainer
14	WPW10215093 Whirlpool Filter
15	WP8533928 Whirlpool Refrigerator Screw
16	W10780045 Whirlpool Suspension Rod
17	CLIP
18	W11085570 Whirlpool Shield
19	HARNESS, LOWER
20	WP353244 Whirlpool Hose
