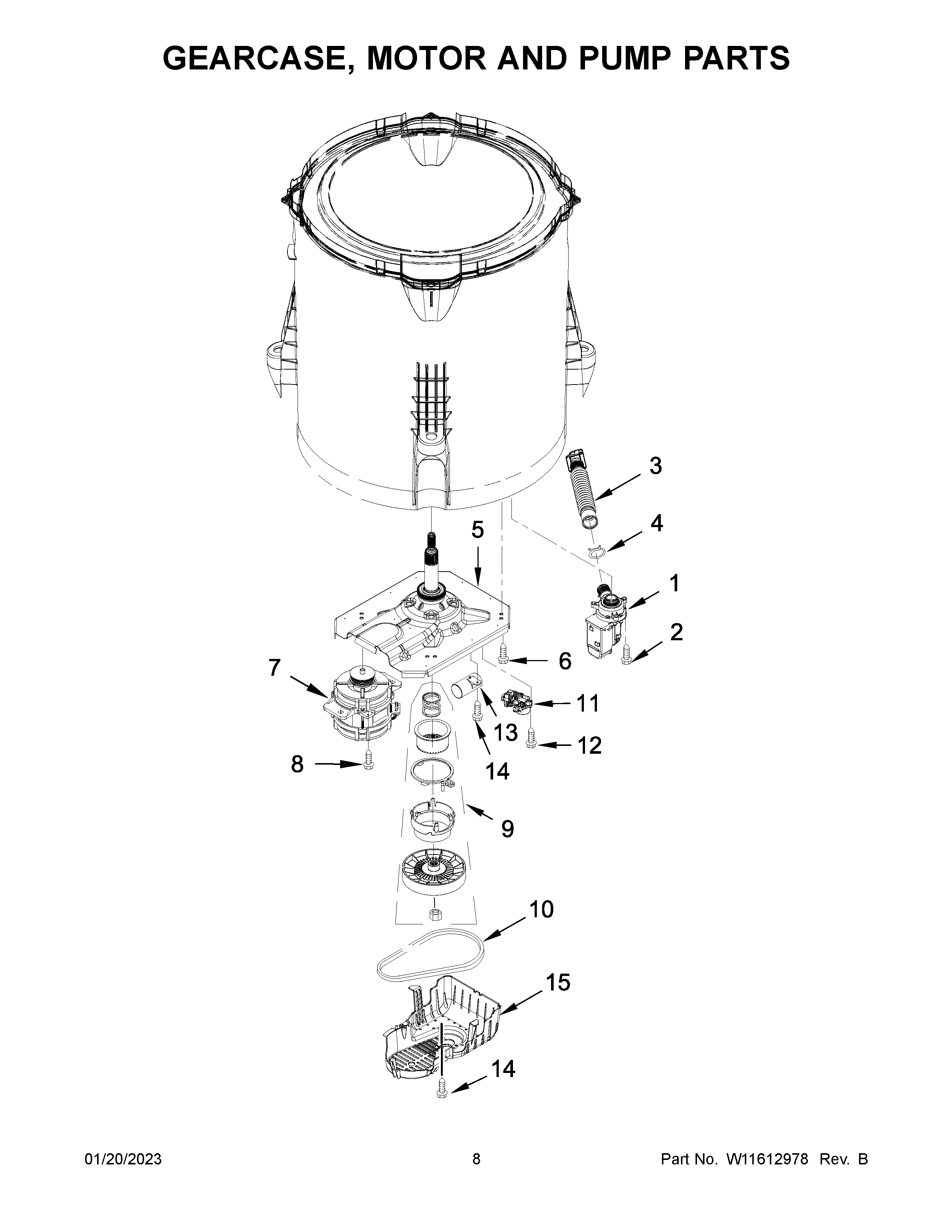

3LMVWC315FW1 05 – GEARCASE, MOTOR AND PUMP PARTS

3LMVWC315FW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

3LMVWC315FW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1WPW10292579 Whirlpool Water Pump
2WPW10004910 Whirlpool Screw
3W10899966 Whirlpool Hose Assembly
4WP285655 Whirlpool Hose Clamp
5GEARCASE (DW1)
6WPW10249633 Whirlpool Screw
7W11039788 Whirlpool Motor Drive
8W11685857 Whirlpool Screw Assembly
9W10759993 Whirlpool Cam
10WPW10006388 Whirlpool Belt
11W11511138 Whirlpool Actuator
12W11596033 Whirlpool Microwave Screw
13W11205047 Whirlpool Capacitor Assembly
14W11573574 Whirlpool Screw
15WPW10427633 Whirlpool Belt Shield
