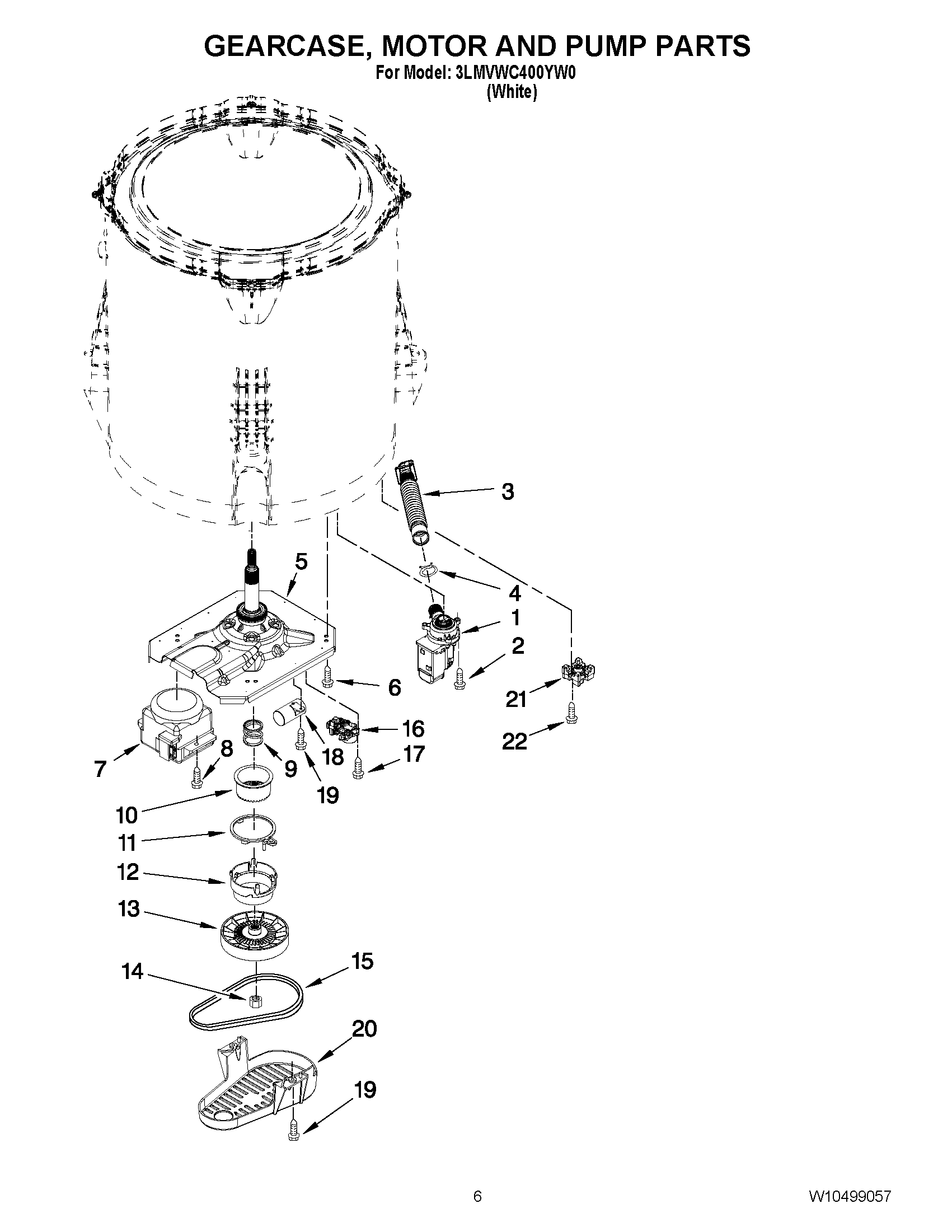

3LMVWC400YW0 04 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	PUMP ASSEMBLY, DRAIN
2	SCREW
3	MAY W10215091
4	MAY 8317496
5	MAY W10006401
6	SCREW
7	MAY W10249630
8	BOLT, COUNTERWEIGHT
9	SPRING, SPLUTCH
10	SLIDER, SPLUTCH
11	CAM RING, SPLUTCH
12	CAM, SPLUTCH
13	MAY W10246453
14	MAY W10163336
15	BELT, DRIVE
16	MAY W10249623
17	SCREW
18	MAY W10349183
19	SCREW
20	MAY W10006383
21	MAY W10238318
22	SCREW
