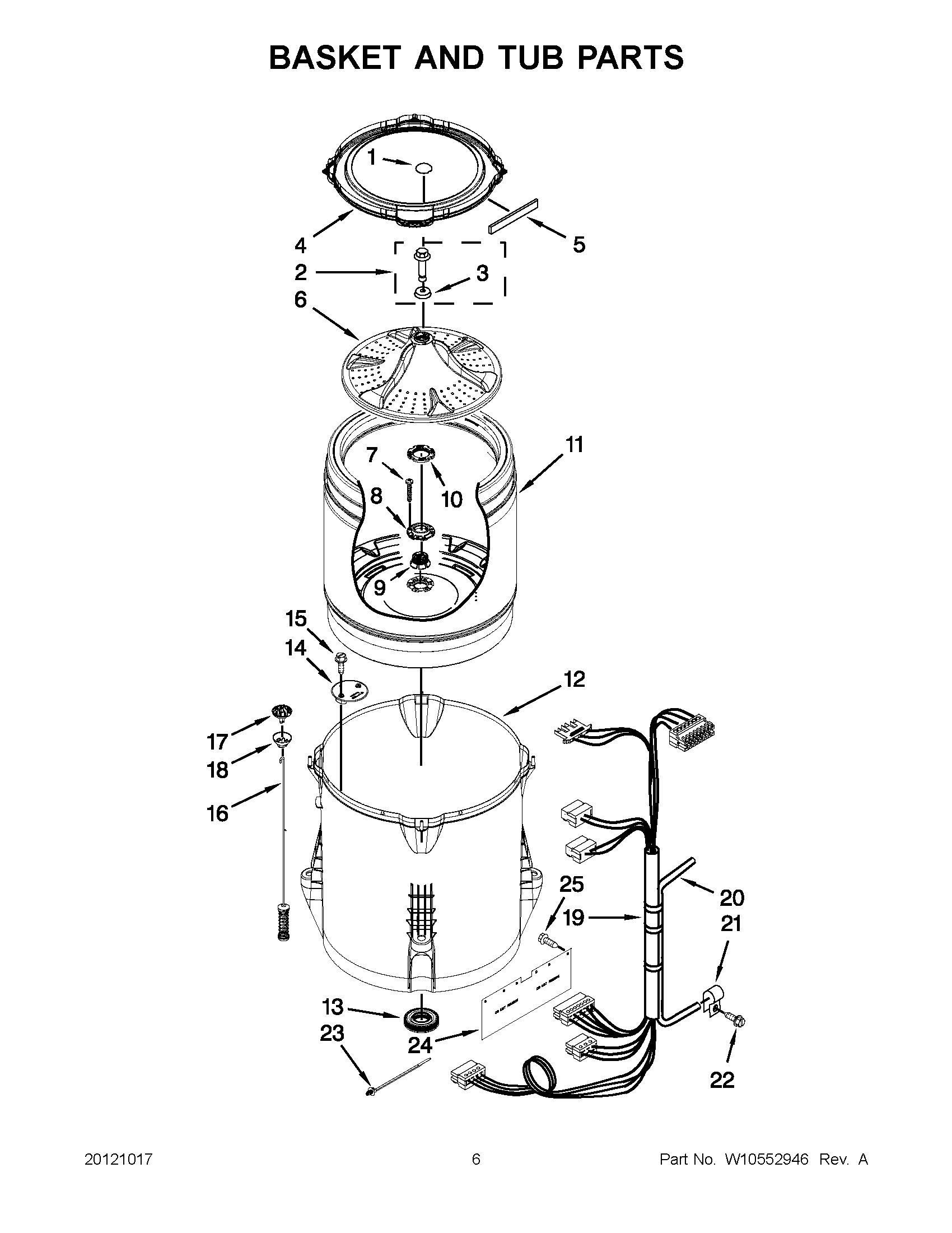

3LMVWC400YW1 03 – BASKET AND TUB PARTSadmin2025-04-26T09:16:29+00:003LMVWC400YW1 03 – BASKET AND TUB PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10305251 |
| 2 | SCREW & WASHER |
| 3 | MAY 3949550 |
| 4 | RING, TUB (INCLUDES ITEM 4) |
| 5 | MAY W10205824 |
| 6 | MAY W10215116 |
| 7 | SCREW |
| 8 | HUB - DRIVEN, BASKET (INCLUDES ITEMS 7, 9 & 23) |
| 9 | BLOCK, BASKET DRIVE (INCLUDES ITEMS 7, 8 & 23) |
| 10 | NUT, SPANNER |
| 11 | BASKET ASSEMBLY (INCLUDES ITEMS 7, 8, 9 & 23) |
| 12 | TUB |
| 13 | MAY W10006371 |
| 14 | MAY W10215093 |
| 15 | Screw |
| 16 | MAY W10257085 |
| 17 | BALL (SET OF 4 - INCLUDES SUSPENSION BUSHINGS) |
| 18 | BUSHING - UPPER (SET OF 4 - INCLUDES SUSPENSION BALLS) |
| 19 | MAY W10268821 |
| 20 | MAY W10297437 |
| 21 | CLAMP, CABLE |
| 22 | SCREW |
| 23 | MAY W10298887 |
| 24 | SHIELD, SPLASH |
| 25 | MAY W10429200 |
