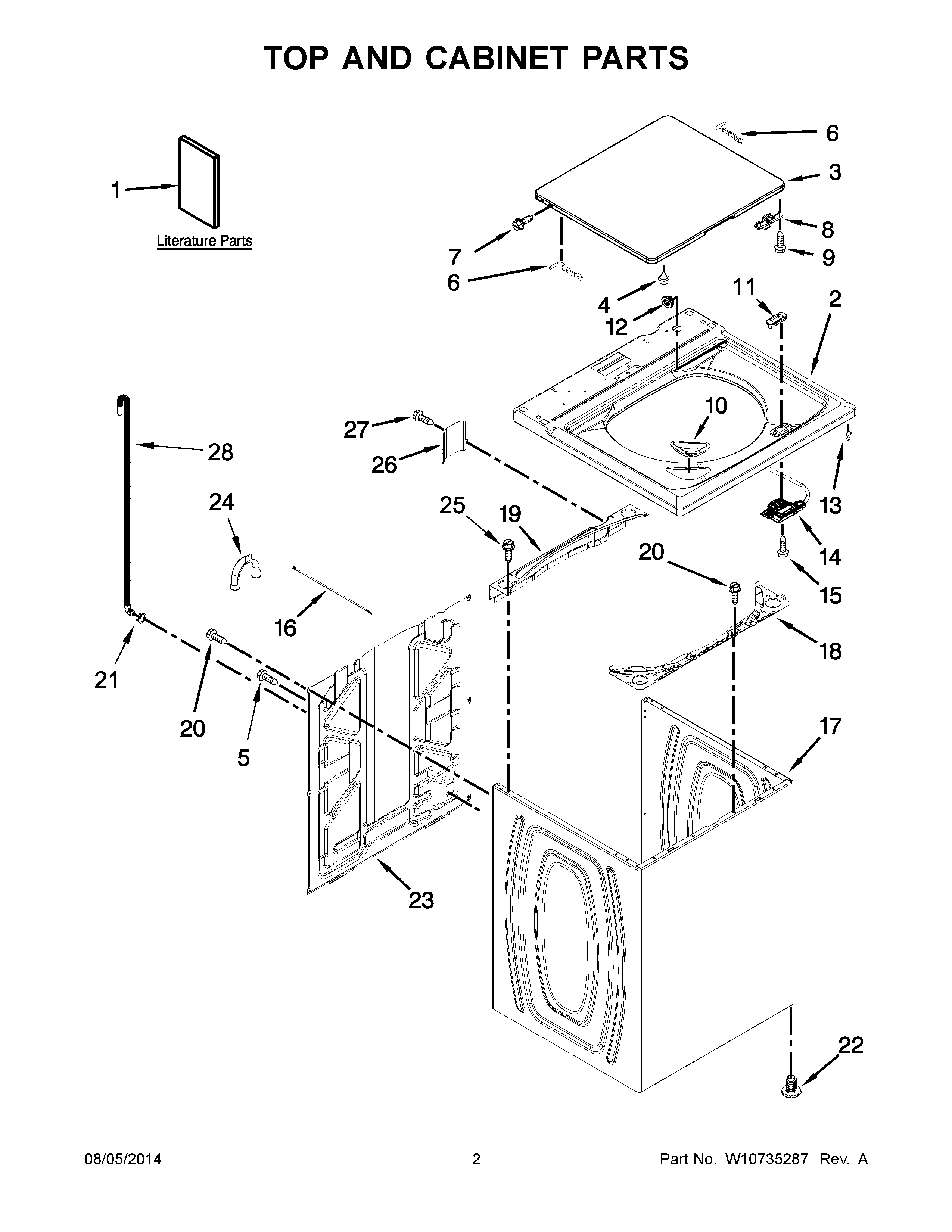

3LMVWC400YW3 02 – TOP AND CABINET PARTS

3LMVWC400YW3 02 – TOP AND CABINET PARTS

Written by

in

3LMVWC400YW3 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	MAY W10592544
1	MAY W10592554
1B	MAY W10481208
2	TOP
3	ASSEMBLY, LID (WHITE)
4	MAY 9724509
5	SCREW
6	HINGE, LID
7	Screw And Washer
8	MAY W10240513
9	SCREW
10	MAY W10192089
11	MAY W10392041
12	Hinge, Bearing (2)
13	Clip, Wire (4)
14	LOCK, LID
15	Screw
16	TIE, CABLE
17	MAY W10478060
18	MAY W10215098
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	MAY 356138
22	MAY W10397994
23	PANEL, REAR
24	MAY W10280024
25	SCREW
26	MAY W10676061
27	Screw, 10-32 x 5/8
28	HOSE, OUTER DRAIN ASSEMBLY
