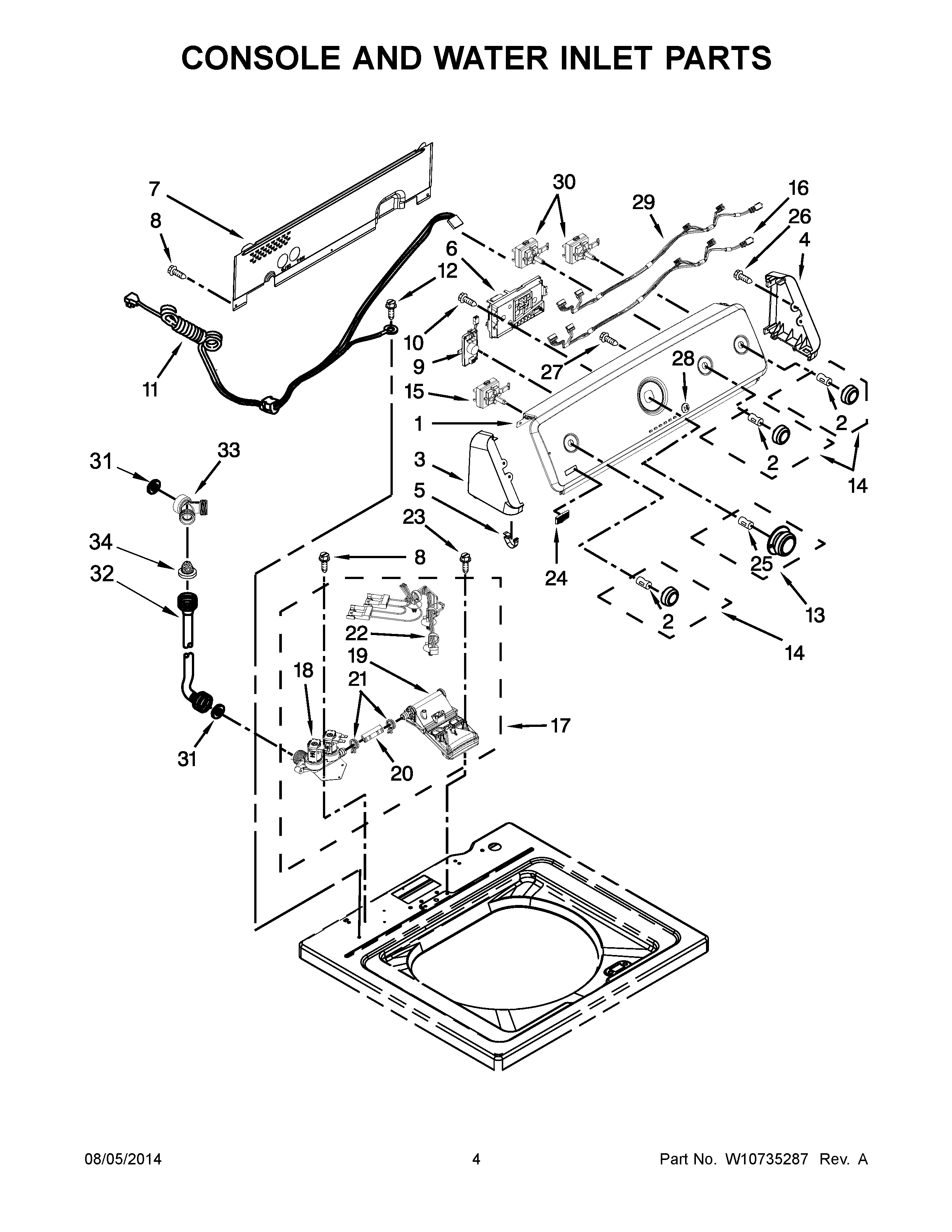

3LMVWC400YW3 03 – CONSOLE AND WATER INLET PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	10A CORD LOCK
NI	10A CORD ADAPTER (BRITISH)
NI	10A CORD ADAPTER (EUROPEAN)
1	MAY W10464667
2	CLIP, SPRING
3	END CAP (LEFT) (WHITE)
4	END CAP (RIGHT) (WHITE)
5	MAY 8312709
6	MAY W10480085
7	MAY W10420985
8	MAY W10213953
9	MAY W10522615
10	SCREW,8-18 X 3/8
11	MAY W10446856
12	Screw, 10-32 x 5/8
13	ASSEMBLY, KNOB & DIAL (GREY)
14	ASSEMBLY, CONTROL KNOB (GREY)
15	MAY W10285511
16	MAY W10291177
17	MAY W10360889
18	MAY W10356260
19	MAY W10441423
20	MAY W10238347
21	MAY W10117298
22	MAY W10474662
23	Screw
24	MAY W10323734
25	Spring, Clip Knob
26	MAY 359625
27	SCREW
28	MAY W10251309
29	MAY W10481152
30	SWITCH, ROTARY ENCODER
31	MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
32	MAY W10615809
32A	MAY W10615831
33	MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
34	Adapter, Water Inlet Hose
