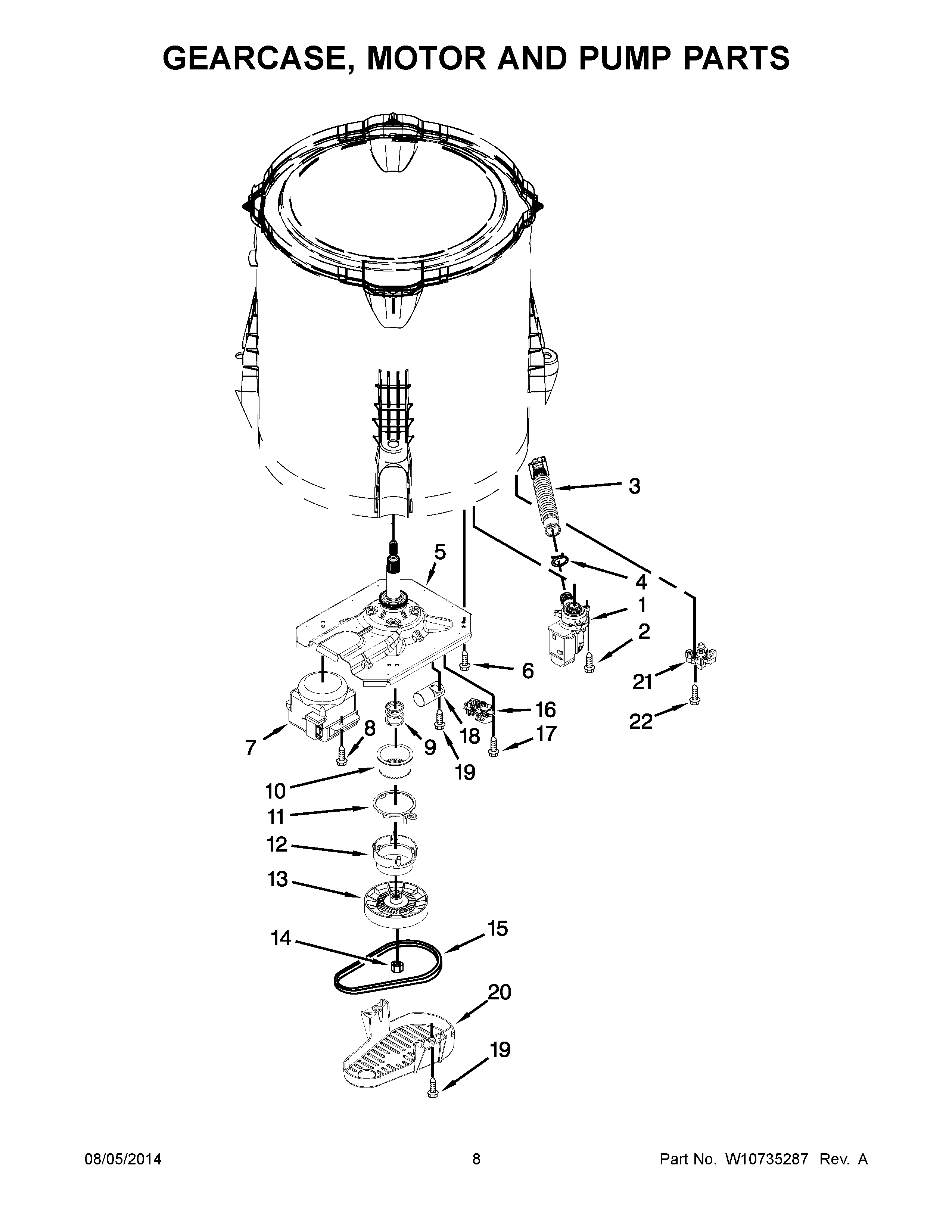

3LMVWC400YW3 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1PUMP ASSEMBLY, DRAIN
2SCREW
3MAY W10215091
4MAY 8317496
5MAY W10469846
6SCREW
7MAY W10249630
8BOLT, COUNTERWEIGHT
9SPRING, SPLUTCH
10SLIDER, SPLUTCH (INCLUDES ITEMS 9, 11, 12 AND 13)
11CAM RING, SPLUTCH
12CAM, SPLUTCH
13PULLEY
14NUT
15BELT, DRIVE
16MAY W10249623
17SCREW
18MAY W10349183
19SCREW
20MAY W10427633
21MAY W10238318
22SCREW
