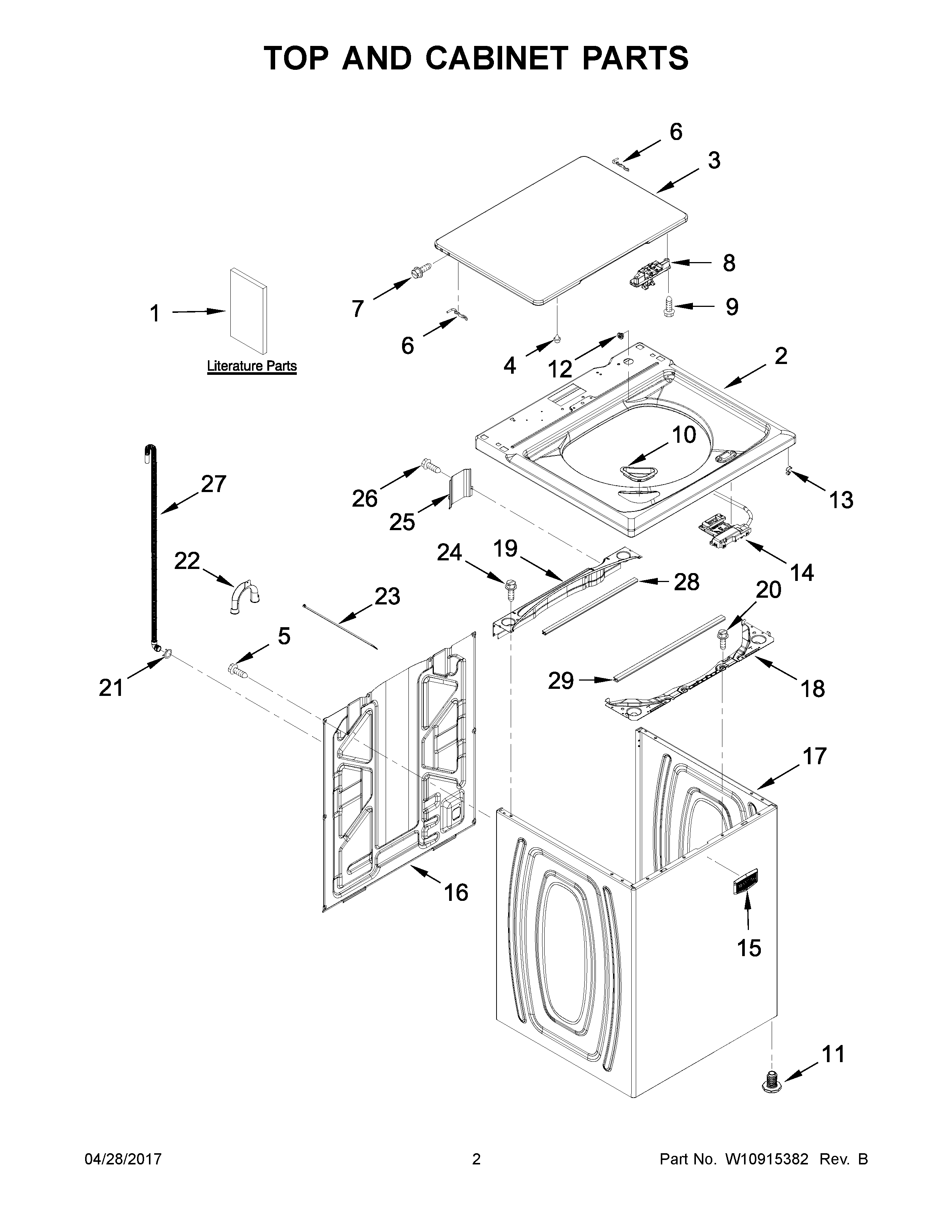

3LMVWC415FW0 02 – TOP AND CABINET PARTS

3LMVWC415FW0 02 – TOP AND CABINET PARTS

Written by

in

3LMVWC415FW0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1AINSTALLATION INSTRUCTIONS
1CENERGY GUIDE
1BOWNERS MANUAL
1TECH SHEET
2MAY W10686433
3LID & BUMPER ASSEMBLY (WHITE)
4MAY 9724509
5SCREW
6HINGE, LID
7Screw And Washer
8MAY W10714899
9SCREW
10MAY W10192089
11FOOT ASSEMBLY, LEVELING
12Hinge, Bearing (2)
13Clip, Wire (4)
14LATCH, LID LOCK ASSEMBLY
15BADGE
16PANEL, REAR
17MAY W10478060
18MAY W10215098
19BRACE, CABINET TOP – REAR
20MAY 1157158
21MAY 356138
22MAY W10280024
23TIE, CABLE
24SCREW
25MAY W10676061
26Screw, 10-32 x 5/8
27HOSE, OUTER DRAIN ASSEMBLY
28BRACE-GUARD, CABINET REAR TOP
29BRACE-GUARD, CABINET FRONT TOP
