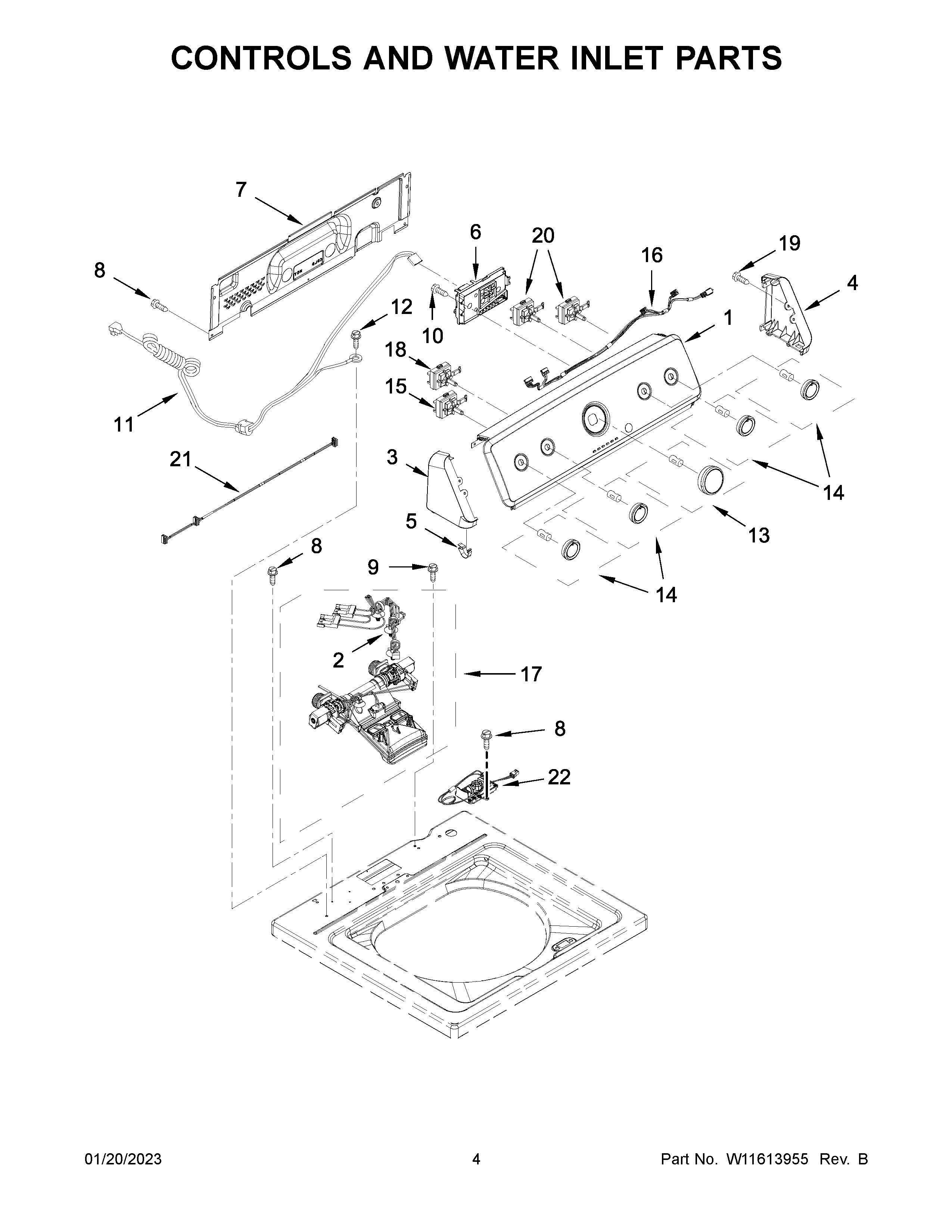

3LMVWC415FW1 03 – CONTROLS AND WATER INLET PARTS

3LMVWC415FW1 03 – CONTROLS AND WATER INLET PARTS

Written by

in

3LMVWC415FW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NICORD ADAPTER, EUROPEAN
NIWPW10476820 Whirlpool Adapter
NI10A CORD LOCK
NIWPW10476822 Whirlpool Adapter
NIWPW10475423 Whirlpool Adapter
NICABINET (NOT A SERVICEABLE PART)
1PANEL, CONSOLE
2W11038628 Whirlpool Valve Assembly
3END CAP (LEFT) (WHITE)
4END CAP (RIGHT) (WHITE)
5WP8312709 Whirlpool Endcap Clip
6W11608086 Whirlpool Electronic Control Board + Core
7WPW10461159 Whirlpool Rear Panel
8W11568617 Whirlpool Screw
9WPW10213953 Whirlpool Screw
10WP90767 Whirlpool Screw
11W10834290 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13WPW10558463 Whirlpool Knob Assembly
14WPW10562155 Whirlpool Knob
15WPW10285517 Whirlpool Cycle Switch
16W10694685 Whirlpool Wire Harness
17HARNESS, VALVE
18WPW10285512 Whirlpool Cycle Switch
19W11693756 Whirlpool Screw Assembly
20WPW10285511 Whirlpool Cycle Switch
21W10694669 Whirlpool Wire Harness
22W11660637 Whirlpool Filter
