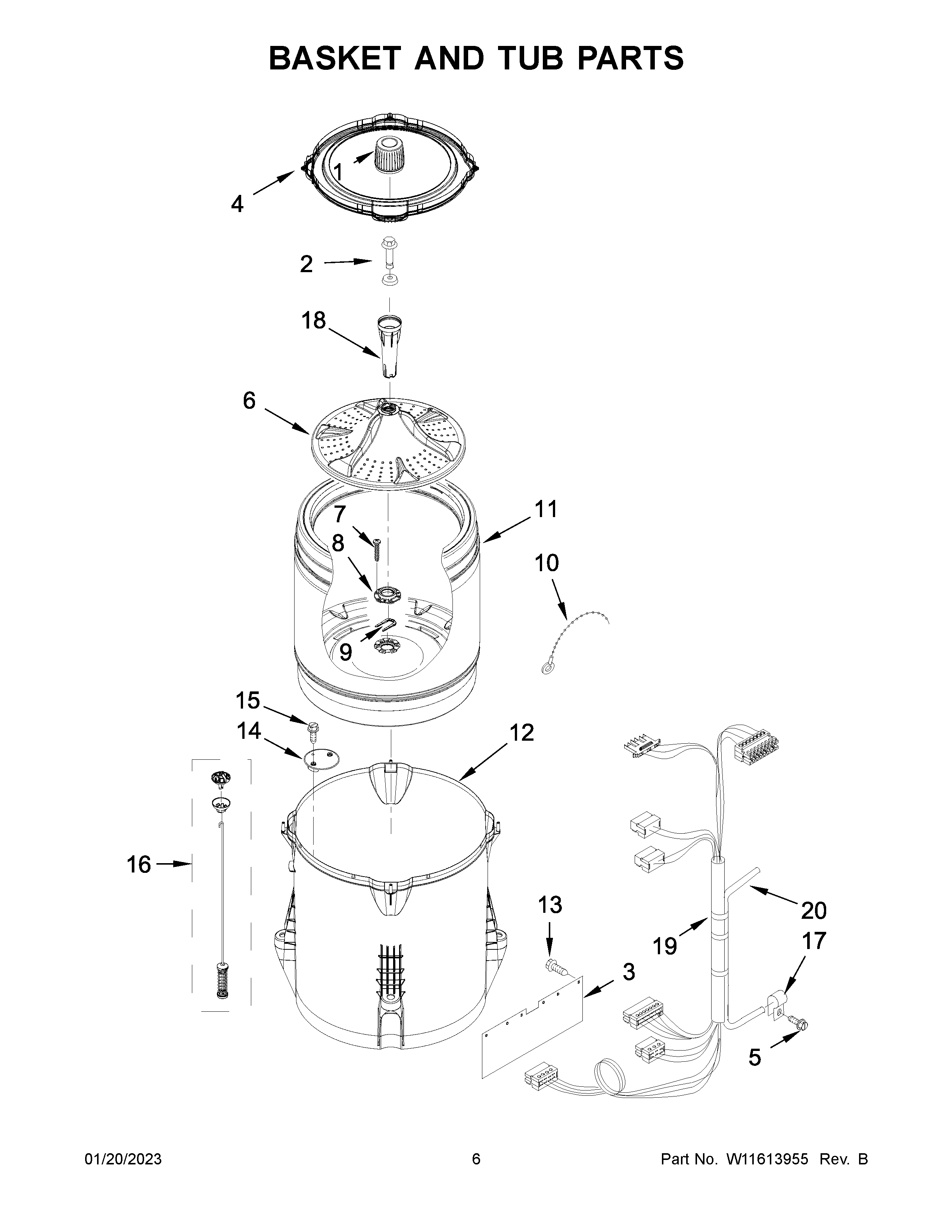

3LMVWC415FW1 04 – BASKET AND TUB PARTS

3LMVWC415FW1 04 – BASKET AND TUB PARTS

Written by

in

3LMVWC415FW1 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W10863011 Whirlpool Dispenser Assembly
2W11223765 Whirlpool Screw
3W10339098 Whirlpool Shield
4WPW10556325 Whirlpool Tub Ring
5WPW10109200 Whirlpool Screw
6W10846191 Whirlpool Washplate
7WP8533953 Whirlpool Screw
8W10528947 Whirlpool Washer Drive Hub Assembly
9RETAINER
10WPW10298887 Whirlpool Wire Tie Assembly
11W10521298 Whirlpool Basket
12W10324648 Whirlpool Outer Tub
13W10429200 Whirlpool Retainer
14WPW10215093 Whirlpool Filter
15WP8533928 Whirlpool Refrigerator Screw
16W10780044 Whirlpool Suspension Assembly
17W10005430 Whirlpool Clamp
18W10836496 Whirlpool Agitator
19HARNESS, LOWER
20WP353244 Whirlpool Hose
