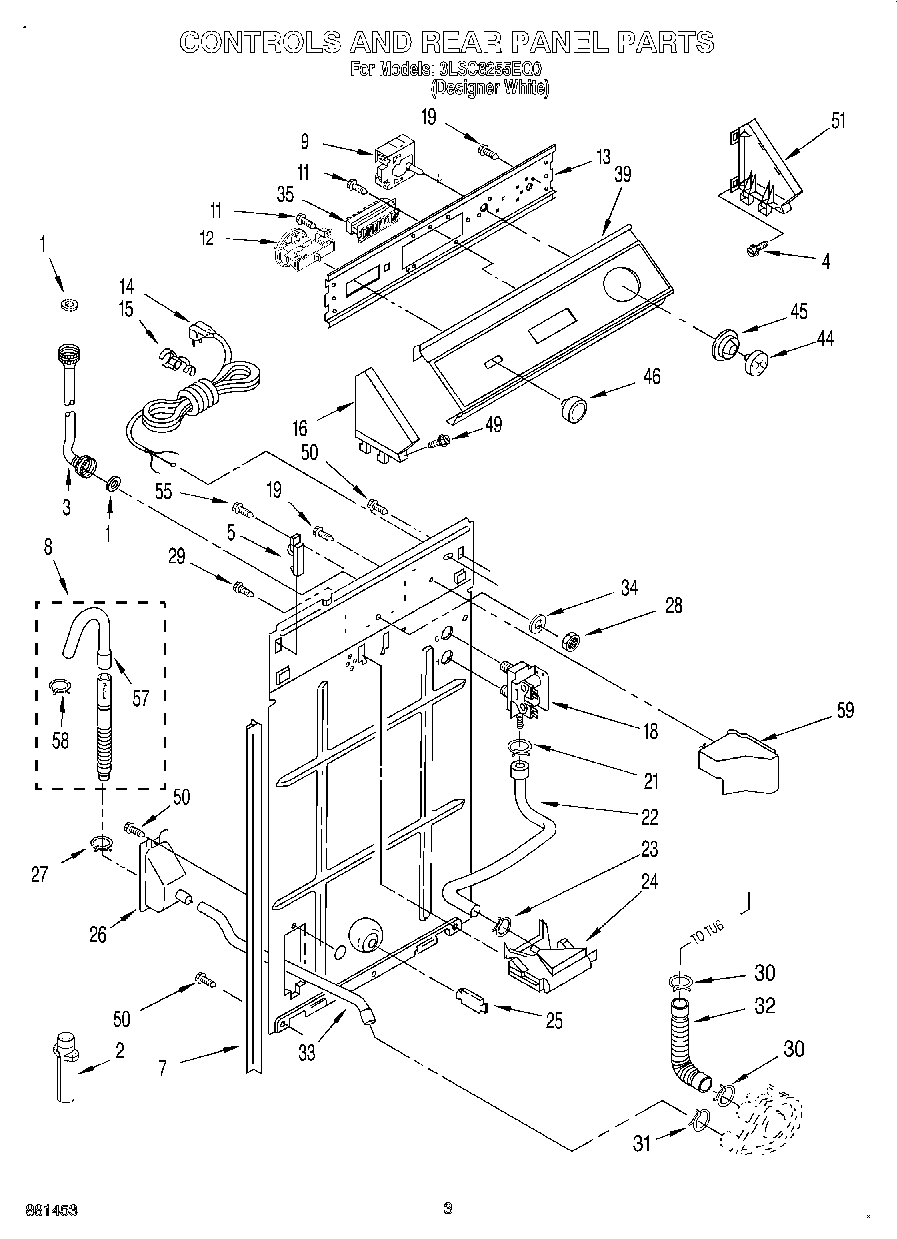

3LSC8255EQ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	3363920A Whirlpool Adapter Assembly
3	WPW10489643 Whirlpool Fill Hose
4	WP90767 Whirlpool Screw
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
9	Timer, Control (50 Hz.) (Motor Not A Service Part)
11	W10915367 Whirlpool Screw Assembly
12	Switch, Water Level (For Designer White Model)
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
18	WP3360397 Whirlpool Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
28	W10080180 Whirlpool Nut
29	WP308544 Whirlpool Screw
30	WP616099 Whirlpool Clamp
31	WP356138 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Hose, Pump To Drain
34	Washer (2)
35	Switch, Touch-Pad (7) (For Designer White Model)
39	Panel, Console (For Designer White Model)
44	W10807860 Whirlpool White Control Knob
45	WP3957841 Whirlpool Dial
46	WP3957796 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.)
55	WP308685 Whirlpool Microwave Screw
57	WP3357027 Whirlpool Nozzle Assembly
58	WP3357331 Whirlpool Clamp
59	Shield, Inlet
