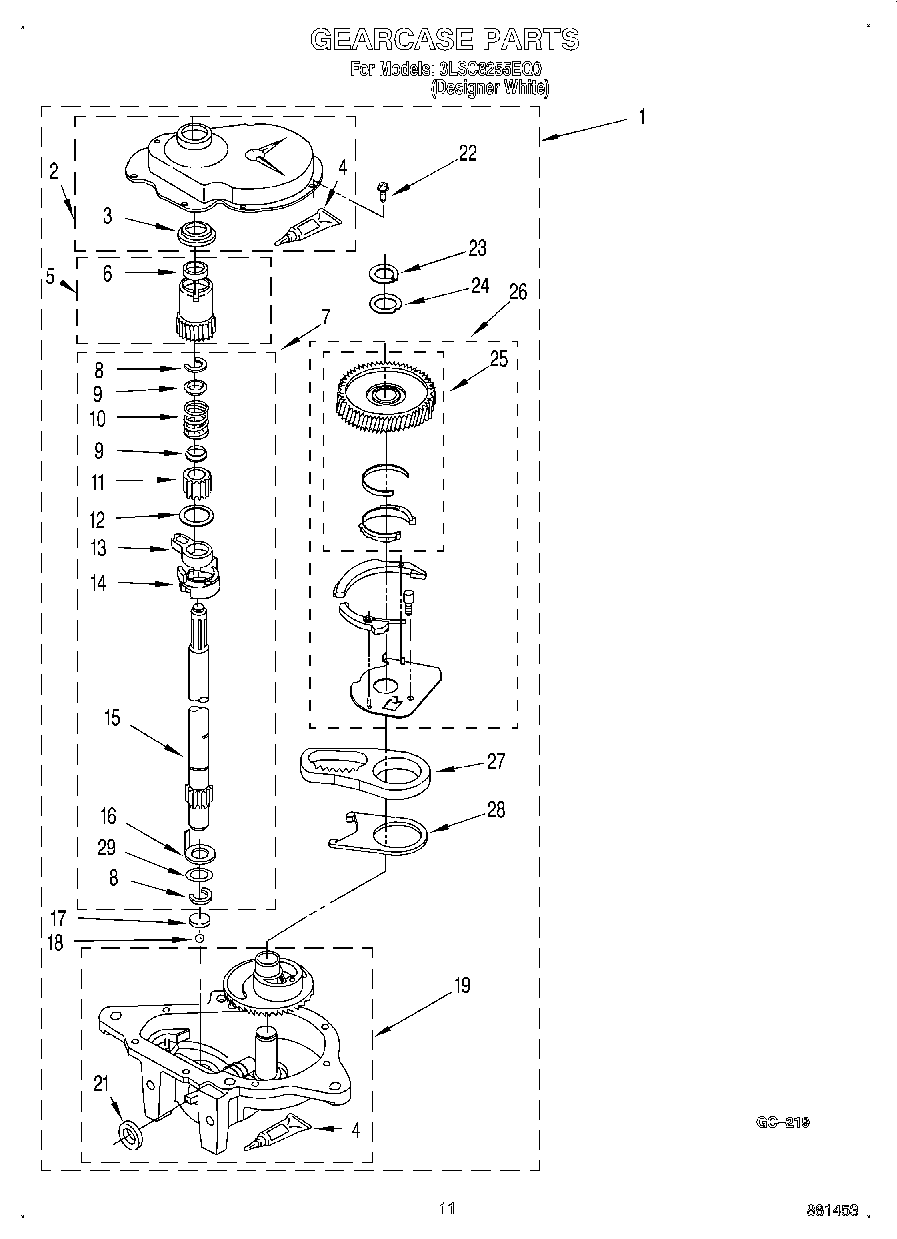

3LSC8255EQ0 08 – GEARCASE

3LSC8255EQ0 08 – GEARCASE

Written by

in

3LSC8255EQ0 08 – GEARCASE

Products

PositionProduct
2285202 Whirlpool Cover Assembly
3WP3349985 Whirlpool Shaft Seal
4WP285195 Whirlpool Sealer Assembly
6WP356427 Whirlpool Shaft Seal
8Ring, Retaining (2)
962677 Whirlpool Retainer
10Spring, Agitator
1262619 Whirlpool Washer
15WP389387 Whirlpool Agitator Shaft
16Washer, Cam Thrust
17285205 Whirlpool Bearing
193363395 Whirlpool Gearcase
21285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
22WP3351614 Whirlpool Screw
23Ring, Retaining
24Washer Kit, Thrust
25WPW10233584 Whirlpool Spin Gear
26NEUTRL-PAK
273360629 Whirlpool Washer Gearcase Transmission
29WP388815 Whirlpool Washer
