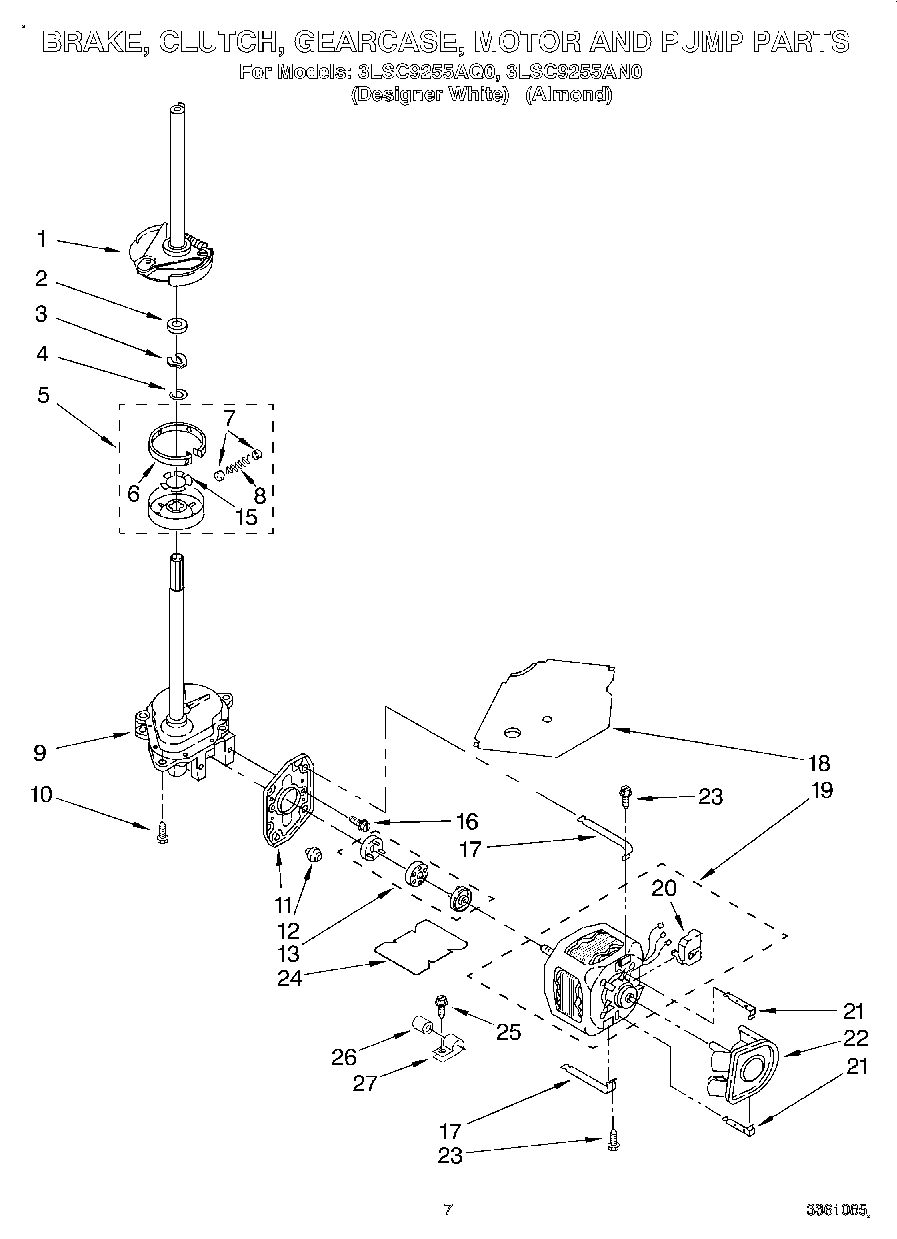

3LSC9255AN0 05 – BRAKE, CLUTCH, GEARCASE, MOTOR & PUMP

Products

Position	Product
1	W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2	WP63292 Whirlpool Washer
3	WPW10080230 Whirlpool Ring
4	285353 Whirlpool Ring
5	285785 Whirlpool Washer Direct Drive Clutch
7	WP62646 Whirlpool Cap
8	285790 Whirlpool Washer Clutch Band and Lining Kit
9	3363395 Whirlpool Gearcase
11	WP62611 Whirlpool Plate
12	WP62691 Whirlpool Grommet
13	285753A Whirlpool Washer Direct Drive Motor Coupling
15	Clip, Anti-Rattle
16	WP3400516 Whirlpool Screw
17	WPW10086010 Whirlpool Motor Retainer Clip
18	W10838408 Whirlpool Motor Shield
19	Motor, Main Drive
20	Switch, Main Drive Motor
21	WP8546127 Whirlpool Retainer Clip
22	WP3363394 Whirlpool Washer Drain Pump
23	WP273556 Whirlpool Screw
24	WP3946532 Whirlpool Shield
25	WP3390631 Whirlpool Screw
26	CAPACITOR
27	357030 Whirlpool Clamp
