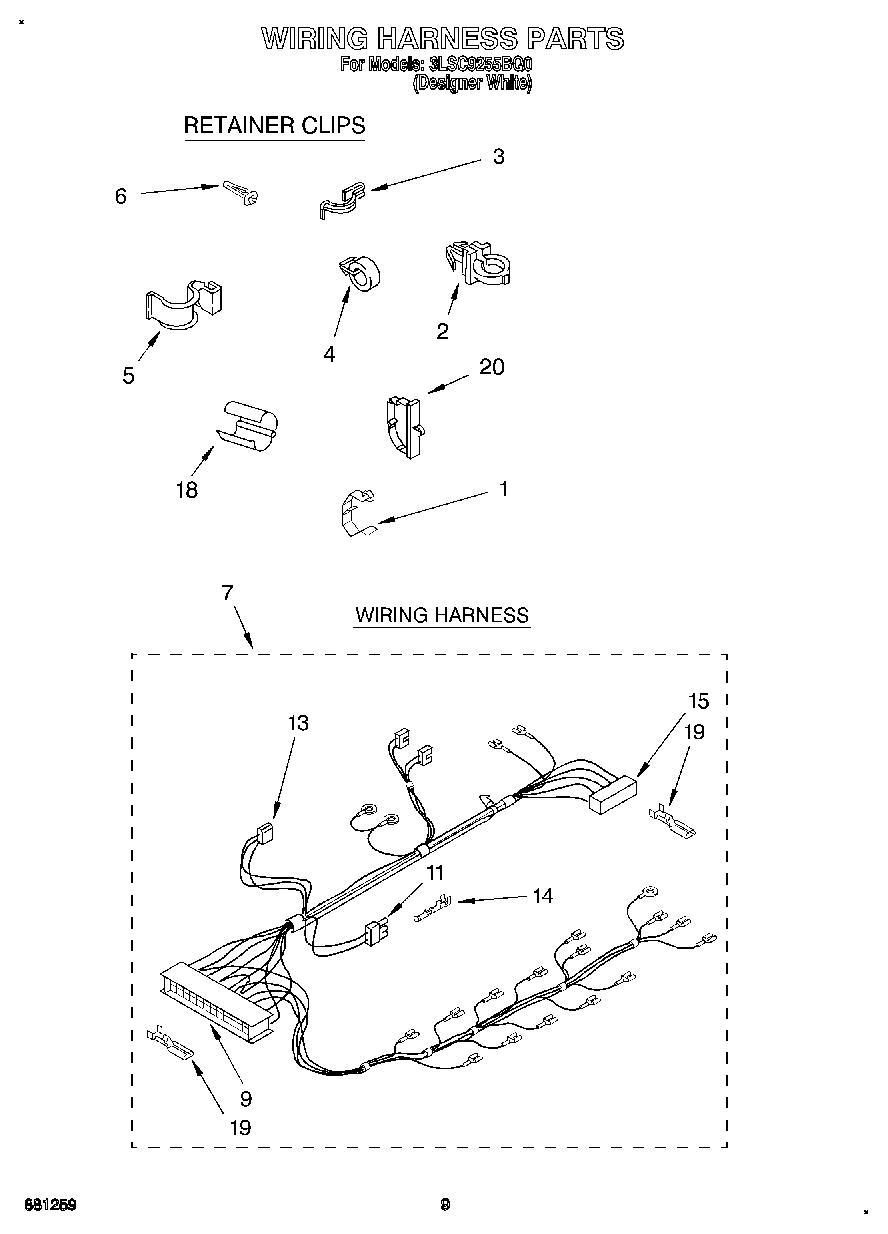

3LSC9255BQ0 07 – WIRING HARNESS

Products

Position	Product
1	Clip, Harness
2	Clip, Harness
3	8528351 Whirlpool Clip
4	8559320 Whirlpool Clip
5	WP90016 Whirlpool Clip
6	Clip, Harness
7	Wiring Harness
9	W10876590 Whirlpool Connector
11	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
13	Plug, Terminal (4-Way) (Power Cord) (Use M3 Screws)
14	WP596797 Whirlpool Terminal
15	WP62505 Whirlpool Connector
18	Protector, Harness
19	Terminal
20	Clip, Harness
